1864 (144-684-100) - Cub Cadet Garden Tractor (SN: 836001 - 880000) Upper Steering Parts Diagram

Garden Tractor

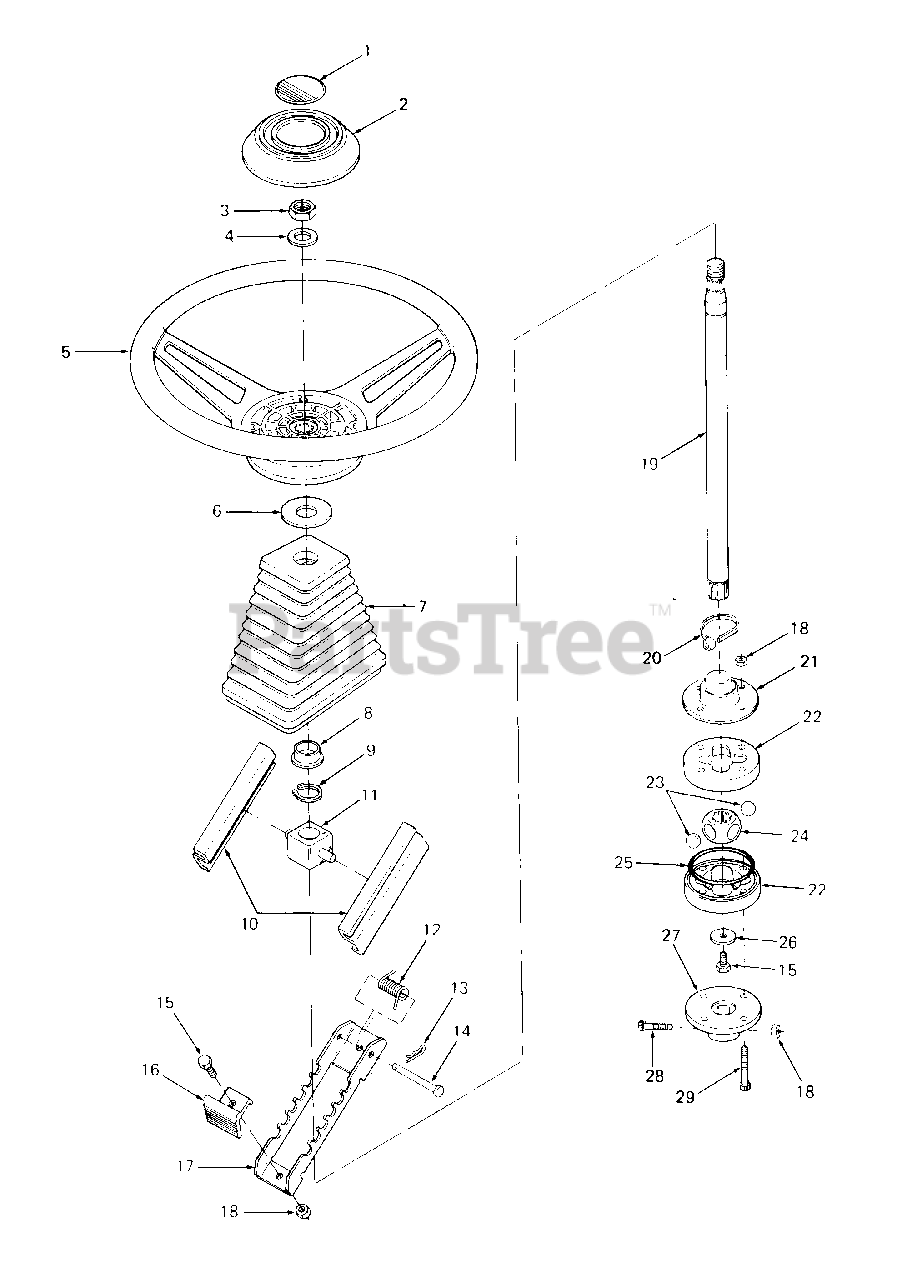

Upper Steering Parts Diagram

  • Title

1

Cub Cadet 779-3599

Label, Steering Cap

$

$

Not available

2

Cub Cadet 731-3104

Cap, Steering Wheel

$

$

Not available

3

Cub Cadet 712-3056

Nut, Hex Jam, 5/8-18

$4.99

$

In Stock, Qty 13

0

4

Cub Cadet 736-0187

Washer, Flat, .640 X 1.24 X.06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 731-3103

Wheel, Steering

$

$

Not available

6

Cub Cadet 736-3094

Washer, Flat, .758 X 2.0 X.030 Thk
(Superseded to 936-3094)

$

$

Not available

7

Cub Cadet 735-3028

Boot, Steering Shaft

$

$

Not available

Cub Cadet 732-3066

Retainer, Boot

$

$

Not available

8

Cub Cadet 741-0338

Bearing, Flange

$9.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 716-0101

Ring, Snap

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 731-3093

Guide

$

$

Not available

11

Cub Cadet 731-3094

Bushing, Shaft Guide

$

$

Not available

12

Cub Cadet 732-3064

Spring-Tilt, Torsion

$

$

Not available

13

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 711-3295

Pin, Clevis, .25 Dia X 2.38 Lg
(Superseded to 911-3295)

$

$

Not available

15

Cub Cadet 710-3013

Screw., Hex Cap, 1/4-20 X.50 Lg GR5

$4.99

$

In Stock, Qty 11

0

16

Cub Cadet 731-3107

Button, Tilt Control
(Superseded to 931-3107)

$

$

Not available

17

Cub Cadet 703-1805

Plate, Tilt Control

$

$

Not available

18

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 738-3080

Shaft, Upper Steering, 16.75 Lg

$

$

Not available

20

Cub Cadet 725-0157

Strap, Tie 1

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 735-3029

Boot, Coupling

$

$

Not available

Cub Cadet 737-3023

Grease: CV Polyrex

$

$

Currently unavailable

22

Cub Cadet 748-3030A

Coupling, Drive w/O-Ring Groove

$

$

Not available

23

Cub Cadet 723-3022

Ball, Steel, 5/8 Dia Chrome

$6.99

$

In Stock, Qty 18

0

24

Cub Cadet 748-3029

Hub, Drive 1

$

$

Not available

25

Cub Cadet 721-3025

O-Ring, 2.489 X.070

$

$

Not available

26

Cub Cadet 736-3092

Washer, Flat, .265 X 1.0 X .030 Thk HDN

$3.99

$

In Stock, Qty 9

0

27

Cub Cadet 748-3033

Adapter, Steering

$

$

Not available

28

Cub Cadet 710-3213

Screw, Socket Hd Cap, 1/4-20 X 1. 12 Lg

$

$

Not available

29

Cub Cadet 710-3211

Screw, Socket Hd Cap, 1/4-20 X 1.75 Lg

$5.49

$

Usually ships in 3-6 days

0
