1863B - Grass Handler Lawn Tractor (1985) (J.C. Penney) Parts Parts Diagram

Lawn Tractor

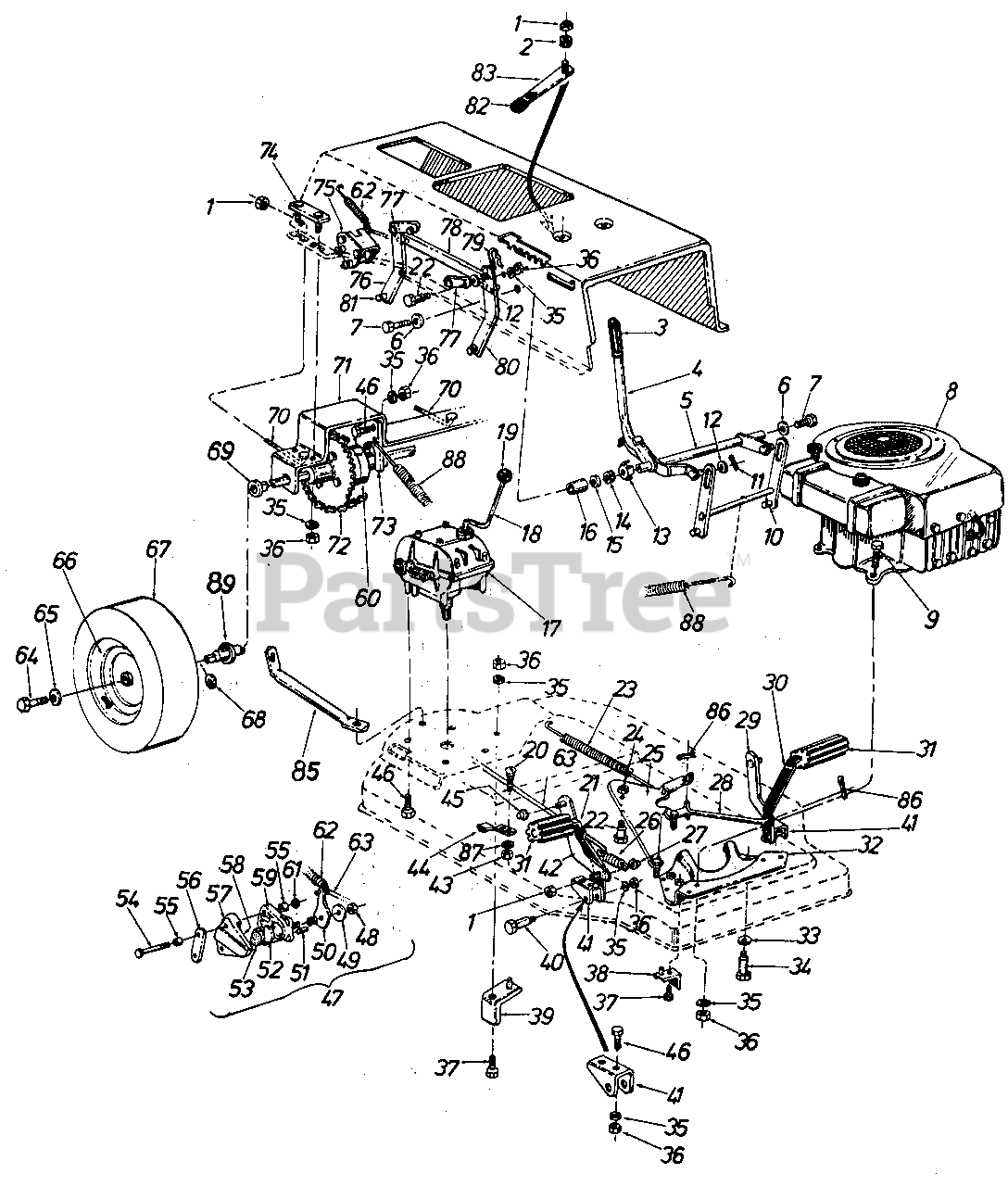

Parts Parts Diagram

  • Title

1

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

2

MTD 735-0126

Rubber Wash. .33 I.D. x .87
(Superseded to 735-0126A)

$

$

Not available

3

MTD 08118

Grip Finger-Black
(Superseded to 920-0233)

$

$

Not available

4

MTD 749-0212

Lift Handle-R.H.

$

$

Currently unavailable

5

MTD 13630

Lift Handle Brkt. Ass'y.

$

$

Currently unavailable

6

MTD 736-0219

Belleville Wash. .40 I.D. x 1.13 O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

8

Engine

$

$

Not available

9

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

10

MTD 15947

Lockout Link Ass'y.

$

$

Not available

11

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00"

$3.99

$

Usually ships in 3-6 days

0

12

MTD 736-0192

Fl-Wash. .531 I.D. x .93 O.D.

$4.49

$

In Stock, Qty 8

0

13

MTD 11029

Handle Pivot Brkt.

$

$

Not available

14

MTD 735-0195

Rubber Wash.

$

$

Not available

15

MTD 736-0237

Flat-Wash .

$4.49

$

In Stock, Qty 20+

0

16

MTD 748-0273

Spacer .632 I.D. x .88 O.D.

$

$

Not available

17

MTD 717-0806

Three Speed Trans.-Comp.

$

$

Currently unavailable

18

MTD 747-0172

Shift Lever

$

$

Not available

19

MTD 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

20

MTD 710-0134

Carr. Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

21

MTD 14219

Brake Pedal Ass'y.

$

$

Currently unavailable

22

MTD 738-0140

Shld. Scr. .431 Dia. x .18"

$5.99

$

In Stock, Qty 15

0

23

MTD 732-0191

Spring (Idler) .75 O.D. x 11.0" Lg.

$

$

Not available

24

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

25

MTD 12446

Idler Brkt. Ass'y.

$

$

Currently unavailable

26

MTD 732-0245

Brake Spring

$

$

Not available

27

MTD 726-0100

Push Nut 3/8" Dia. Rod

$4.49

$

In Stock, only 3 left!

0

28

MTD 11061

Clutch Rod

$

$

Currently unavailable

29

MTD 11057

Clutch Lockout Lever Ass'y.

$

$

Not available

30

MTD 14220

Clutch Pedal Ass'y.

$

$

Currently unavailable

31

MTD 735-0201

Foot Pad

Note: (Clutch and Brake)

$

$

Not available

32

MTD 12654

Engine Belt Guard Ass'y.

Variations

MTD 12654-0637

No Longer Available GUARD ASM - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 736-0105

Bell-Wash. .400 I.D. x .88

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-0215

Shld. Bolt .498 Dia. x 3.00"
(Superseded to 738-0215A)

Note: (30" Deck)

$9.49

$

Usually ships in 3-6 days

0

MTD 738-0411

Shld. Bolt .498 Dia. x 3.25"

Note: (34" Deck)

$

$

Currently unavailable

35

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0259

Hex Sems Scr. 5/16-18 x .62" Lg.*

$

$

Not available

38

MTD 12160

Belt Keeper Ass'y.

$

$

Not available

39

MTD 10426

Belt Keeper Ass'y.

$

$

Not available

40

MTD 738-0213

Shld. Bolt .498 Dia. x 1.450"

$7.99

$

In Stock, only 2 left!

0

41

MTD 11039

Pedal "U" Brkt. Ass'y.

$

$

Not available

42

MTD 11056

Parking Brake Lever Ass'y.

$

$

Currently unavailable

43

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

44

MTD 761-0174

Blade Brake Ass'y.

$

$

Not available

45

MTD 726-0121

Push Cap .250 Dia.

$

$

Not available

46

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

47

MTD 761-0130

Disc Brake Ass'y.-Comp.

$

$

Not available

48

MTD HH-02-03631

Hex Lock Nut
(Superseded to 912-0237)

$

$

Not available

49

MTD HH-03-03032

Washer
(Superseded to 736-3089)

$

$

Not available

50

MTD HH-18-03493

Cam Lever

$

$

Not available

51

MTD HH-05-03034

Push Pin

$

$

Not available

52

MTD HH-03-03303

Disc Backup

$

$

Not available

53

MTD HH-15-02124

Friction Pad 1.110" Dia. x .472 Thk.

$

$

Not available

54

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg

$4.49

$

In Stock, only 2 left!

0

55

MTD 761-0133

Spacer for Disc Brake .322 I.D. x .38" Lg.

$

$

Not available

56

MTD 11010

Brake Plate

$

$

Not available

57

MTD HH-12-03292

Casting-Carrier Side

$

$

Not available

58

MTD HH-15-03149

Friction Pad 1.110" Dia. x .245 Thk.

$

$

Not available

59

MTD HH-12-03292

Casting-Cam Side

$

$

Not available

60

MTD 717-0318

Differential Ass'y. Comp.

$

$

Not available

61

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

62

MTD 732-0157

Spring .380 O.D. x 8.25n Lg.

Note: (Brake Return)

$14.99

$

Usually ships in 3-6 days

0

63

MTD 747-0107

Brake Rod .250 Dia. x 24.12" Lg.

$

$

Not available

64

MTD 710-0627

Hex Scr. w/Lock 5/16-24 x .750" Lg.

$4.49

$

In Stock, Qty 20+

0

65

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

66

Rear Wheel-Rim Ass'y.

$

$

Not available

MTD 734-1183

Rim Only-10.5 x 4

Note: (Front)

$

$

Not available

MTD 734-0521

Rim Only-15 x 6

$

$

Not available

MTD 734-0594

Rim Only-16 x 6.5
(Superseded to 634-0138)

Variations

MTD 734-0594-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$67.99

$

Usually ships in 3-6 days

0

MTD 734-0594-0629

RIM ASSEMBLY-8 X 5 - SILVER FLAKE (0629)

$67.99

$

Usually ships in 3-6 days

0

MTD 734-0594-0662

RIM ASSEMBLY-8 X 5 - OYSTER GRAY (0662)

$67.99

$

Usually ships in 3-6 days

0

MTD 734-0594-0674

No Longer Available RIMASSEMBL - YARDMAN YELLOW (0674)

$

$

Not available

$141.99

$

Usually ships in 3-6 days

0

67

Rear Wheel-Tire Only

$

$

Not available

MTD 734-1185

Tire Only 10.5 x 4
(Superseded to 734-1598-0901)

Note: (Front)

$119.99

$

Usually ships in 3-6 days

0

MTD 734-0427

Tire Only-15 x 6
(Superseded to 734-1731-0901)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0275

Tire Only-16 x 6.5

Variations

MTD 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)

$

$

Not available

MTD 734-0275-0905

TIRE-16X6.5 - Duro (0905)

$

$

Not available

MTD 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

68

MTD 736-0134

Fl-Wash.

$4.49

$

In Stock, Qty 10

0

69

MTD 741-0199

Flange Brg.
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

70

MTD 710-0437

Chain Adj. Link 5/16-18 Thd

$

$

Not available

71

MTD 11009

RearAxle Brkt.

$

$

Not available

72

MTD 713-0104

#41 Chain 1/2" Pitch x 65 Links

$

$

Not available

MTD 713-0723

Master Link 1/2" Pitch
(Superseded to 913-0723)

$

$

Not available

73

MTD 10364

Rear Axle Plate

$

$

Currently unavailable

74

MTD 10360

Axle Bolt Plate Ass'y.

$

$

Not available

75

MTD 11011

Disc Brake Brkt. Ass'y.

$

$

Not available

76

MTD 11024

Deck Link

$

$

Not available

77

MTD 09721

Pivot Link Ass'y.

$

$

Not available

78

MTD 11014

Connecting Lift Brkt.

$

$

Currently unavailable

79

MTD 714-0101

Int. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

80

MTD 11023

Deck Link Ass'y.

$

$

Not available

81

MTD 711-0332

Lift Brkt. Pin
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 18

0

82

MTD 11249

Ht. Adj. Knob

$

$

Currently unavailable

83

MTD 11027

Handle Stop Brkt. Ass'y.

$

$

Not available

85

MTD 749-0469

Reinforcement Brkt.

$

$

Currently unavailable

86

MTD 714-0474

Cot-Pin 1/8n Dia. x 3/4" Lg.

$4.99

$

In Stock, Qty 14

0

87

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

88

MTD 732-0440

Spring 14.25n Lg.

$26.99

$

Usually ships in 3-6 days

0

89

MTD 750-0345

Spacer .758 I.D. x .99 O.D.

$

$

Not available
