1863 (14A-664-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Transmission - Rear And Adapter Housings Parts Diagram

Garden Tractor

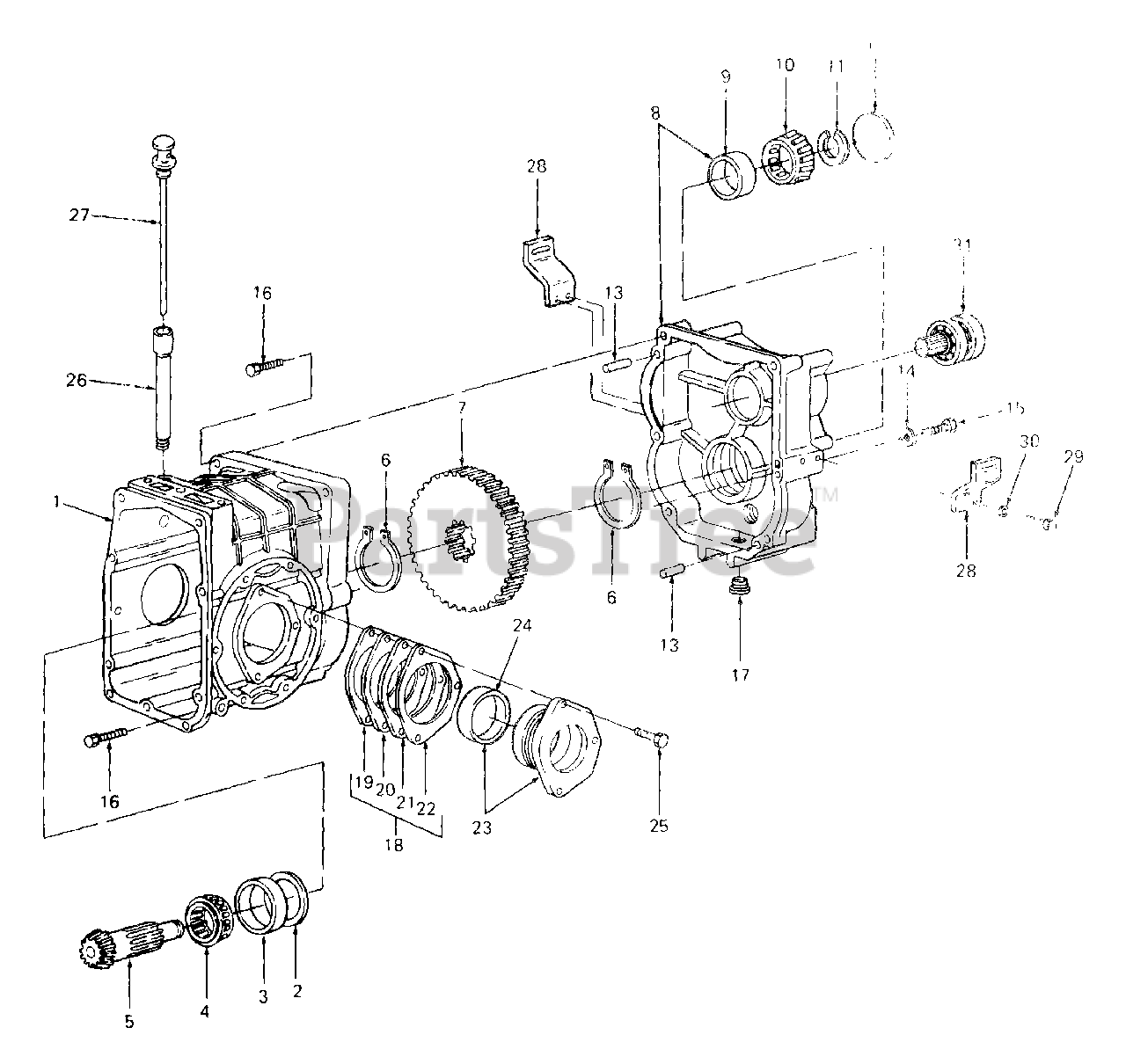

Transmission - Rear And Adapter Housings Parts Diagram

  • Title

1

Cub Cadet 717-3204A

Housing Assy, Rear Transaxle

Note: (Includes Ref No. 2 & 3)

$

$

Not available

Cub Cadet 723-3034

Gasket, Eliminator, 24 cc Tube

$

$

Not available

Cub Cadet 723-3036

Primer, Gasket, 6 oz Can

$

$

Currently unavailable

Cub Cadet 723-3035

Remover, Gasket, 12 oz Can

$

$

Currently unavailable

2

Cub Cadet 717-3123

Shim, Rear Bearing Cup, .004 Thk

Note: Quantity of AR may be substituted.

$

$

Not available

Cub Cadet 717-3124

Shim, Rear Bearing Cup, .014 Thk

Note: Quantity of AR may be substituted.

$

$

Not available

Cub Cadet 717-3125

Shim, Rear Bearing Cup, .007 Thk

Note: Quantity of AR may be substituted.

$

$

Not available

3

Cub Cadet 741-0370

Cup, Roller Bearing

$25.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 741-0371

Cone, Roller Bearing

$

$

Not available

5

Cub Cadet 717-3070

Shaft, Bevel Pinion

$

$

Not available

6

Cub Cadet 716-0138

Ring, Retaining, 1.312 Dia

$

$

Not available

7

Cub Cadet 717-3327

Gear, Reduction - 71T

$

$

Not available

8

Cub Cadet 618-3071

Adapter Housing Assy

Note: (Includes Ref No. 9)

$

$

Not available

9

Cub Cadet 741-0372

Cup, Roller Bearing
(Superseded to 741-04548)

$8.99

$

In Stock, Qty 14

0

10

Cub Cadet 741-0373

Cone, Roller Bearing
(Superseded to 741-04549)

$19.99

$

In Stock, Qty 14

0

11

Cub Cadet 717-3127

Retainer, Front Bearing, .125 Thk

$

$

Not available

Cub Cadet 717-3128

Retainer, Front Bearing, .119 Thk
(Superseded to 917-3128)

$

$

Not available

Cub Cadet 717-3129

Retainer, Front Bearing, .113 Thk

$

$

Not available

Cub Cadet 717-3130

Retainer, Front Bearing, .107 Thk

$

$

Not available

Cub Cadet 717-3131

Retainer, Front Bearing, .101 Thk
(Superseded to 917-3131)

$

$

Not available

Cub Cadet 717-3132

Retainer, Front Bearing, .131 Thk

$

$

Not available

12

Cub Cadet 726-0216

Plug, Expansion, 2.12 OD

$

$

Not available

13

Cub Cadet 715-0146

Pin, Dowel, 3/8 Dia X 5/8 Lg

$

$

Not available

14

Cub Cadet 736-0141

Washer, Spring, .445 X .75 X .017 Thk
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3229

Screw, Hex Cap, 7/16-14 X 2.75 Lg GR5

$

$

Not available

16

Cub Cadet 710-3238

Bolt, Hex Patch, 7/16-14 X 1.75 Lg GR5

$

$

Not available

17

Cub Cadet 737-0177

Plug, Drain Use Teflon Sealing Tape

$

$

Not available

18

Cub Cadet 759-3430

Shim Package

Note: (Includes Ref No. 19 (Qty 3), 20 (Qty 4), 21 (Qty 2) & 22 (Qty 2))

$

$

Not available

19

Cub Cadet 717-3097

Shim, Bearing Retainer, .004 Thk

$

$

Not available

20

Cub Cadet 717-3098

Shim, Bearing Retainer, .007 Thk

$

$

Not available

21

Cub Cadet 717-3099

Shim, Bearing Retainer, .014 Thk

$37.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 717-3100

Shim, Bearing Retainer, .028 Thk

$

$

Not available

23

Cub Cadet 618-3039

Retainer Assy, Bearing

Note: (Includes Ref No. 24)

$

$

Not available

24

Cub Cadet 741-3039

Cup, Roller Bearing
(Superseded to 941-3039)

$22.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-3118

Bolt, Hex Patch, 3/8-16 X 1.0 Lg GR5

$5.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 749-3161

Tube, Dipstick Use Teflon Sealing Tape

$

$

Not available

27

Cub Cadet 727-3095

Blade Assy, Dipstick

$

$

Not available

28

Cub Cadet 703-2050

Support, Transmission
(Superseded to 703-2050-0637)

Variations

Cub Cadet 703-2050-0637

SUPPORT-TRANS - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 710-3094

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR8
(Superseded to 710-3094A)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 736-0258

Washer, Flat, 3/8

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-3094

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR8
(Superseded to 710-3094A)

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 618-3000

Pinion Assy, Input

$

$

Not available
