1863 (14A-664-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Trans. Dump Valve Linkage, Filter And Pickup Line Parts Diagram

Garden Tractor

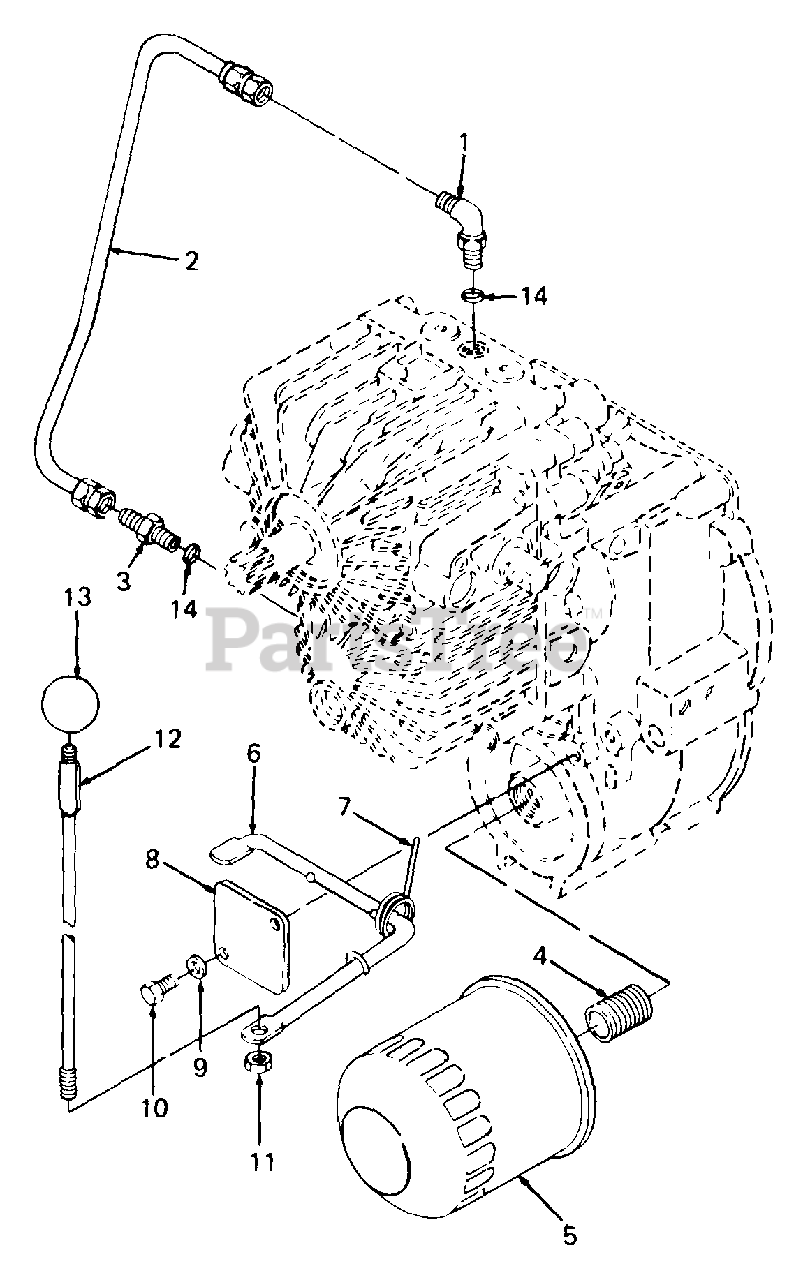

Trans. Dump Valve Linkage, Filter And Pickup Line Parts Diagram

  • Title

1

Cub Cadet 727-3012

Elbow, 90 Degree Tube

$26.99

$

In Stock, only 4 left!

0

2

Cub Cadet 727-3074

Line, Metal Pickup

$

$

Not available

3

Cub Cadet 727-3002

Connector, 37 Degree Tube
(Superseded to 927-3002)

$12.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 737-3022

Nipple, Oil Filter
(Superseded to 937-3022)

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

6

Cub Cadet 747-3155

Rod, Dump Valve Lower

$

$

Not available

7

Cub Cadet 732-3068

Spring, Torsion

$

$

Not available

8

Cub Cadet 703-2055

Plate, Retaining

$

$

Not available

9

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet 712-0324

Nut, Hex Top Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

12

Cub Cadet 747-3154

Rod, Dump Valve Upper

$

$

Not available

13

Cub Cadet 720-3017

Knob, Ball

$14.99

$

In Stock, only 4 left!

0

14

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.49

$

In Stock, Qty 6

0
