1863 (143-664-100) - Cub Cadet Garden Tractor (SN: 836001 - 880000) Rear Axle Carrier Parts Diagram

Garden Tractor

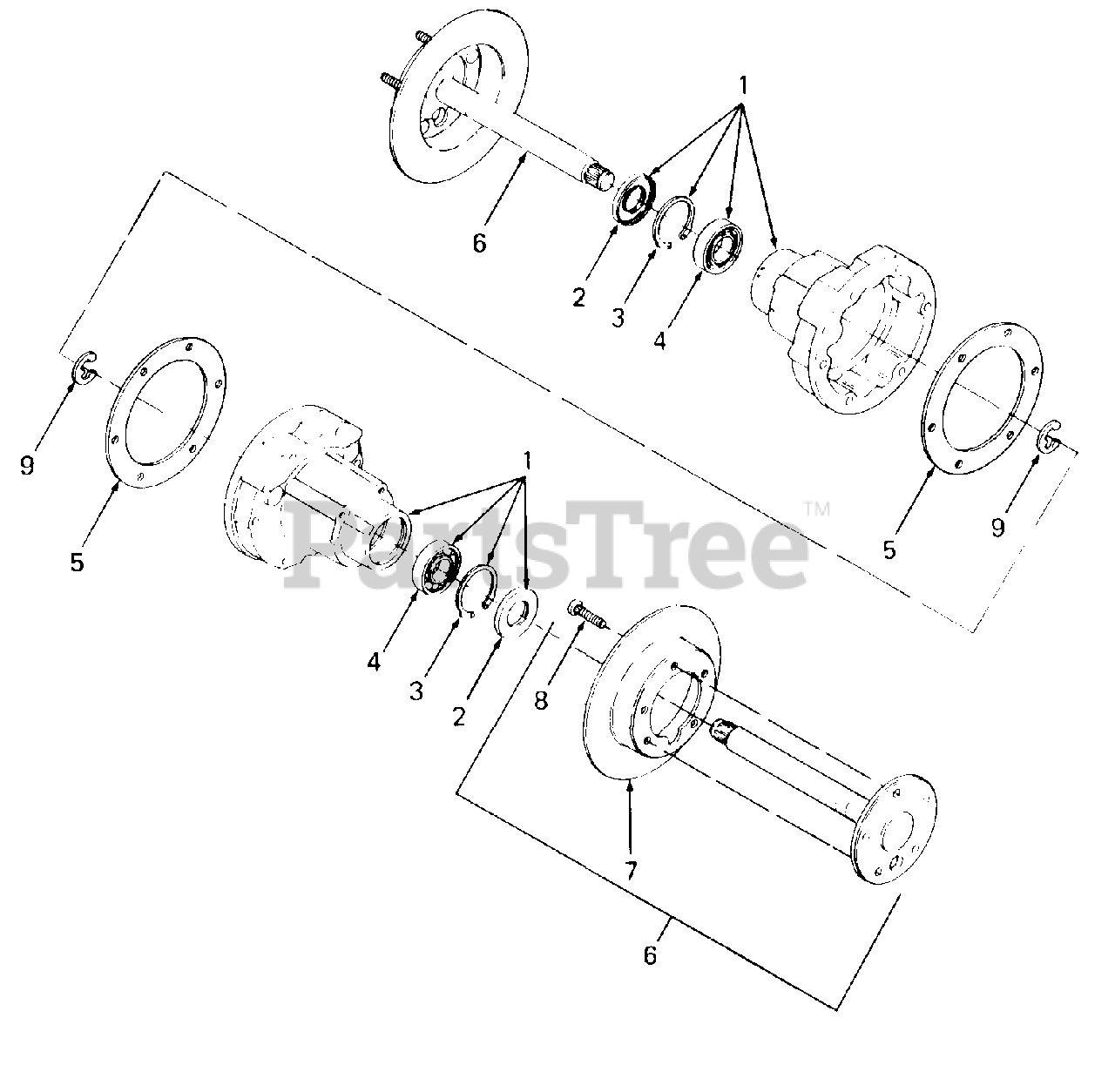

Rear Axle Carrier Parts Diagram

  • Title

1

Cub Cadet 703-1788

Carrier Assy, Rear Axle

Note: (Includes Ref No. 2, 3 & 4)

$

$

Not available

Cub Cadet 736-0213

Washer, Bell, 3/8 Dia

$6.99

$

In Stock, only 3 left!

0

Cub Cadet 736-0169

Washer, Lock, 3/8 Dia

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3116

Bolt, Hex Patch, 3/8-16 X 2.5 Lg GR5

$

$

Not available

Cub Cadet 710-3115

Bolt, Hex Patch, 3/8-16 X 3.0 Lg GR8

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3124

Bolt, Hex Patch, 3/8-16 X 2.25 Lg GR5

$

$

Not available

2

Cub Cadet 721-3020

Seal, Oil
(Superseded to 921-3020A)

$12.99

$

In Stock, Qty 20+

0

3

Cub Cadet 716-3015

Ring, Retaining

$11.99

$

In Stock, only 3 left!

0

4

Cub Cadet 741-3033

Bearing, Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

5

Cub Cadet 721-3014

Gasket, Carrier
(Superseded to 721P3014)

$13.99

$

In Stock, Qty 12

0

6

Cub Cadet 703-1789

Axle Assy, Rear
(Superseded to 903-1806)

Note: [Includes Ref No. 7 & 8 (Qty 5)]

$411.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-0908B

Disc, Brake

$

$

Not available

8

Cub Cadet 710-0852

Bolt, Lug

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 716-0136

Retainer, E-Ring

$8.99

$

In Stock, only 1 left!

0
