1863 (143-664-100) - Cub Cadet Garden Tractor (SN: 836001 - 880000) Front Axle And Connections Parts Diagram

Garden Tractor

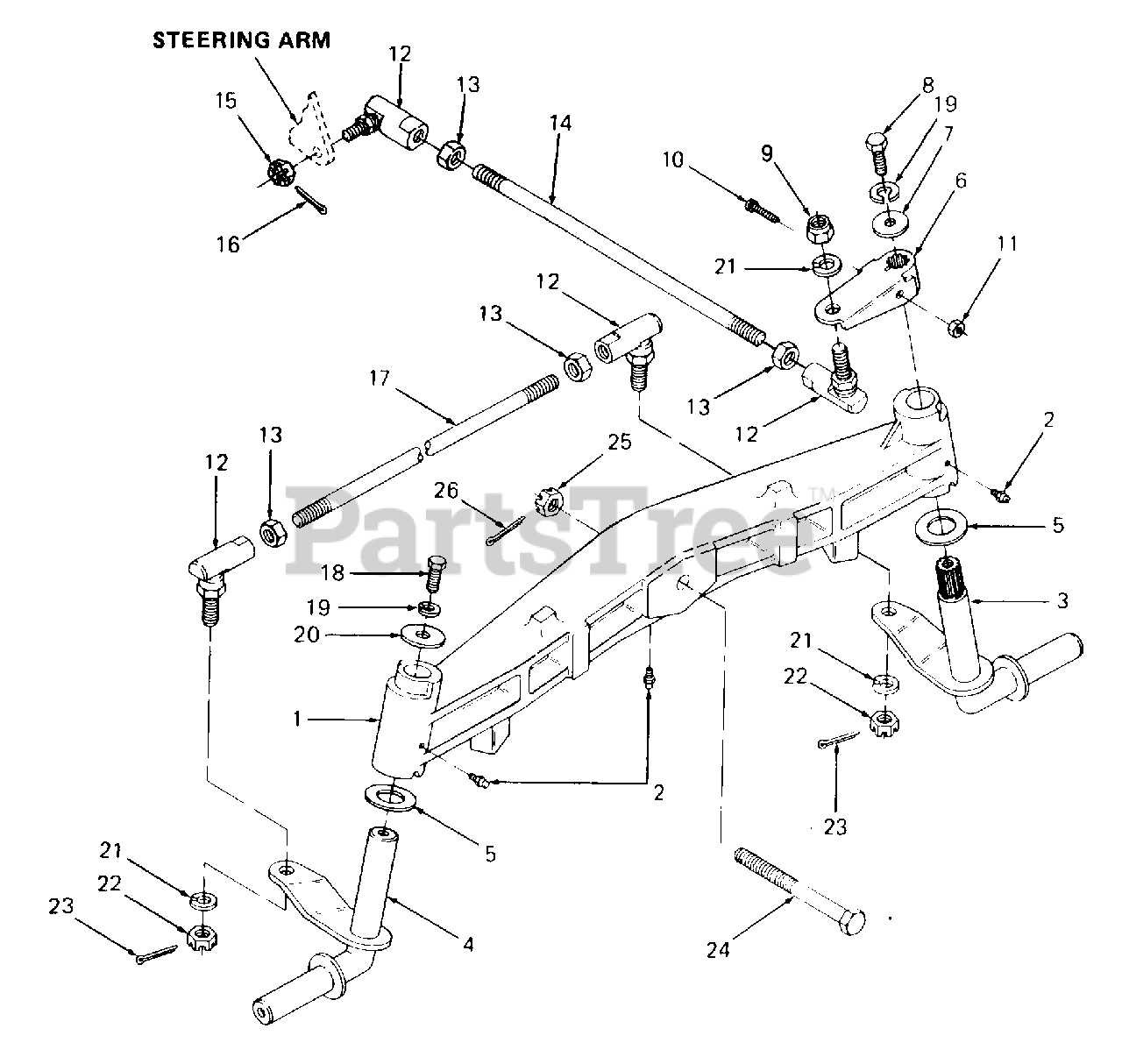

Front Axle And Connections Parts Diagram

  • Title
1

Cub Cadet 719-3100

Axle, Front

Variations

Cub Cadet 719-3100-0637

AXLE-FRONT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 603-0007

Knuckle, Steering - LH

$

$

Not available

4

Cub Cadet 603-0006

Knuckle, Steering - RH

$

$

Not available

5

Cub Cadet 736-0163

Washer, Thrust, 1.03 X 1.62 X .03 Thk HDN

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 703-1884

Arm, Steering

$

$

Not available

7

Cub Cadet 736-0247

Washer, Flat, .406 X 1.25 X .157 Thk

$9.49

$

In Stock, Qty 12

0

8

Cub Cadet 710-0152

Screw, Hex Cap, 3/8-24 X 1.0 Lg
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3053

Nut, Hex Top Lock, 1/2-20
(Superseded to 912-3053)

$

$

Not available

10

Cub Cadet 710-3210

Screw, Socket Hd Cap, 1/4-20 X 1.38 Lg

$

$

Not available

11

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 723-3015

Ball Joint
(Superseded to 923-3015)

$

$

Not available

13

Cub Cadet 712-3029

Nut, Hex Jam, 1/2-20 GR5

$6.99

$

In Stock, Qty 6

0

14

Cub Cadet 747-3162

Link, Drag

$

$

Not available

15

Cub Cadet 712-3012

Nut, Hex Castle, 1/2-20 GR5
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 714-3004

Pin, Cotter, 3/32 Dia X 1.25 Lg

$4.99

$

In Stock, Qty 9

0

17

$

$

Not available

18

Cub Cadet 710-0152

Screw, Hex Cap, 3/8-24 X 1.0 Lg
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-3039

Washer, Flat, .406 X 1.5 X .12 Thk

$5.49

$

In Stock, Qty 7

0

21

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 712-3012

Nut, Hex Castle, 1/2-20 GR5
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 714-3004

Pin, Cotter, 3/32 Dia X 1.25 Lg

$4.99

$

In Stock, Qty 9

0

24

Cub Cadet 710-3019

Bolt, Hex, 3/4-10 X 5.25 Lg GR5

$

$

Not available

25

Cub Cadet 712-3011

Nut, Hex Castle, 3/4-10

$

$

Not available

26

Cub Cadet 714-3001

Pin, Cotter, 1/8 Dia X 1.5 Lg
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0
