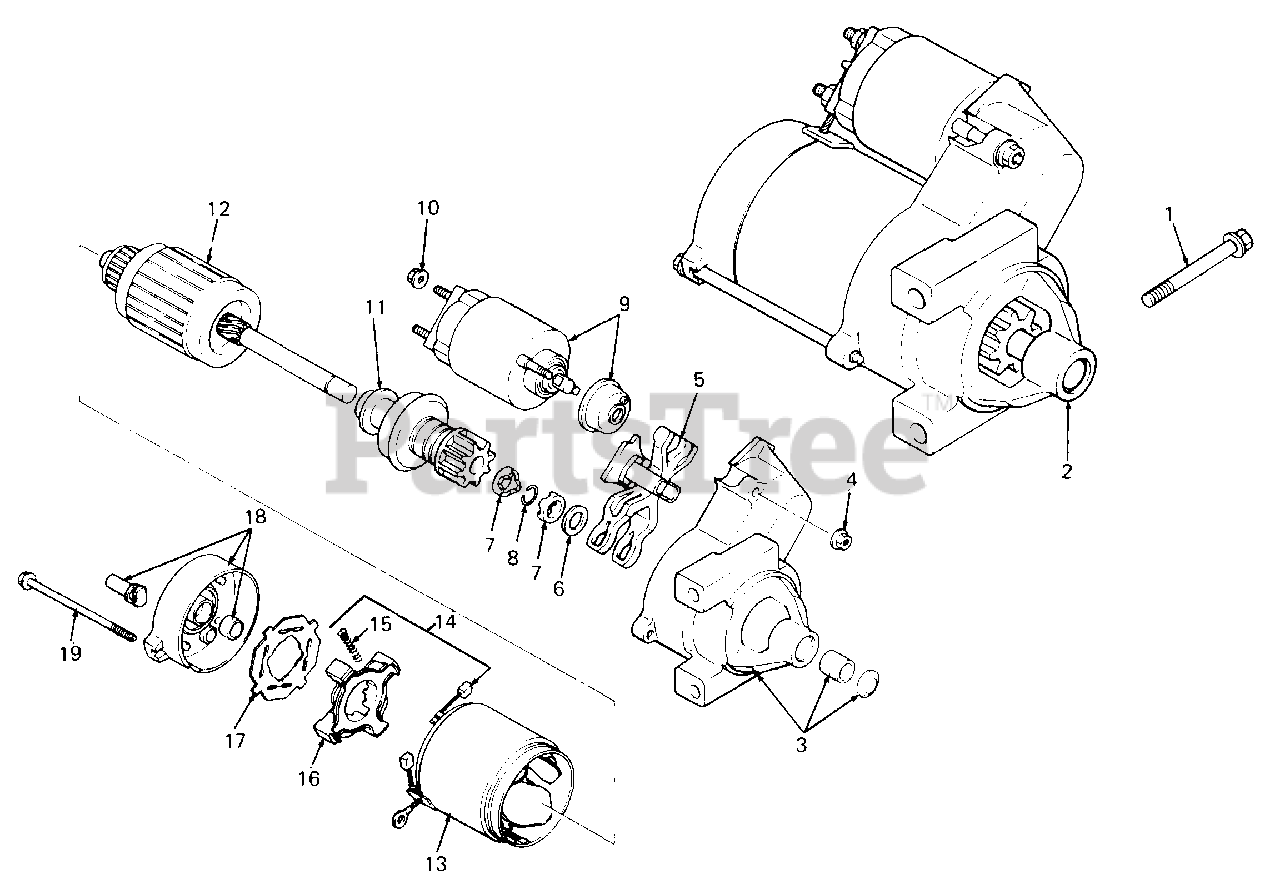

1863 (143-664-100) - Cub Cadet Garden Tractor (SN: 836001 - 880000) Electric Starter Parts Diagram

Garden Tractor

Electric Starter Parts Diagram

  • Title
1

Cub Cadet KH-SM-0839080

Screw, M8 X 1.25 X 80.6
(Superseded to KH-M-851080-S)

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet KH-12-098-03

Starter Assy, Solenoid Shift
(Superseded to KH-25-098-24-S)

Note: (Nippon Denso)

$316.99

$

In Stock, Qty 17

0

3

Cub Cadet KH-12-081-02

Cap, Drive End

$

$

Not available

4

Cub Cadet KH-52-100-10

Nut, Starter

$

$

Not available

5

Cub Cadet KH-12-090-10

Lever, Starter Drive

$

$

Not available

6

Cub Cadet KH-52-468-14

Washer, Thrust

$

$

Not available

7

Cub Cadet KH-52-100-08

Nut, Stop Collar

$

$

Not available

8

Cub Cadet KH-52-141-03

Ring, Retainer
(Superseded to KH-24-755-84)

$

$

Not available

$499.99

$

Usually ships in 2-5 days

0

$

$

Not available

11

Cub Cadet KH-12-239-01

Drive, Pinion

$

$

Not available

$

$

Not available

$

$

Not available

14

Cub Cadet KH-52-221-01

Kit, Brush

Note: (Includes Ref No. 15)

$

$

Not available

15

Cub Cadet KH-52-089-09

Spring, Brush

$

$

Not available

16

Cub Cadet KH-52-323-03

Holder, Brush

$

$

Not available

17

$

$

Not available

18

Cub Cadet KH-12-301-01

Cap, Commutator End

$

$

Not available

19

$

$

Not available

Cub Cadet KH-M-839080

Screw, hex. flange M8x1.25x80
(Superseded to KH-M-851080-S)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-M-0841080

Nut, hex. flange M8x1.25
(Superseded to 712-3086)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-25-098-09-S

Starter assembly solenoid shift (Delco)
(Superseded to KH-25-098-24-S)

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$316.99

$

In Stock, Qty 17

0

Cub Cadet KH-25-755-33-S

Kit, pinion drive

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$

$

Not available

Cub Cadet KH-25-141-05-S

Ring

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$3.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-221-01-S

Kit, brush

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$70.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-435-05-S

Kit
(Superseded to KH-25-435-06-S)

Note: (Includes 3 Torx head screws), solenoid (plunger is part of the solenoid); Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$212.99

$

In Stock, only 2 left!

0

Cub Cadet KH-25-086-113-S

Screw, external Torx head M4x0.7x26

Note: Not shown; Delco-Remy SOLENOID SHIFT STARTER (25 098 09-S)

$15.99

$

Usually ships in 2-5 days

0
