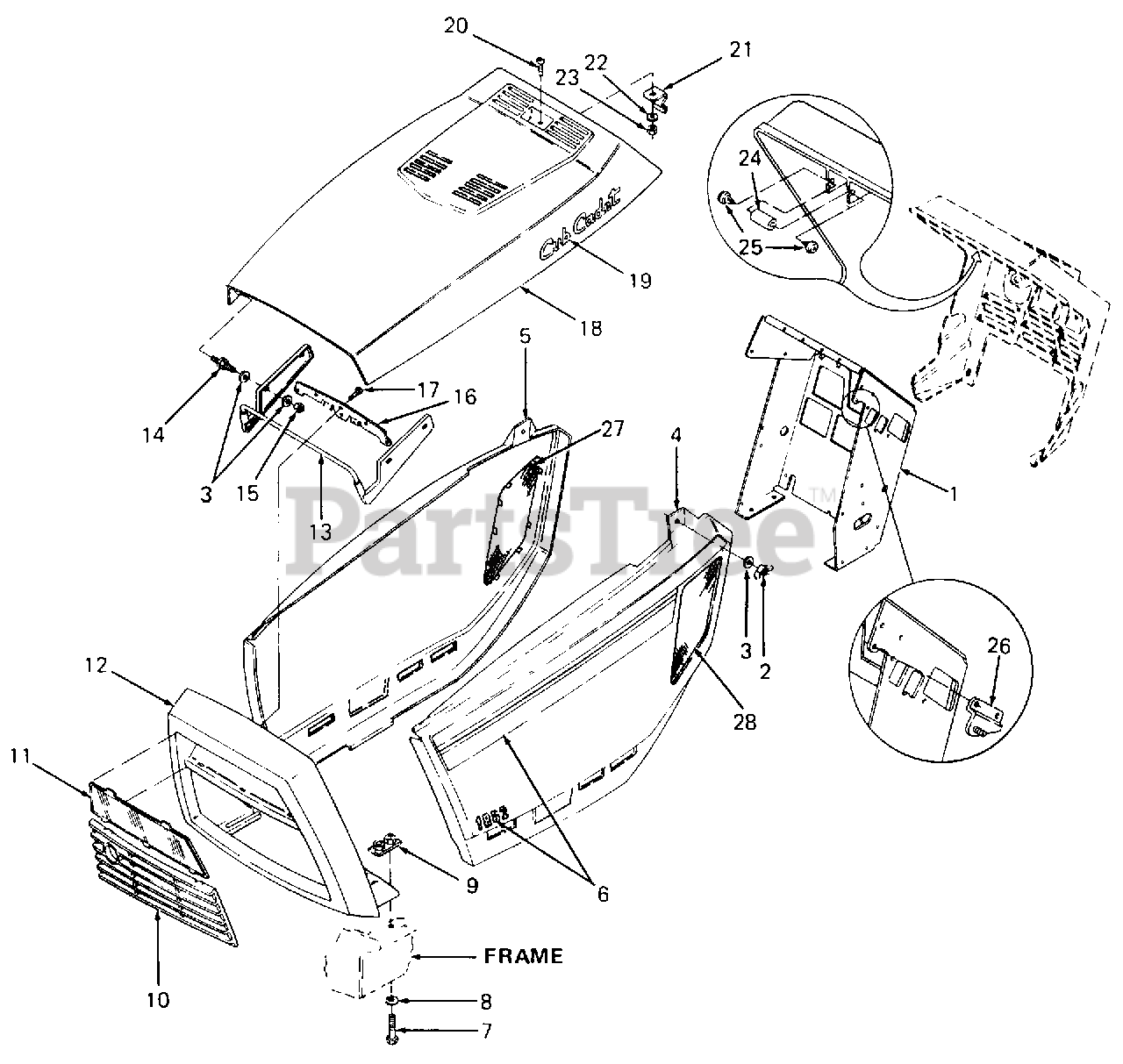

1862 (142-683-100) - Cub Cadet Garden Tractor (SN: 821060 - 836000) Hood & Grille Parts Diagram

Garden Tractor

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet 603-0023

Pedestal

Variations

Cub Cadet 603-0023-0498

PEDESTAL ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 712-3044

Nut, Wing, 1/4-20

$

$

Not available

3

Cub Cadet 736-0463

Washer, Flat, .251 X .62 X .052 Thk

$4.49

$

In Stock, Qty 12

0

4

Cub Cadet 731-3115

Panel, LH Side
(Superseded to 931-3115A)

$

$

Not available

5

Cub Cadet 731-3116

Panel, RH Side
(Superseded to 931-3116)

$360.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 759-3633

Graphics Kit, LH Side Panel

$

$

Not available

Cub Cadet 759-3632

Graphics Kit, RH Side Panel

$

$

Not available

7

Cub Cadet 710-3002

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-0008

Retainer, Grille Housing

$

$

Not available

10

Cub Cadet 731-3099

Grille, Insert

$

$

Not available

11

Cub Cadet 731-3102

Grille, Lens
(Superseded to 931-3102)

$41.99

$

In Stock, only 3 left!

0

12

Cub Cadet 759-3527

Grille w/Label
(Superseded to 759-3773)

$

$

Not available

Cub Cadet 779-3535

Label, Light

$

$

Currently unavailable

13

Cub Cadet 703-1829

Hinge Assy, Hood
(Superseded to 703-1829-0499)

Variations

Cub Cadet 703-1829-0498

Hinge Assembly Hood - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-1829-0499

Hinge Assembly Hood - CUB BEIGE (0499)

$

$

Not available

$

$

14

Cub Cadet 710-3214

Stud, Double Ended

$

$

Not available

15

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 703-1856

Plate, Hinge

Variations

Cub Cadet 703-1856-0499

PLATE-HINGE (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

$

$

17

Cub Cadet 710-0748

Screw, Pan Hd Tap, #12 X .50 Lg

$

$

Not available

18

Cub Cadet 731-3089A

Hood
(Superseded to 931-3089B)

$

$

Not available

19

Cub Cadet 779-3536

Graphic, Cub Cadet Script w/Studs
(Superseded to 979-3536)

$15.99

$

In Stock, Qty 7

0

Cub Cadet 726-3047

Retainer, Push Nut
(Superseded to 926-3047)

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 710-3217

Screw, Truss Hd, #8-32 X .38 Lg

$6.99

$

In Stock, Qty 7

0

21

Cub Cadet 732-3063A

Clip, Hood Latch

$

$

Currently unavailable

22

Cub Cadet 736-0310

Washer, Flat, .16 X .38 X .045 Thk

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet 712-3072

Nut, Hex Keps, #8-32
(Superseded to 912-3072)

$

$

Not available

24

Cub Cadet 711-3296

Pin, Latch
(Superseded to 911-3296)

$

$

Not available

25

Cub Cadet 710-0286

Screw, Phillips Hd Truss Mach, 1/4-20 X .50 Lg

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 703-1955

Bracket Assy, LH Panel Mtg

Variations

Cub Cadet 703-1955-0498

BRACKET ASSEMBLY-PANEL MT(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-1955-0499

BRACKET ASSY, LH PANEL MTG - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 703-1955-0637

BRACKET ASSY, LH PANEL MTG - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 11

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 19

0

27

Cub Cadet 703-2162

Screen, RH Side Panel
(Superseded to 703-2162-0499)

Variations

Cub Cadet 703-2162-0499

SCREEN-RH PANEL - CUB BEIGE (0499)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 703-2163

Screen, LH Side Panel

Variations

Cub Cadet 703-2163-0499

PANEL SCREEN (LH) (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

$

$
