1862 (142-683-100) - Cub Cadet Garden Tractor (SN: 821060 - 836000) Engine Mounting, Muffler & Air Duct Parts Diagram

Garden Tractor

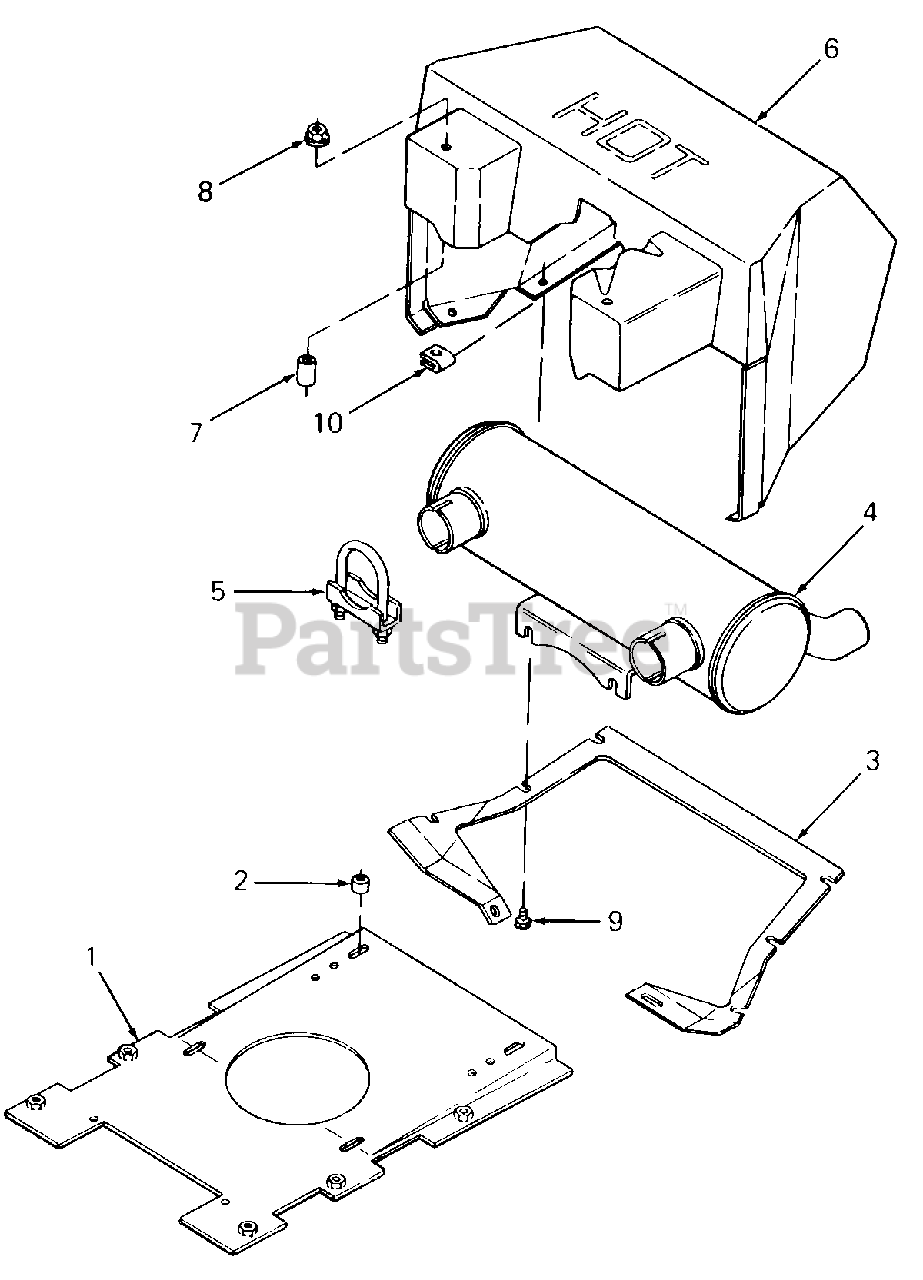

Engine Mounting, Muffler & Air Duct Parts Diagram

  • Title

1

Cub Cadet 703-0178

Plate Assy, Engine Mounting

$

$

Not available

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, only 3 left!

0

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 750-3009

Spacer, .423 X .675 X .469 Lg
(Superseded to 950-3009)

$12.99

$

In Stock, only 1 left!

0

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5

$4.49

$

In Stock, Qty 7

0

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-1865A

Duct, Bottom Cooling

$

$

Not available

4

Cub Cadet 751-3083

Muffler

$213.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-3024

Washer, Flat, .469 X .75 X .054 Thk

$3.99

$

In Stock, only 1 left!

0

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet 726-3016

Clamp, Muffler

$

$

Not available

6

Cub Cadet 703-1839

Duct, Top Air

$

$

Not available

7

Cub Cadet 750-0470

Spacer, .326 X .47 X .96 Lg

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp, 1/4-20 X .50 Lg

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 726-3048

Nut, U-Type Speed, 1/4-20

$

$

Not available
