1862 (140-681-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Steering Mounting Parts Diagram

Garden Tractor

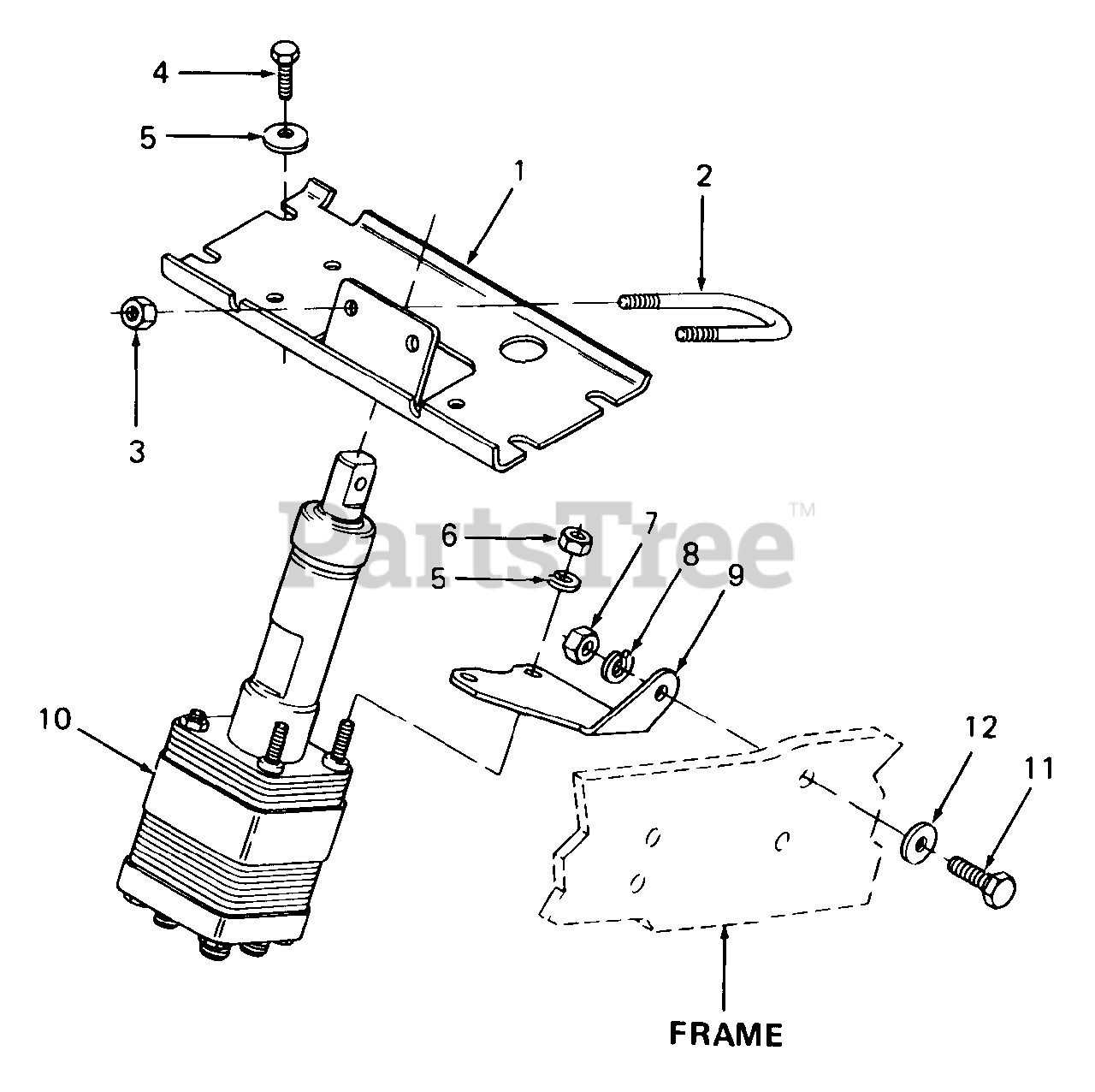

Steering Mounting Parts Diagram

  • Title

1

Cub Cadet 703-1817

Plate, Steering Support

$

$

Not available

2

Cub Cadet 747-3016

Clamp

$

$

Not available

3

Cub Cadet 712-0237

Nut, Hex Center Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

4

Cub Cadet 710-3004

Screw, Hex Cutting, 5/16-18 x .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .060 Thk

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

7

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-1857

Bracket, Power Steering Box Mtg

$

$

Not available

10

Cub Cadet 703-1858

Power Steering Box w/Flat

Note: For component parts see "Power Steering Box Assembly" illustration and parts list

$

$

Not available

11

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 x .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

12

Cub Cadet 736-0267

Washer, Flat, .385 x .87 x .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0
