1862 (140-681-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Power Steering Hydraulics Parts Diagram

Garden Tractor

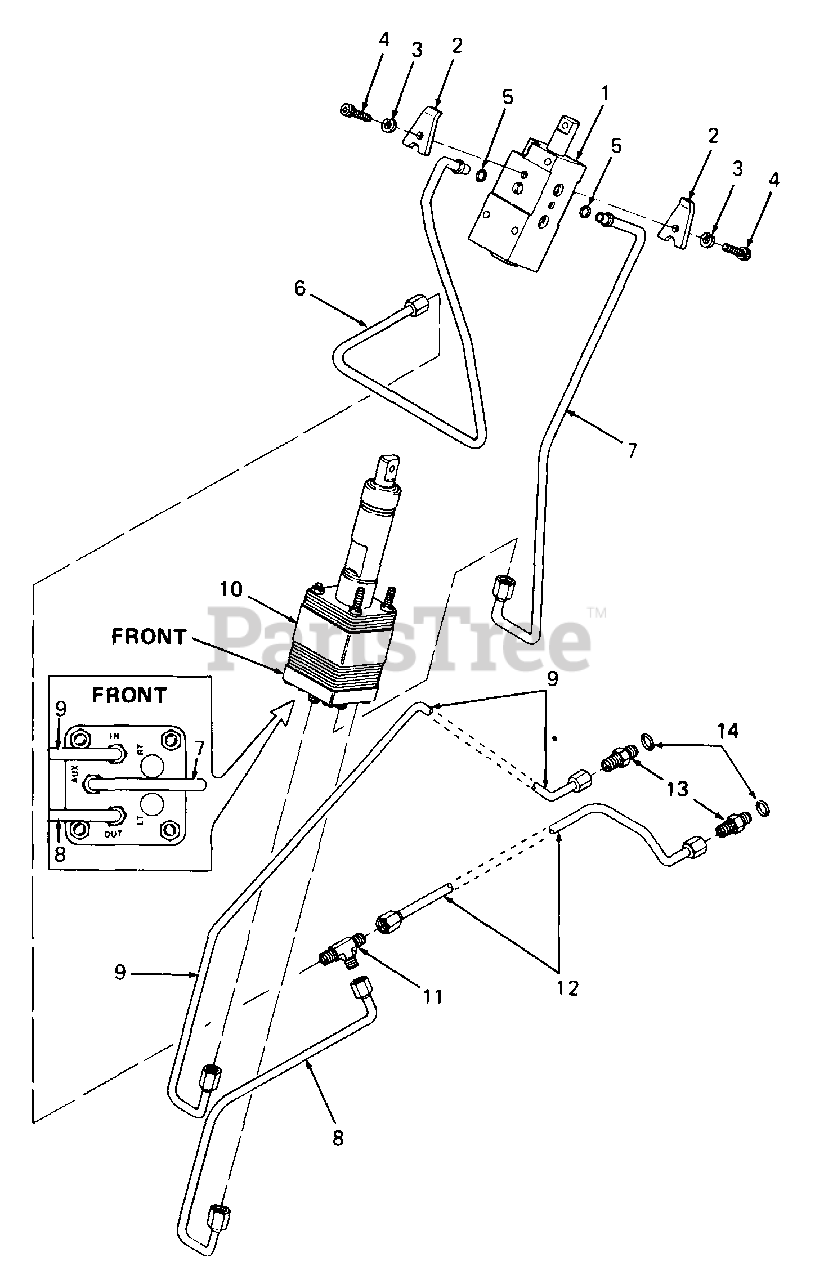

Power Steering Hydraulics Parts Diagram

  • Title

1

Cub Cadet 717-3308A

Valve, Lift

Note: For component parts see breakdown under hydraulic lift valve

$

$

Not available

2

Cub Cadet 703-1802

Clamp, Single

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet 710-3218

Screw, Socket Hd Cap, 1/4-20 x .62 Lg GR8

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 721-3021

O-Ring, .301 x .070 Dia
(Superseded to 921-3021)

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 727-3048

Tube Assy, P.S. Return - Upper

$

$

Not available

Cub Cadet 735-3007

Spacer, Rubber
(Superseded to 935-3007)

$8.49

$

In Stock, only 3 left!

0

Cub Cadet 726-3020

Strap, Lock

$

$

Currently unavailable

7

Cub Cadet 727-3052

Tube Assy, P.S. Aux

$

$

Not available

8

Cub Cadet 727-3055

Tube Assy, P.S. Return

$

$

Not available

9

Cub Cadet 727-3054

Tube Assy, P.S. Inlet

$102.99

$

In Stock, only 1 left!

0

10

Cub Cadet 703-1858

Power Steering Box w/Flat

Note: For component parts see breakdown under power steering box

$

$

Not available

11

Cub Cadet 727-3056

T-Fitting

$

$

Not available

12

Cub Cadet 727-3050

Tube Assy, P.S. Return - Lower

$

$

Not available

13

Cub Cadet 727-3002

Connector, 37 Deg Tube
(Superseded to 927-3002)

$12.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 721-3001

O-Ring, 3/8 OD Tube

$3.49

$

In Stock, Qty 6

0
