1862 (140-681-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Implement Lift Parts Diagram

Garden Tractor

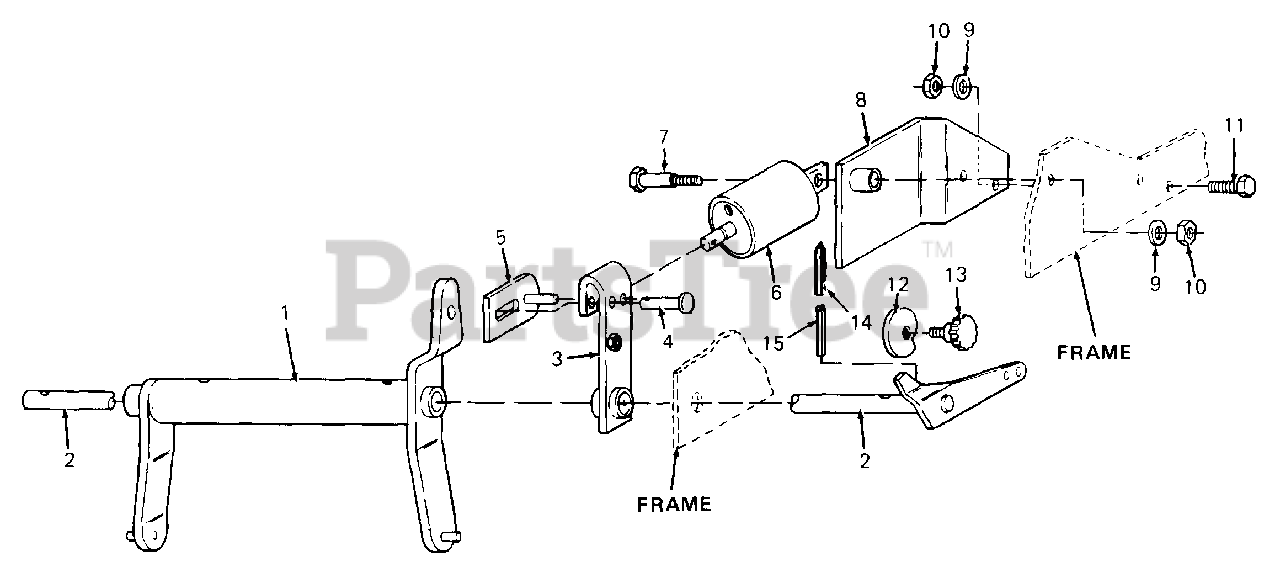

Implement Lift Parts Diagram

  • Title

1

Cub Cadet 703-0837

Lift Assy, Rockshaft

$

$

Currently unavailable

Cub Cadet 715-3020

Pin, Slotted Roll, 3/8 Dia x 2.0 Lg

$

$

Not available

2

Cub Cadet 703-0853

Rockshaft Assy

$

$

Not available

3

Cub Cadet 703-0192

Bracket, Lift

$

$

Not available

4

Cub Cadet 711-3030

Pin, Clevis, 1/2 Dia x 2.172 Lg

$

$

Not available

Cub Cadet 736-0108

Washer, Flat, .510 x .75 x .033 Thk

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia x 1.0 Lg

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 703-0176

Pin Assy, Lift

$

$

Not available

6

Cub Cadet 717-3005

Cylinder, Hydraulic

Note: For Component Parts See "Hydraulic Cylinder" illustration and parts list

$

$

Not available

7

Cub Cadet 738-3008

Bolt, Shoulder

$

$

Not available

8

Cub Cadet 703-0174

Bracket, Cylinder

$

$

Not available

9

Cub Cadet 736-3019

Washer, Flat, .531 x 1.06 x .134 Thk

$5.99

$

In Stock, Qty 11

0

10

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 x 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-0189

Cam, Lift Handle Stop

Variations

Cub Cadet 703-0189-0498

STOP CAM-LIFT HAND - OLD CUB YELLOW (0498)

$

$

Not available

$

$

13

Cub Cadet 720-3005

Knob, Torque

$

$

Not available

14

Cub Cadet 720-3002

Pointer, Lift

$

$

Not available

15

Cub Cadet 715-3025

Pin, Roll, 3/16 Dia x 3.0 Lg

$

$

Not available
