1862 (140-681-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Ignition Parts Diagram

Garden Tractor

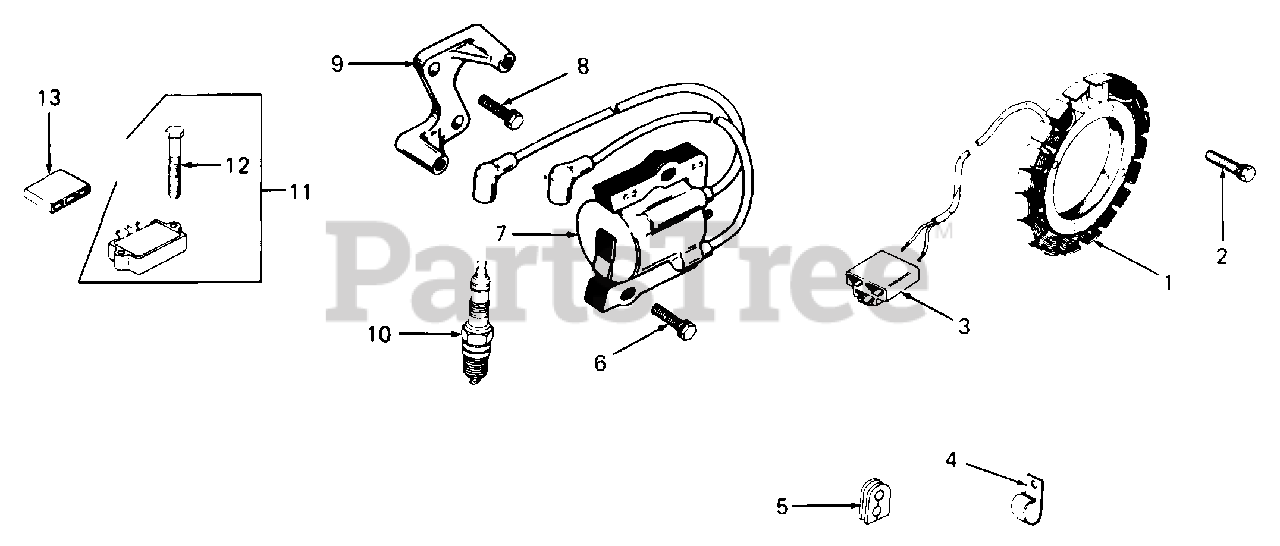

Ignition Parts Diagram

  • Title

1

Cub Cadet KH-237878

Kit, Stator

$149.99

$

In Stock, Qty 15

0

2

Cub Cadet KH-X-67-51

Screw, Hex Wash Hd, #10-24 x .75 Lg
(Superseded to KH-25-086-97-S)

$3.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-236473

Connector

$

$

Not available

4

Cub Cadet KH-48-154-02

Clip, Lead

$

$

Not available

5

Cub Cadet KH-52-313-02

Grommet

$

$

Not available

6

Cub Cadet KH-25-086-15

Screw, Hex Wash Hd, 1/4-20 x 1.0 Lg

$

$

Not available

7

Cub Cadet KH-52-584-02

Module, Ignition

$

$

Not available

8

Cub Cadet KH-25-086-16

Screw, Hex Wash Hd, 1/4-20 x .87 Lg

$

$

Not available

9

Cub Cadet KH-52-126-08

Bracket, Module

$

$

Not available

10

Cub Cadet 759-3337

Spark Plug

$4.99

$

In Stock, Qty 7

0

11

Cub Cadet KH-25-755-03

Kit, Rectifier-Regulator

Note: Includes Ref No. 12 (Qty 2).

$

$

Not available

12

Cub Cadet KH-X-132-5

Screw, Hex Cap, 1/4-20 x .62 Lg

$

$

Not available

13

Cub Cadet KH-236602

Connector, Rectifier-Regulator
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

Cub Cadet KH-52-518-16

Lead, Module to Connector 27"-18 gauge

Note: Insulated push-on tab & uninsulated push-on tab terminals

$

$

Not available

Cub Cadet KH-25-518-10

Lead, Rectifier-Regulator 16"-14 gauge

Note: Uninsulated push-on tab terminals

$

$

Not available
