1862 (140-681-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Fuel Tank Parts Diagram

Garden Tractor

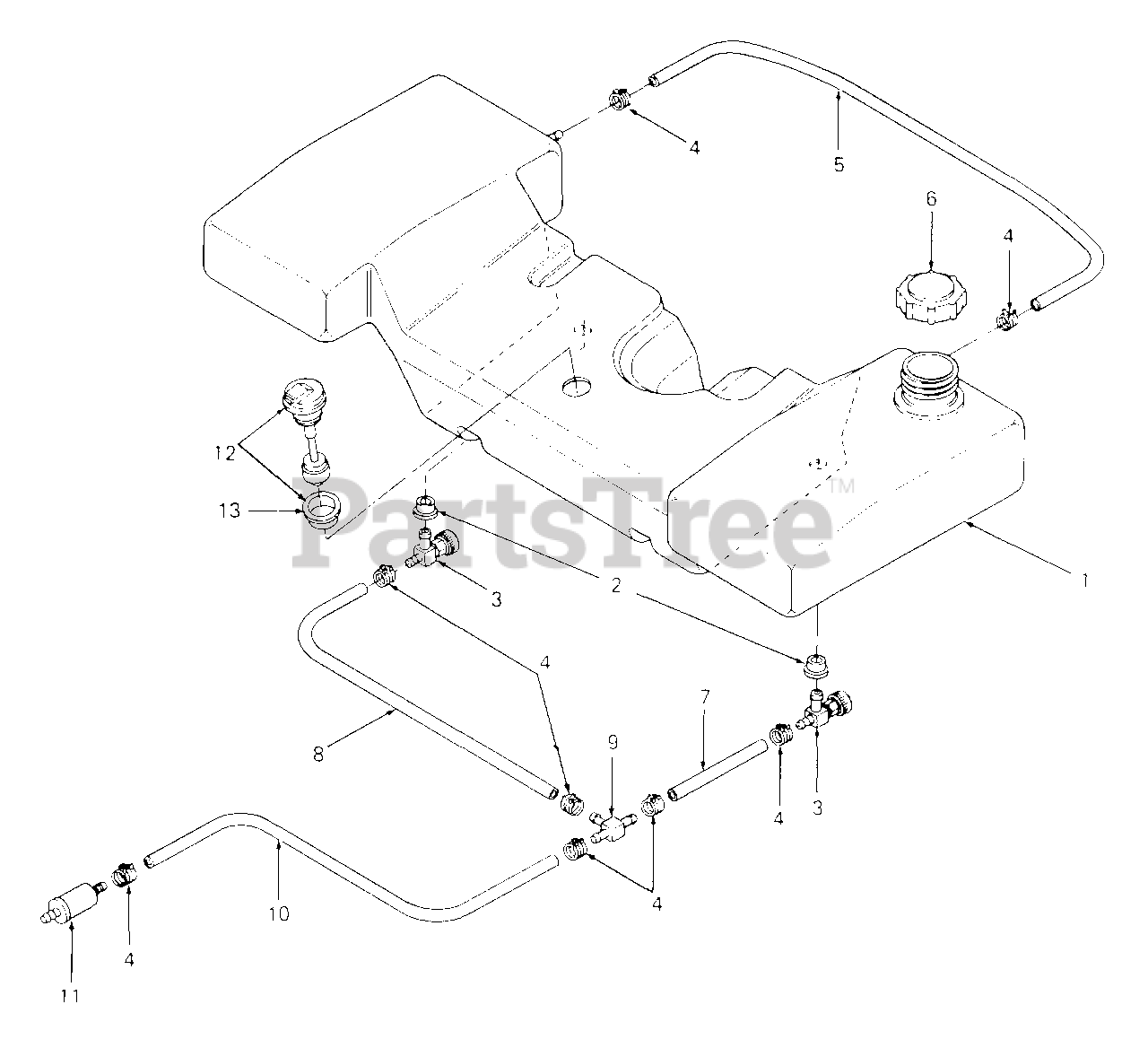

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 751-3079

Tank, Fuel

$

$

Not available

2

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-3085

Valve, Fuel Shutoff

$

$

Not available

4

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

5

Line, Fuel - 24" Lg

Note: Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg

$

$

Not available

6

Cub Cadet 751-3071

Cap, Fuel
(Superseded to 751-0603B)

Note: Order 751-3111

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-3003

Gasket, Fuel Cap

Note: Used w/751-3071

$

$

Not available

7

Line, Fuel - 5" Lg

Note: Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg

$

$

Not available

8

Line, Fuel - 17" Lg

Note: Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg

$

$

Not available

9

Cub Cadet 751-3096

T-Fitting
(Superseded to 01003473)

$7.49

$

In Stock, only 2 left!

0

10

Line, Fuel - 41" Lg

Note: Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg

$

$

Not available

11

Cub Cadet KH-25-050-02

Filter, Fuel
(Superseded to KH-25-050-07-S)

$10.99

$

In Stock, Qty 6

0

12

Cub Cadet 751-3082

Sensor, Low Fuel
(Superseded to 951-3082)

$

$

Not available

13

Cub Cadet 759-3616

Bushing, Rubber
(Superseded to 735-0699)

$16.99

$

In Stock, only 2 left!

0

Cub Cadet 759-3330

Bulk Fuel Line, 10 Ft Lg

$63.99

$

In Stock, only 2 left!

0

Cub Cadet 751-3111

Cap, Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0
