1862 (140-681-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Fuel Pump Parts Diagram

Garden Tractor

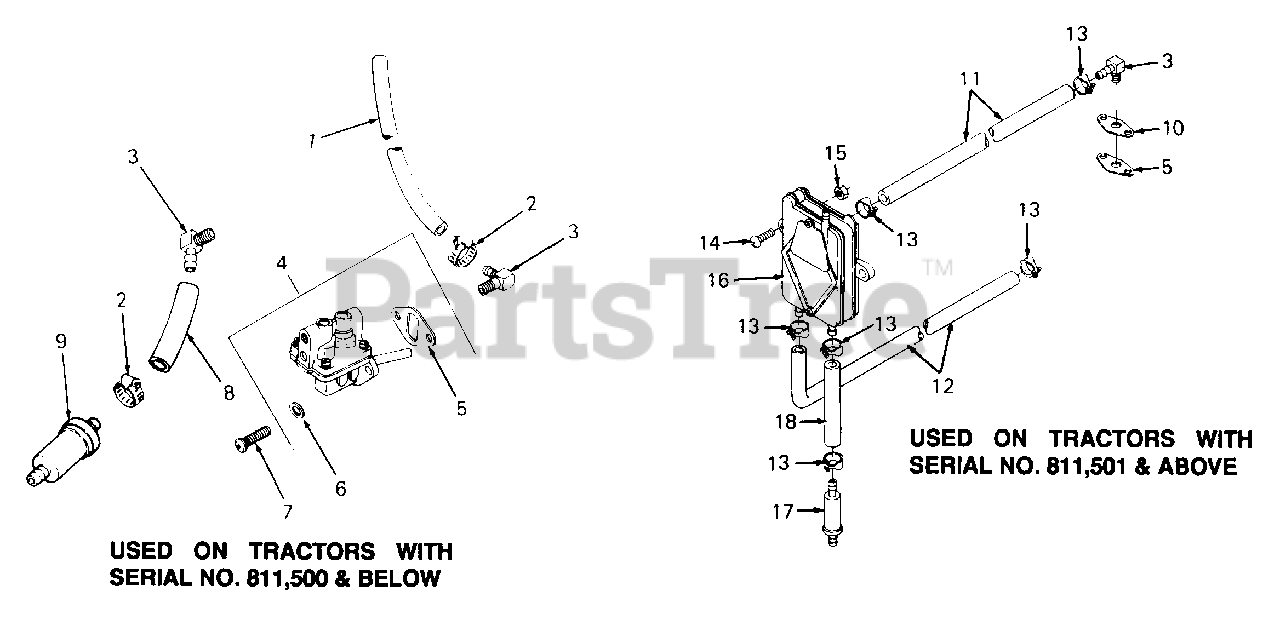

Fuel Pump Parts Diagram

  • Title

1

Cub Cadet KH-52-353-04

Line, Fuel

$

$

Not available

2

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-25-155-02

Connector, Hose

$

$

Not available

4

Cub Cadet KH-52-559-01

Pump, Fuel
(Superseded to KH-52-559-03-S)

Note: Includes Ref No. 5 & 6 (Qty 2).

$50.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-041-05

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-X-25-63

Washer, Plain, 1/4

$

$

Not available

7

Cub Cadet KH-47-086-08

Screw, Pozidriv Th, 1/4-20 x .62 Lg

$

$

Not available

8

Cub Cadet KH-25-353-02

Line, Fuel

$

$

Not available

9

Cub Cadet KH-25-050-01

Filter, Fuel
(Superseded to KH-25-050-07-S)

$10.99

$

In Stock, only 3 left!

0

10

Cub Cadet KH-52-096-42

Cover

$

$

Not available

11

Cub Cadet KH-52-353-20

Line, Fuel
(Superseded to 751-10349-16)

Note: Short

$19.99

$

In Stock, Qty 11

0

12

Cub Cadet KH-15-353-02

Line, Fuel
(Superseded to 751-10349-22)

Note: Long

$25.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0425

Screw, Truss Mach, 10-24 x .62

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0998

Nut, Hex Center Lock, 10-24

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 751-3103

Pump, Fuel
(Superseded to BS-808656)

$27.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-25-050-02

Filter, Fuel
(Superseded to KH-25-050-07-S)

$10.99

$

In Stock, only 3 left!

0

18

Cub Cadet 751-3090

Line, Fuel, 5" Lg

$

$

Currently unavailable
