1862 (140-681-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Battery And Electrical Components Parts Diagram

Garden Tractor

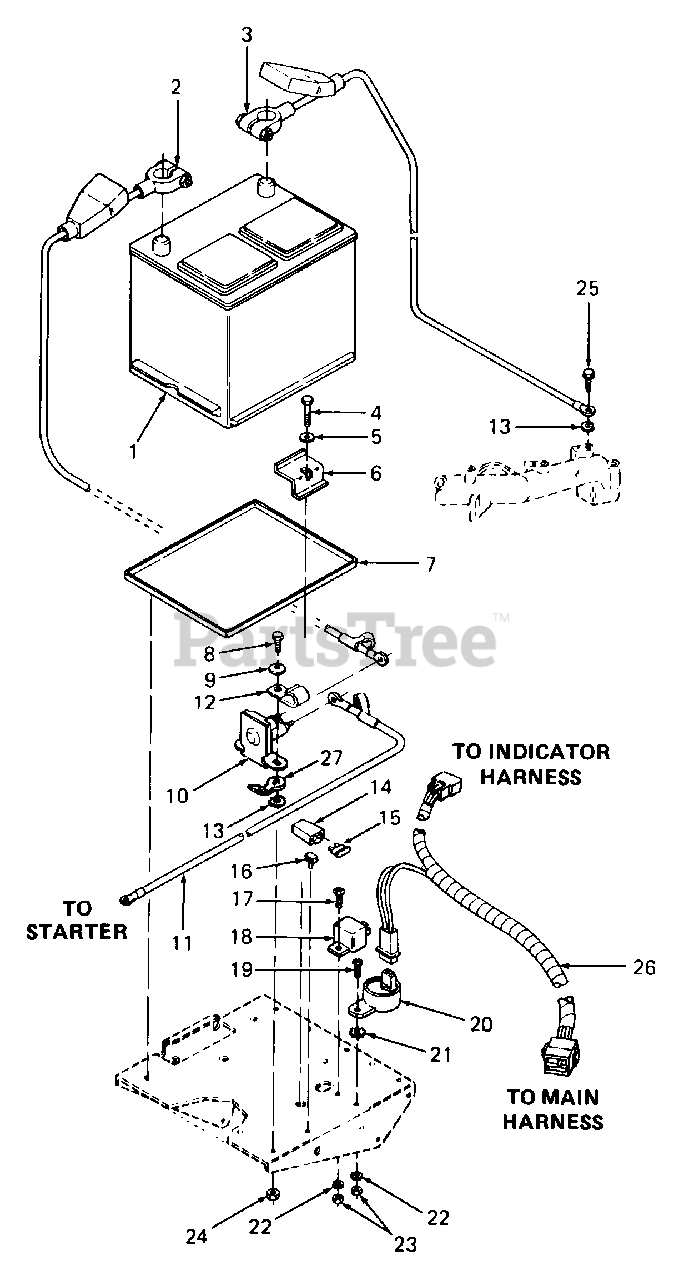

Battery And Electrical Components Parts Diagram

  • Title
1

Cub Cadet 725-3174

Battery
(Superseded to 925-04514)

$314.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 725-3196

Cable, Positive Battery

$

$

Not available

3

Cub Cadet 725-3193

Cable, Negative Battery

$

$

Not available

4

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 x 1.38 Lg

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 736-0275

Washer, Flat, .34 x .68 x .062 Thk

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-1823

Hold Down, Battery
(Superseded to 703-1823-0716)

Variations

Cub Cadet 703-1823-0716

Battery Hold-Down - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

Cub Cadet 731-3105

Tray, Battery

$

$

Not available

8

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062 Thk

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 725-3206

Cable, Starter

$

$

Not available

12

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-3006

Washer, Int-Ext, 1/4

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 729-0207

Holder, Fuse

$

$

Not available

15

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

16

Cub Cadet 729-0209

Clip, Fuse Holder Mtg

$

$

Not available

17

Cub Cadet 710-0473

Screw, Truss Mach, #10-24 x .50 Lg

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 725-1375

Relay
(Superseded to 925-1375)

$71.99

$

In Stock, Qty 5

0

19

Cub Cadet 710-0473

Screw, Truss Mach, #10-24 x .50 Lg

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 725-3165

Indicator, Voltage
(Superseded to 929-3080)

$

$

Not available

21

Cub Cadet 736-0147

Washer, External, #10
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0722

Washer, Lock, #10

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-0121

Nut, Hex, #10-24

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

25

Cub Cadet 710-0653

Screw, Hex Wash Hd Tapp, 1/4-20 x .38 Lg

$4.49

$

In Stock, Qty 7

0

26

Cub Cadet 725-3201

Battery Harness
(Superseded to 925-3201)

$

$

Not available

Cub Cadet 726-3020

Strap, Tie

$

$

Currently unavailable

27

Cub Cadet 725-3147

Lug, Quick Connect

$

$

Not available
