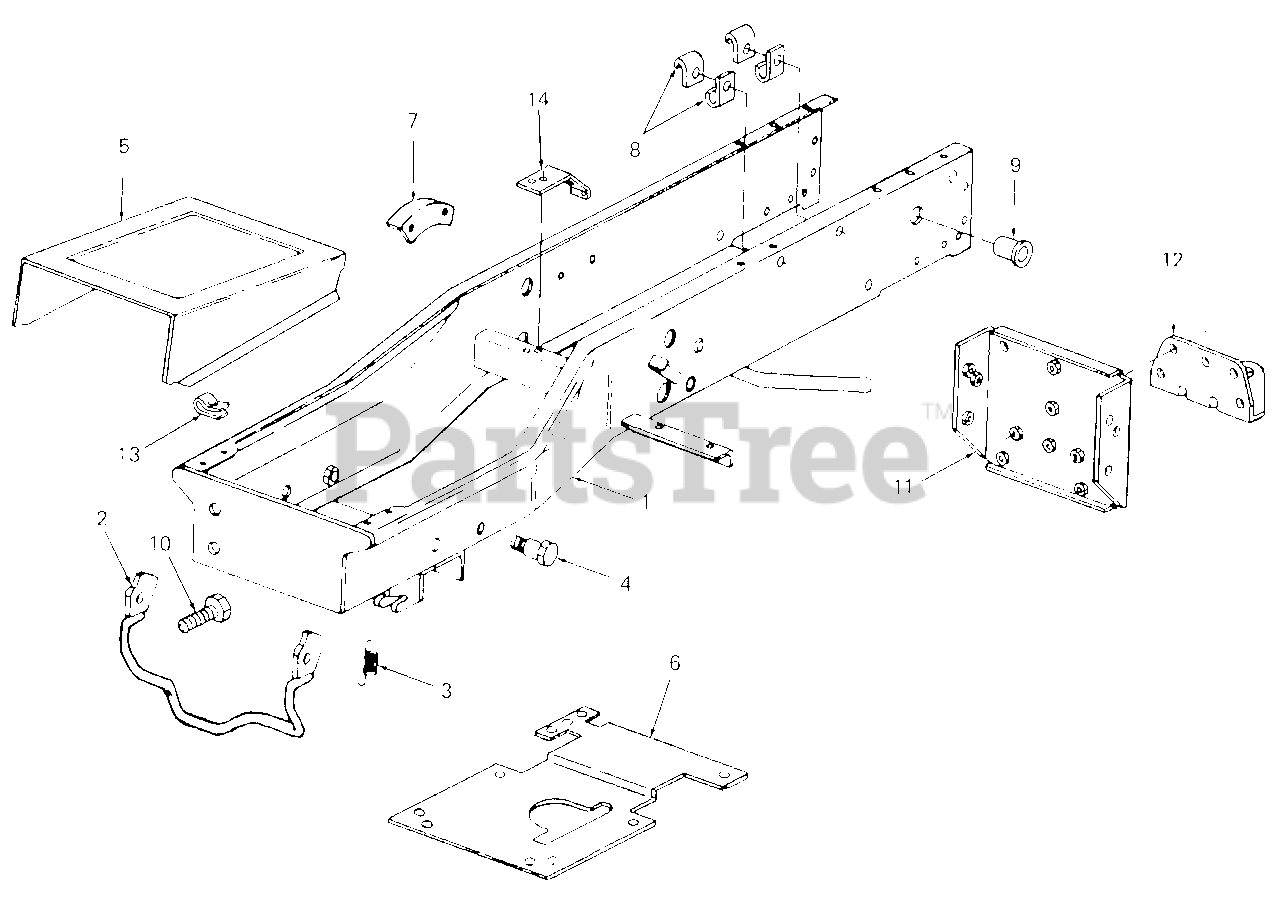

1861 (140-671-100) - Cub Cadet Garden Tractor (SN: 821060 - 836000) Frame Parts Diagram

Garden Tractor

Frame Parts Diagram

  • Title

1

Cub Cadet 603-0021

Frame Assy

Variations

Cub Cadet 603-0021-0498

FRAME ASSEMBLY-GT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 711-3005

Bushing, Front Axle Pivot Pin

$

$

Not available

Cub Cadet 779-3334

Label, Do Not Tow

$

$

Not available

2

Cub Cadet 703-1726

Latch Assy, Quick
(Superseded to 703-1726-0498)

Variations

Cub Cadet 703-1726-0498

LATCH ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 711-3010

Pin, Clevis, 3/8 Dia X 1.06 Lg
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, Qty 12

0

3

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

4

Cub Cadet 738-3001

Bolt, Shoulder

$

$

Not available

Cub Cadet 736-3003

Washer, Flat, .531 X .688 X .054 Thk

$

$

Not available

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 759-3641

Cover, Frame w/Graphic

$

$

Not available

Cub Cadet 779-3575

Graphic, Caution

$

$

Not available

Cub Cadet 779-3559

Graphic, Dump Valve

$

$

Not available

Cub Cadet 710-0589

Screw, Hex Wash Hd Tapp, #10 X .75 Lg

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2157

Baffle, Lower Frame

Variations

Cub Cadet 703-2157-0498

BAFFLE-LOWER FRAME(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-0776A

Screw, Hex AB Tapp, 1/4 X .62 Lg
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 703-0828

Bracket, Height Indicator

$

$

Currently unavailable

Cub Cadet 779-3533

Graphic, Lift Height Indicator
(Superseded to 779-3533A)

$

$

Not available

Cub Cadet 728-0141

Rivet, .156 Dia X .250 Lg

$

$

Not available

8

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3039

Screw, Hex Cap, 5/16-18 X .50 Lg GR5

$

$

Not available

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 723-3042

Bushing, Snap

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 710-3182

Screw, Adjustment, 1/2-20 X 1.0 Lg GR5

$

$

Not available

Cub Cadet 712-3029

Nut, Hex Jam, 1/2-20 GR5

$6.99

$

In Stock, Qty 6

0

11

Cub Cadet 703-1943A

Plate Assy, Hitch

Variations

Cub Cadet 703-1943A-0498

PLATE ASSEMBLY-HITCH - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 703-0904

Draw Bar
(Superseded to 703-0904-0498)

Variations

Cub Cadet 703-0904-0498

BAR-DRAW - OLD CUB YELLOW (0498)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 726-3039

Nut, Speed

$

$

Not available

14

Cub Cadet 703-0026B

Bracket, Switch
(Superseded to 703-0026C)

$

$

Not available

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 19

0
