1861 (140-671-100) - Cub Cadet Garden Tractor (SN: 821060 - 836000) Electrical Parts Diagram

Garden Tractor

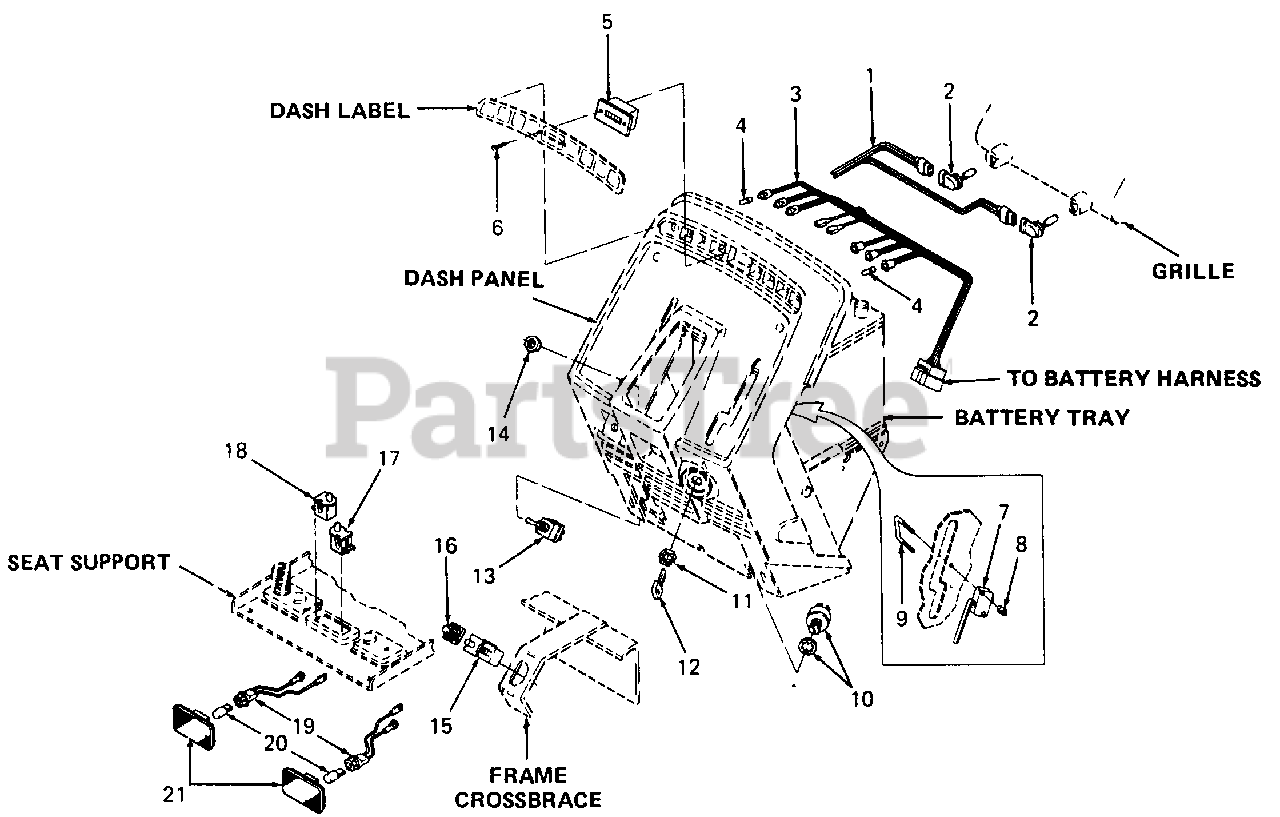

Electrical Parts Diagram

  • Title

1

Cub Cadet 725-3213

Harness, Main Wire

$

$

Not available

2

Cub Cadet 925-3161A

Bulb, Head Lamp

$52.99

$

In Stock, only 2 left!

0

3

Cub Cadet 725-3185

Harness, Indicator Wire

$

$

Not available

4

Cub Cadet 925-1365

Bulb, Indicator

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet 925-3159

Hour Meter

$

$

Not available

6

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 X .62 Lg

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 925-3066

Switch, Reverse

$

$

Not available

8

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

9

Cub Cadet 711-3259

Screw, Switch

Note: NLA

$

$

Not available

10

Cub Cadet 925-3163

Switch, Ignition

$48.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3013

Nut, Ignition Switch

$

$

Not available

12

Cub Cadet 959-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

13

Cub Cadet 925-0893

Switch, PTO

$82.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-3014

Nut, Hex, 1/2-27 X .100 Thk

$

$

Not available

15

Cub Cadet 925-3164A

Switch, Interlock

$40.99

$

In Stock, Qty 20+

0

16

Cub Cadet 735-3036

Boot, Switch

$

$

Not available

17

Cub Cadet 925-3166

Switch, Snap Mount Normally Closed (Grey)

$16.99

$

In Stock, Qty 20+

0

18

Cub Cadet 925-3167

Switch, Snap Mount Normally Open (Black)

$14.99

$

In Stock, only 2 left!

0

19

Cub Cadet 725-3019

Cable Assy, Tail Light

$

$

Not available

20

Cub Cadet 925-3020

Bulb, Tail Light

$

$

Not available

21

Cub Cadet 725-3018

Lens Assy, Tail Light

Note: NLA

$

$

Currently unavailable

Cub Cadet 710-3003

Screw, Pan Hd, #8-32 X .75 Lg

$

$

Not available

Cub Cadet 736-3018

Washer, Int-Ext Lock, #8

Note: NLA

$

$

Not available

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 10

0
