186-407-190 - White Outdoor 19" Walk-Behind Mower, Electric (1996) Main Assembly Parts Diagram

19" Walk-Behind Mower, Electric

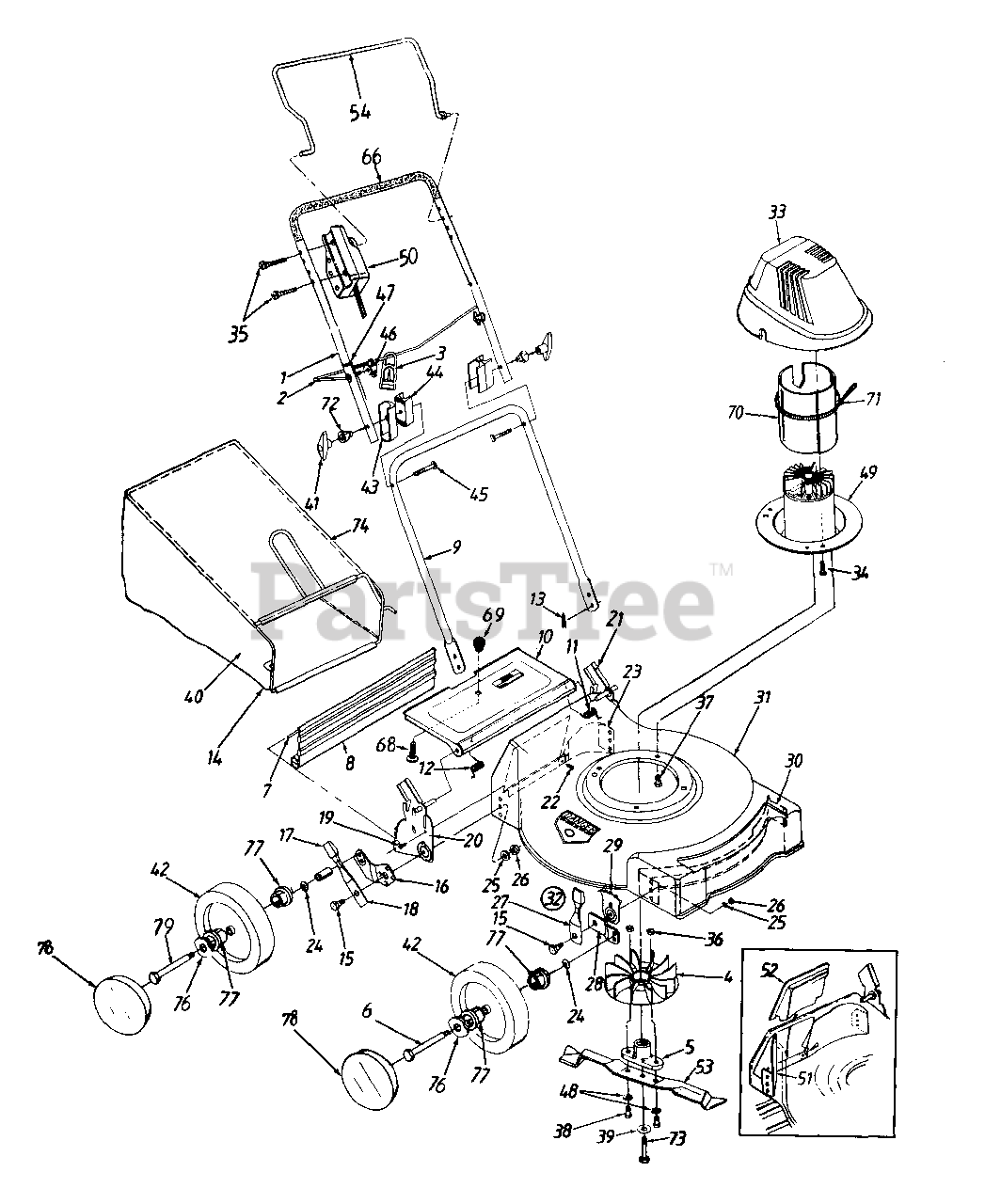

Main Assembly Parts Diagram

  • Title

1

MTD 749-0883

Upper Handle

Note: NLA

Variations

MTD 749-0883-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 747-1094

Cord Control Rod

$

$

Not available

3

MTD 725-1590

Strain Relief - Cord

Note: NLA

$

$

Not available

4

MTD 731-1270

Fan

Note: NLA

$

$

Not available

5

MTD 748-0356

Blade Adapter

$

$

Not available

6

MTD 938-0102

Front Axle Bolt
(Superseded to 738-0102)

$

$

Not available

7

MTD 732-0712

Rear Flap Wire

$

$

Not available

8

MTD 731-1261

Rear Flap

$

$

Not available

9

MTD 749-0885-0637

Lower Handle

$

$

Not available

10

MTD 782-7025-0637

Chute Door

$

$

Not available

11

MTD 932-0677

Door Spring - L.H.

$

$

Not available

12

MTD 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

13

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

14

MTD 764-0326

Front Catcher Frame

Note: NLA

Variations

MTD 764-0326-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 938-0507B

Shld. Bolt .5" Dia. x .434"
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

16

MTD 14765

Pivot Bar - R.H.

$19.99

$

Usually ships in 3-6 days

0

16

MTD 14766

Pivot Bar - L.H.

$19.99

$

Usually ships in 3-6 days

0

17

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

18

MTD 732-0417A

Spring Lever

$

$

Not available

19

MTD 910-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.

$

$

Not available

20

MTD 682-0516-0637

Handle Brkt. Ass'y. - R.H.

$

$

Not available

21

MTD 753-05994

Handle Brkt. Ass'y. - L.H.

$82.99

$

Usually ships in 3-6 days

0

22

MTD 710-1017

Torx . Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

23

MTD 782-5026-0637

Rear Baffle

$

$

Not available

24

MTD 736-0105

Bell-Wash..38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 936-0356

Bell-Wash..39" I.D. x 1.38" O.D.

$

$

Not available

26

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

27

MTD 94832

Spring Lever Ass'y. w/Knob

$10.99

$

In Stock, only 3 left!

0

28

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

29

MTD 787-01290A

Height Adj. Plate

$12.99

$

In Stock, only 2 left!

0

30

MTD 782-5025-0637

Front Baffle

$

$

Not available

31

MTD 782-0054B

19" Deck

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 782-0054B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0054B-0629

DECK ASM-19" MULCH - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0054B-0638

DECK ASM-19" MULCH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0054B-0689

DECK ASM-19" MULCH - POLO GREEN (0689)

$

$

Not available

MTD 782-0054B-0709

DECK ASM-19" MULCH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

32

MTD 753-06761

Height Adj. Ass'y. Comp. - R.H.

$65.99

$

In Stock, Qty 7

0

32

MTD 753-06761

Height Adj. Ass'y. Comp. - L.H.

$65.99

$

In Stock, Qty 7

0

33

MTD 731-1475

Motor Cover

Note: NLA

$

$

Not available

34

MTD 710-1128

Scr. #10-16 x .75" Lg.

$

$

Not available

35

MTD 710-0605

C-Sunk Scr. 1/4-20 x 1.8" Lg.

$4.49

$

In Stock, only 2 left!

0

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

37

MTD 910-1006

Hex L-Wash. TT-Tap Scr. 3/8-16 x .75" Lg.

$

$

Not available

38

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

39

MTD 936-0452

Bell-Wash. .396" I.D. x 1.14"
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

40

MTD 764-0446

Grass Bag

Note: NLA

$

$

Not available

41

MTD 720-04072A

Plastic Knob

$6.99

$

In Stock, Qty 20+

0

42

MTD 734-1793

Wheel Ass'y. Comp.

Note: NLA

$

$

Not available

43

MTD 731-1268

Upper Handle Insulator

$16.99

$

Usually ships in 3-6 days

0

44

MTD 731-1267

Lower Handle Insulator

$

$

Not available

45

MTD 710-0450

Carriage Bolt 5/16-18 x 3" Lg.

$6.49

$

Usually ships in 3-6 days

0

46

MTD 712-0397A

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

47

MTD 726-0303

Cable Tie

Note: NLA

$

$

Not available

48

MTD 736-0331

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 818-60014

Motor, Cord & Switch Ass'y.

Note: NLA

$

$

Not available

50

MTD 625-0018A

Cord & Switch Ass'y. Comp.

Note: NLA

$

$

Not available

51

MTD 782-5004B

Mulching Baffle - R.R.

$24.99

$

Usually ships in 3-6 days

0

52

MTD 782-5007C

Mulching Baffle Plug

$52.99

$

In Stock, only 1 left!

0

53

MTD 942-0719

19" Mulching Blade

$34.99

$

Usually ships in 3-6 days

0

54

MTD 747-0622-0637

Control Handle

$

$

Not available

66

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

68

MTD 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

69

MTD 720-0275

Knob

$

$

Not available

70

MTD 721-0311

Insulator

Note: NLA

$

$

Not available

71

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

72

MTD 731-1388

Insulator Knob

$

$

Not available

73

MTD 710-1251

Hex Bolt 3/8-24 x 2.5" Lg.

$

$

Not available

74

MTD 764-0325-0637

Rear Catcher Frame

$

$

Not available

76

MTD 936-0504

Wave Washer

$4.49

$

In Stock, Qty 9

0

77

MTD 941-0484

Bell Bearing

$7.49

$

In Stock, only 1 left!

0

78

MTD 731-0981C

Hub Cap

$10.99

$

In Stock, only 2 left!

0

79

MTD 738-0213

Rear Axle Bolt

$7.99

$

In Stock, only 2 left!

0

80

MTD 950-0535

Spacer

$4.49

$

In Stock, Qty 20+

0
