18560 - Toro 52" GrandStand Revolution Stand-On Mower (SN: 400000000 - 412799999) Control Panel and Harness Assembly Parts Diagram

52" GrandStand Revolution Stand-On Mower

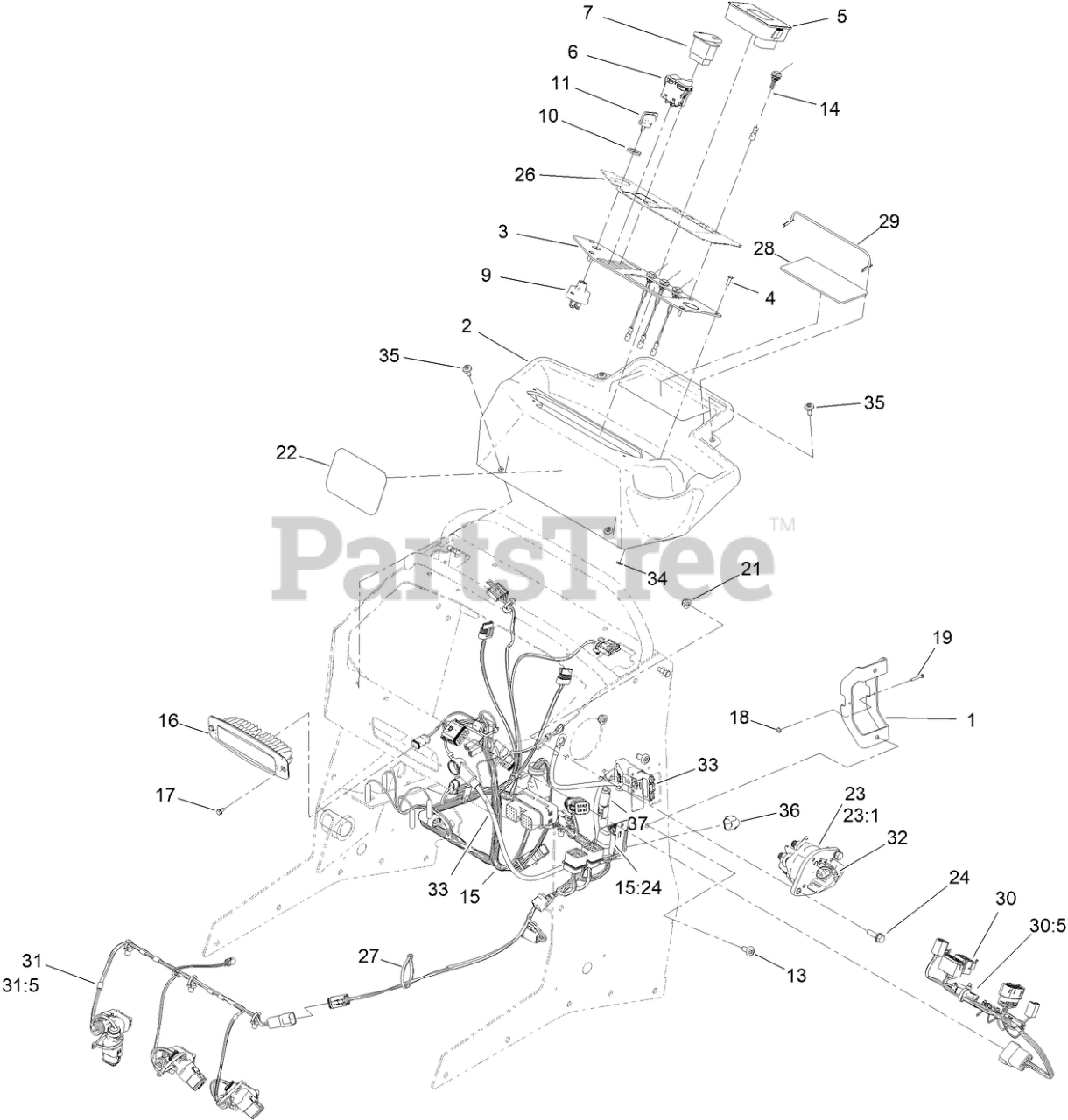

Control Panel and Harness Assembly Parts Diagram

  • Title

1

Toro 145-3597-03

BRACKET-CHARGER, DUAL

$28.99

$

Usually ships in 3-6 days

0

2

Toro 144-1576

DASH-CONTROL PANEL

$425.99

$

Usually ships in 0 days

0

3

Toro 147-1685-03

PLATE-CONTROL PANEL

$23.99

$

Usually ships in 0 days

0

4

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

5

Toro 122-1201

TDM 2002

$203.99

$

Usually ships in 3-6 days

0

6

Toro 139-6367

SWITCH-ROCKER, (ON)-ON-OFF

$35.99

$

In Stock, only 2 left!

0

7

Toro 95-8999

SWITCH

$44.99

$

In Stock, only 1 left!

0

9

Toro 139-7716

SWITCH-KEY, SPST

$42.99

$

Usually ships in 3-6 days

0

10

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

11

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

13

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

14

Toro 136-9678

SWITCH-PUSHBUTTON

$58.99

$

Usually ships in 3-6 days

0

15

Toro 140-9567

HARNESS-WIRE, MAIN

$1258.99

$

Usually ships in 0 days

0

15:24

Toro 121-8861

FUSE-MINI BLADE, 2 AMP

$4.49

$

Usually ships in 3-6 days

0

15:25

Toro 121-8864

FUSE-MINI BLADE, 5 AMP

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

16

Toro 139-8089

MOUNT-FLUSH, LIGHT

$95.99

$

Usually ships in 3-6 days

0

17

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

19

Toro 32105-9

SCREW

$1.49

$

In Stock, Qty 9

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

22

Toro 94-2579

DECAL

$12.99

$

Usually ships in 3-6 days

0

23

Toro 122-0603

SWITCH-DISCONNECT

$274.99

$

Usually ships in 3-6 days

0

23:1

Toro 33006-00

NUT-HF

$1.99

$

Usually ships in 3-6 days

0

24

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

26

Toro 147-1686

DECAL-PANEL, CONTROL

$15.99

$

Usually ships in 0 days

0

27

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

28

Toro 145-3410

PAD-RUBBER, W/ADHESIVE

$9.49

$

Usually ships in 0 days

0

29

Toro 144-6973

STRAP-ELASTIC

$3.99

$

Usually ships in 0 days

0

30

Toro 145-3411

HARNESS-WIRE, CONTROL PANEL

$352.99

$

Usually ships in 0 days

0

30:5

Toro 32180-282

RESISTOR-120 OHM

$27.99

$

Usually ships in 3-6 days

0

31

Toro 145-3412

HARNESS-WIRE, DECK

$755.99

$

Usually ships in 0 days

0

31:5

Toro 32180-282

RESISTOR-120 OHM

$27.99

$

Usually ships in 3-6 days

0

32

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

33

Toro 140-9596

HARNESS-WIRE, CHARGER PORT

$888.99

$

Usually ships in 0 days

0

34

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

35

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

36

Toro 32180-089

CAP-PLUG, 3 WAY

$3.99

$

Usually ships in 3-6 days

0

37

Toro 112-1540

FERRITE-SNAP ON

$23.99

$

Usually ships in 3-6 days

0
