1855 A (80928) - Snapper Garden Tractor, 18hp Steering Gear Parts Diagram

Garden Tractor, 18hp

Steering Gear Parts Diagram

  • Title
1

Snapper 19854

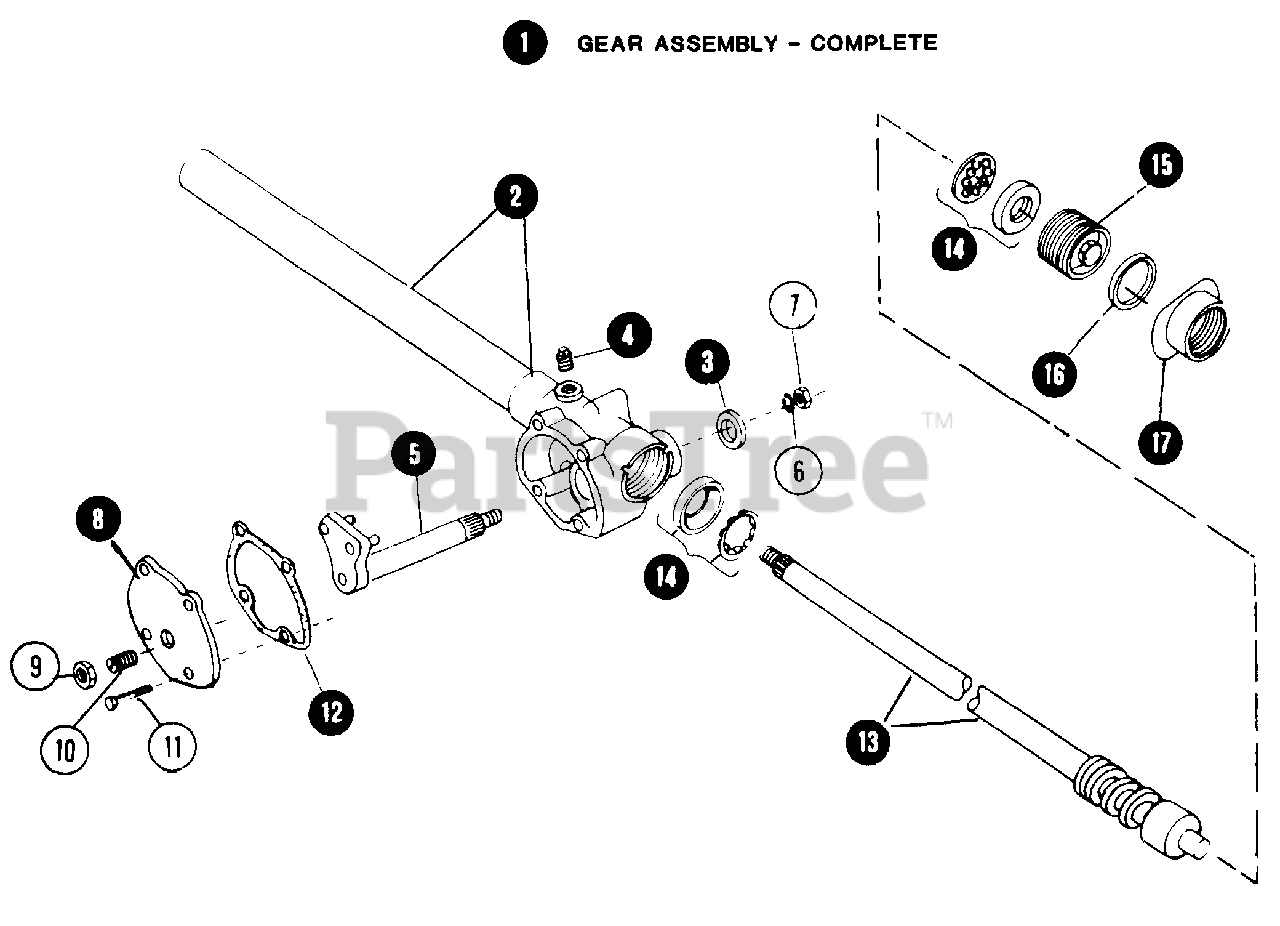

STEERING GEAR ASSEMBLY

Note: (INCLUDES FOLLOWING)

$

$

Currently unavailable

2

Snapper 13751

HOUSING - ASSEMBLY

Note: (INCLUDES ITEM 3)

$

$

Currently unavailable

3

Snapper 7013061

SEAL, OIL

$

$

Currently unavailable

4

Snapper 13752

PLUG, 1/4 PIPE

$

$

Currently unavailable

5

Snapper 13756

SHAFT, LEVER - ASSEMBLY

$

$

Currently unavailable

6

Snapper 7090333

WASHER, 5/8 LOCK
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

7

Snapper 7090658

NUT, 5/8 N.F. HEX
(Superseded to 703904)

$4.99

$

In Stock, Qty 19

0

8

Snapper 13064

COVER, SIDE

$

$

Currently unavailable

9

Snapper 13758

NUT, ADJUSTING SCREW LOCK

$

$

Currently unavailable

10

Snapper 13757

SCREW, ADJUSTING

$

$

Currently unavailable

11

Snapper 13065

BOLT, COVER RETAINING

$

$

Currently unavailable

12

Snapper 13759

GASKET, SIDE COVER TO HOUSING

$

$

Currently unavailable

13

Snapper 13754

CAM & TUBE ASSEMBLY

$

$

Currently unavailable

14

Snapper 13716

KIT, BALL & CUP

Note: (2 REQUIRED)

$

$

Currently unavailable

15

Snapper 13062

PLUG, HOUSING END

$

$

Currently unavailable

16

Snapper 13753

SEAL, HOUSING END PLUG

$

$

Currently unavailable

17

Snapper 13063

NUT, END PLUG LOCK

$

$

Currently unavailable
