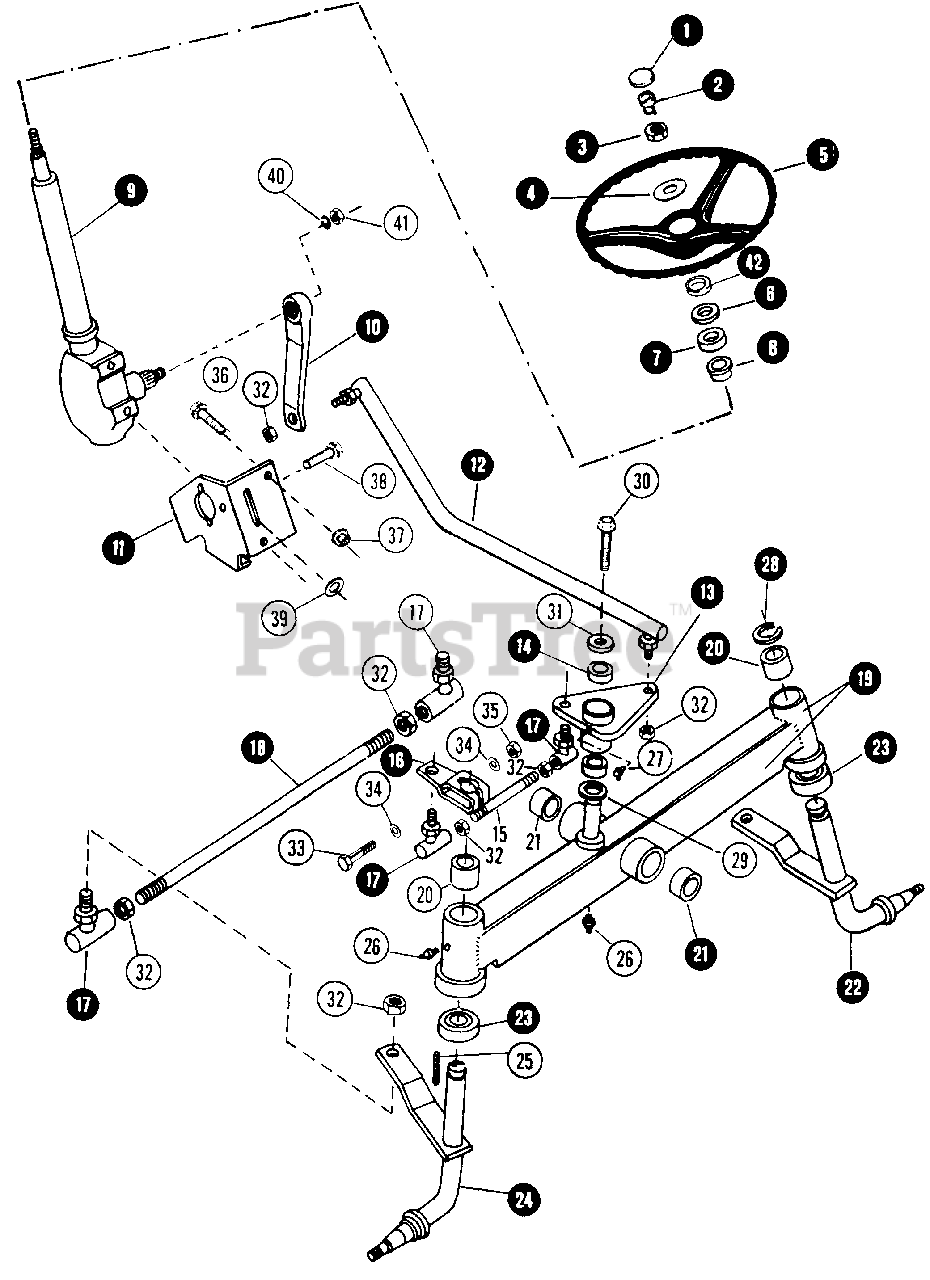

1855 A (80928) - Snapper Garden Tractor, 18hp Steering, Front Suspension Parts Diagram

Garden Tractor, 18hp

Steering, Front Suspension Parts Diagram

  • Title

1

Snapper 7013894

PLATE, SNAPPER EMBLEM

$

$

Not available

2

Snapper 7012667

TAPER - PLUG

$

$

Not available

3

Snapper 7090278

NUT, 5/8 NF HEX

$

$

Not available

4

Snapper 7090183

WASHER, 5/8 FLAT
(Superseded to 7090183YP)

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7019820

WHEEL, STEERING

$

$

Not available

6

Snapper 12654

COVER, DUST

$

$

Currently unavailable

7

Snapper 32013

CAP, STEERING COLUMN

$

$

Currently unavailable

8

Snapper 18282

BEARING, STEERING

$

$

Currently unavailable

9

Snapper 19854

STEERING GEAR-ASSEMBLY

Note: (SEE "STEERING GEAR" ILLUSTRATION & PARTS LIST FOR COMPONENTS)

$

$

Currently unavailable

10

Snapper 18323

ARM, STEERING PITMAN

$

$

Currently unavailable

11

Snapper 49837

BRACKET GEAR MOUNTING
(Superseded to 5049837B)

$77.99

$

Usually ships in 2-12 days

0

12

Snapper 19639

LINK, DRAG

$

$

Currently unavailable

13

Snapper 57255

ARM, LEVER - ASSEMBLY

Note: (INCLUDES TWO ITEM 14)

$

$

Currently unavailable

14

Snapper 7018289

BUSHING, LEVER ARM
(Superseded to 7018289YP)

$38.99

$

Usually ships in 2-12 days

0

15

Snapper 7018318

TIE-ROD STEERING
(Superseded to 7018318YP)

$8.99

$

In Stock, only 1 left!

0

16

Snapper 39662

ARM, STEERING

$

$

Currently unavailable

17

Snapper 7018278

BALL-JOINT, STEERING

$45.99

$

Usually ships in 2-12 days

0

18

Snapper 18317

TIE-ROD, STEERING

$

$

Currently unavailable

19

Snapper 59542

FRONT-AXLE ASSEMBLY

Note: (INCLUDES TWO EACH ITEM 20 & 21)

$

$

Currently unavailable

20

Snapper 7012761

BUSHING, SPINDLE

$

$

Not available

21

Snapper 12762

BUSHING, AXLE

$

$

Currently unavailable

22

Snapper 49600

SPINDLE, LEFT AXLE

$

$

Currently unavailable

23

Snapper 18316

BEARING, SPINDLE BALL

$

$

Currently unavailable

24

Snapper 49834

SPINDLE, RIGHT AXLE

$

$

Currently unavailable

25

Snapper 7012757

KEY, 1/4 SQUARE x 1-1/4
(Superseded to 7012757YP)

$10.99

$

Usually ships in 2-12 days

0

26

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7013324

FITTING, GREASE DRIVE-IN
(Superseded to 7013324YP)

$7.99

$

In Stock, Qty 6

0

28

Snapper 7012730

RING, SPINDLE RETAINING
(Superseded to 7012730YP)

$3.99

$

In Stock, only 2 left!

0

29

Snapper 12704

WASHER, LEVER ARM THRUST

$

$

Currently unavailable

30

Snapper 7091588

BOLT, 3/8C x 3/4 HEX FLANGE
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

31

Snapper 7037776

WASHER, LEVER ARM

$

$

Not available

32

Snapper 7090559

NUT, 1/2 NF HALF HEX
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7090637

BOLT, 3/8C x 2-1/2 HEX HEAD
(Superseded to 7090637YP)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7032030

WASHER 3/8 FLAT
(Superseded to 7032030SM)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7091302

NUT, 3/8C HEX
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

36

Snapper 7090659

BOLT, 3/8C x 1-1/4 HEX FLANGE
(Superseded to 7090659YP)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7091619

NUT, 3/8C HEX FLANGE
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

38

Snapper 90660

BOLT, 7/16C x 3/4 HEX FLANGE

$

$

Currently unavailable

39

Snapper 7032012

WASHER, 13/32 x 1 x 1/8
(Superseded to 7021746YP)

$3.99

$

In Stock, Qty 11

0

40

Snapper 7090333

WASHER, 5/8 LOCK
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

41

Snapper 7090658

NUT, 5/8 NF HEX
(Superseded to 703904)

$4.99

$

In Stock, Qty 20+

0

42

Snapper 7012677

SLEEVE, STEERING

$

$

Currently unavailable
