1855 A (80928) - Snapper Garden Tractor, 18hp Rear Power Take-Off Parts Diagram

Garden Tractor, 18hp

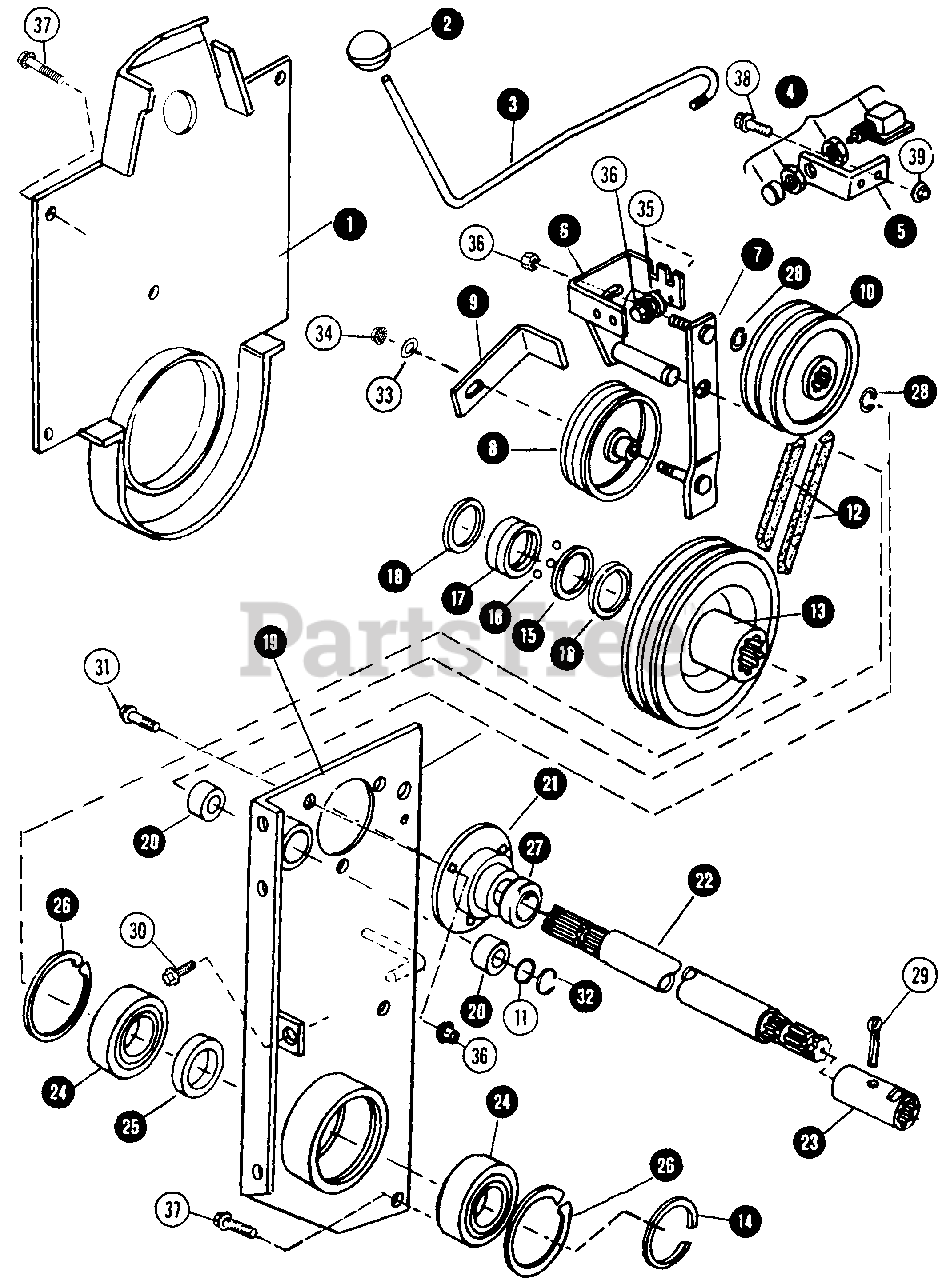

Rear Power Take-Off Parts Diagram

  • Title

1

Snapper 7049850

COVER, REAR P.T.O.

$

$

Currently unavailable

2

Snapper 7018360

KNOB, REAR P.T.O. LEVER

$

$

Currently unavailable

3

Snapper 7019577

LEVER, P.T.O. CONTROL

$

$

Currently unavailable

4

Snapper 7012668

INTERLOCK, REAR P.T.O. - ASSEMBLY
(Superseded to 7012668YP)

$33.99

$

Usually ships in 2-12 days

0

5

Snapper 7037867

BRACKET, INTERLOCK MOUNTING

$

$

Currently unavailable

6

Snapper 7049610

BRACKET, CONTROL LEVER

$

$

Currently unavailable

7

Snapper 7047754

ARM, IDLER

$

$

Currently unavailable

8

Snapper 7018326

PULLEY P.T.O. IDLER, 3/8" ID, 4.0" OD, 1.25" Wide

$26.99

$

Usually ships in 2-12 days

0

9

Snapper 7039675

GUIDE, V-BELT

$

$

Not available

10

Snapper 7049590

PULLEY, P.T.O. DRIVE
(Superseded to 7049590YP)

$152.99

$

Usually ships in 2-12 days

0

11

Snapper 7012855

SHIM, .632 I.D. x .020"

$

$

Currently unavailable

12

Snapper 7019607

V-BELTS (MATCHED SET)

$46.99

$

Usually ships in 2-12 days

0

13

Snapper 7019886

PULLEY, REAR P.T.O.

$

$

Currently unavailable

14

Snapper 7012856

RING, PULLEY RETAINING

$

$

Currently unavailable

15

Snapper 7018361

SPRING SLIDING RETAINING

$

$

Not available

16

Snapper 7012854

SALL, LOCK COLLAR BEARINGS (3/8 DIA.)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper 7019609

COLLAR, P.T.O. SHAFT LOCK

$

$

Not available

18

Snapper 7018362

RING, LOCK COLLAR RETAINING

$

$

Not available

19

Snapper 7059546

PLATE, P.T.O. MOUNTING ASSEMBLY

Note: (INCLUDES TWO ITEM 20)

$

$

Currently unavailable

20

Snapper 7012746

BUSHING MOUNTING PLATE
(Superseded to 7012746YP)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7018547

BEARING, 3 Hole Flanged Lock Collar Assy., 3/4" ID
(Superseded to 7018547YP)

Note: Was 19608

$170.99

$

Usually ships in 2-12 days

0

22

Snapper 7049654

SHAFT, REAR P.T.O. DRIVE

$

$

Currently unavailable

23

Snapper 7027502

COUPLING, P.T.O. DRIVE SHAFT

$

$

Not available

24

Snapper 7012857

BEARING, P.T.O. PULLEY, 1.37" ID, 2.83" OD, .66" Wide

Note: 6207-RS

$

$

Currently unavailable

25

Snapper 7027573

SPACER, BEARING

$

$

Currently unavailable

26

Snapper 7019610

RING, BEARING RETAINING

$

$

Currently unavailable

27

Snapper 7027574

SPACER, P.T.O. SHAFT

$

$

Not available

28

Snapper 7012899

RING, SHAFT RETAINING

$2.99

$

In Stock, only 1 left!

0

29

Snapper 7090589

COTTER-PIN, 1/4 x 1-1/2"
(Superseded to 7090589YP)

$4.99

$

In Stock, only 1 left!

0

30

Snapper 7090680

BOLT, 1/2C x 3/4 HEX FLANGE

$3.49

$

In Stock, only 4 left!

0

31

Snapper 7090607

BOLT, 5/16C x 1/8 HEX FLANGE

$

$

Currently unavailable

32

Snapper 7012744

RING, RETAINING

$

$

Not available

33

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7091619

NUT, 3/8C HEX FLANGE
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

35

Snapper 7021805

SPACER, CONTROL LEVER BRACKET

$

$

Currently unavailable

36

Snapper 7091601

NUT, 5/16C HEX FLANGE LOCK
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

37

Snapper 7091588

BOLT, 3/8C x 3/4 HEX FLANGE
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

38

Snapper 7090584

BOLT, 1/4C x 1/2 HEX FLANGE LOCK
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7091584

NUT, 1/4C HEX FLANGE LOCK
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0
