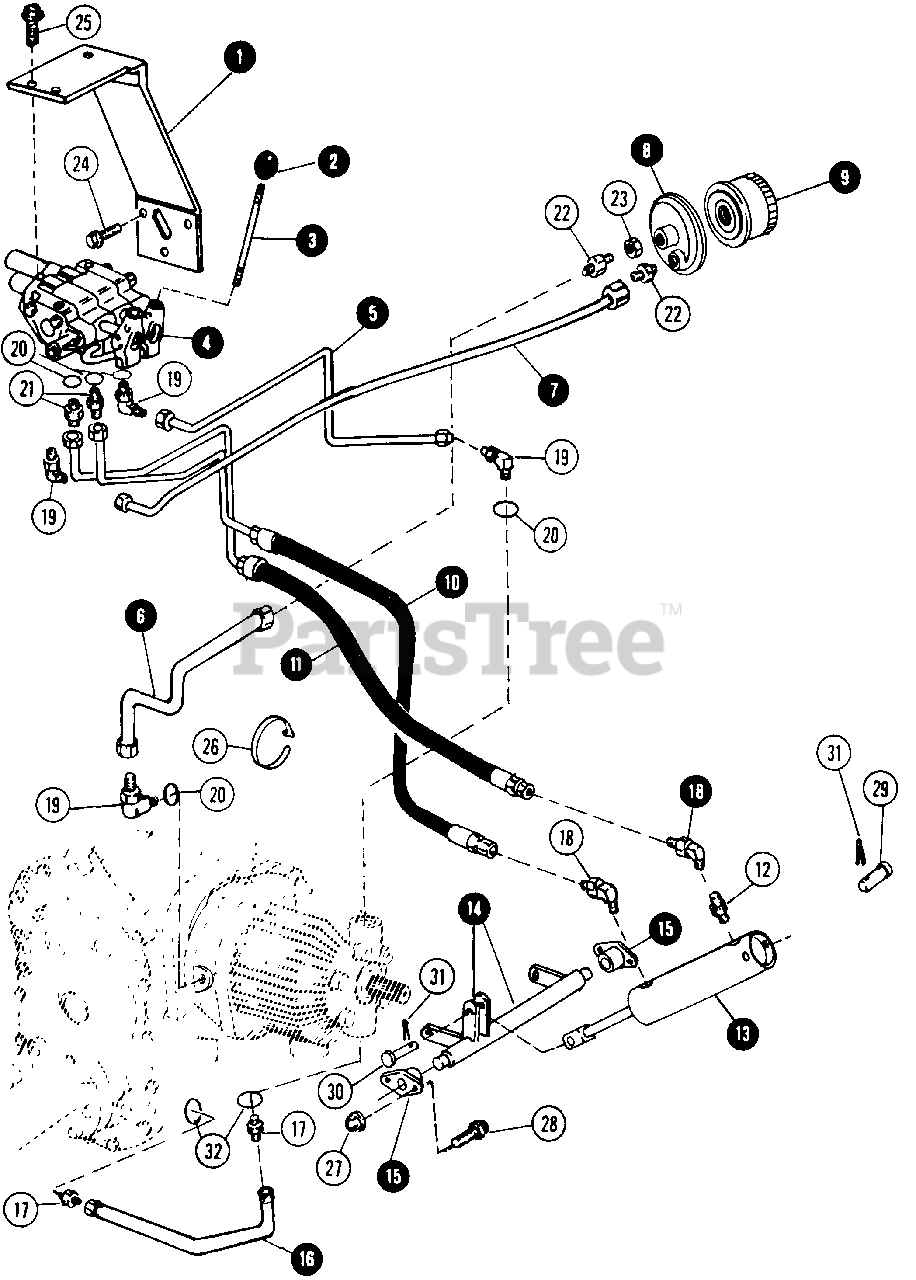

1855 A (80928) - Snapper Garden Tractor, 18hp Hydraulic Lift System (Mid-Mount) Parts Diagram

Garden Tractor, 18hp

Hydraulic Lift System (Mid-Mount) Parts Diagram

  • Title

1

Snapper 49839

BRACKET, VALVE SUPPORT
(Superseded to 5049839B)

$216.99

$

Usually ships in 2-12 days

0

2

Snapper 7018271

KNOB, CONTROL HANDLE

$

$

Not available

3

Snapper 7027525

HANDLE, VALVE CONTROL
(Superseded to 7027525YP)

$5.49

$

In Stock, only 1 left!

0

4

Snapper 7019870

VALVE, 2-SPOOL

Note: (SEE "HYDRAULIC VALVE - 2 SPOOL" ILLUSTRATION & PARTS LIST.)

$

$

Currently unavailable

5

Snapper 7019650

TUBE, CHARGE PUMP TO VALVE

$

$

Currently unavailable

6

Snapper 19647

TUBE, FILTER TO TRANSMISSION

$

$

Currently unavailable

7

Snapper 19648

TUBE, VALVE TO FILTER

$

$

Currently unavailable

8

Snapper 7018335

BASE, OIL FILTER
(Superseded to 7018335YP)

$32.99

$

Usually ships in 2-12 days

0

9

Snapper 7018334

FILTER, HYDRAULIC OIL

$

$

Not available

10

Snapper 19847

HOSE-TUBE, VALVE TO CYLINDER - ROD END

$

$

Currently unavailable

11

Snapper 19848

HOSE-TUBE, VALVE TO CYLINDER - HEAD END

$

$

Currently unavailable

12

Snapper 12753

CONNECTOR, 1/4P.T. x 9/16-18 STRAIGHT THREAD

$

$

Currently unavailable

13

Snapper 7019565

CYLINDER, MID-MOUNT LIFT

Note: (SEE "HYDRAULIC CYLINDER - MID-MOUNT LIFT" ILLUSTRATION & PARTS LISTS.)

$

$

Currently unavailable

14

Snapper 49832

SHAFT, LIFT

$

$

Currently unavailable

15

Snapper 18277

BEARING, LIFT SHAFT

$

$

Currently unavailable

16

Snapper 19866

TUBE, TRANSAXLE TO TRANSMISSION

$

$

Currently unavailable

17

Snapper 12767

CONNECTOR, 7/8-14 STRAIGHT THREAD

$

$

Currently unavailable

18

Snapper 12754

ELBOW, 90 DEGREE 1/4P.T. x 9/16-18 STRAIGHT THREAD

$

$

Currently unavailable

19

Snapper 12764

ELBOW, 90 DEGREE 9/16-18 STRAIGHT HEAD

$

$

Currently unavailable

20

Snapper 7013906

O-RING, 906 (.08 x .47 I.D.)

$

$

Currently unavailable

21

Snapper 12773

CONNECTOR, 9/16-18 STRAIGHT THREAD

$

$

Currently unavailable

22

Snapper 12753

CONNECTOR

$

$

Currently unavailable

23

Snapper 7090283

NUT, 3/4 HALF HEX

$

$

Not available

24

Snapper 7090620

BOLT, 3/8C x 7/8 HEX FLANGE LOCK

$

$

Not available

25

Snapper 7090661

BOLT, 5/16C x 1 HEX FLANGE LOCK

$

$

Not available

26

Snapper 7018332

STRAP, HOSE RETAINER

Note: Was 12660

$

$

Not available

27

Snapper 7091619

NUT, 3/8C x 1 HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

28

Snapper 7027198

BOLT, 3/8C x 1 HEX FLANGE LOCK
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 3 left!

0

29

Snapper 7012756

CLEVIS-PIN, 1/2 x 3-7/16

$

$

Currently unavailable

30

Snapper 7012751

CLEVIS-PIN, 1/2 x 1-7/8

$

$

Not available

31

Snapper 7091598

COTTER-PIN, 1/8 x 1"
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

32

Snapper 13908

O-RING, 910 (.10 x .75 I.D.)

$

$

Currently unavailable
