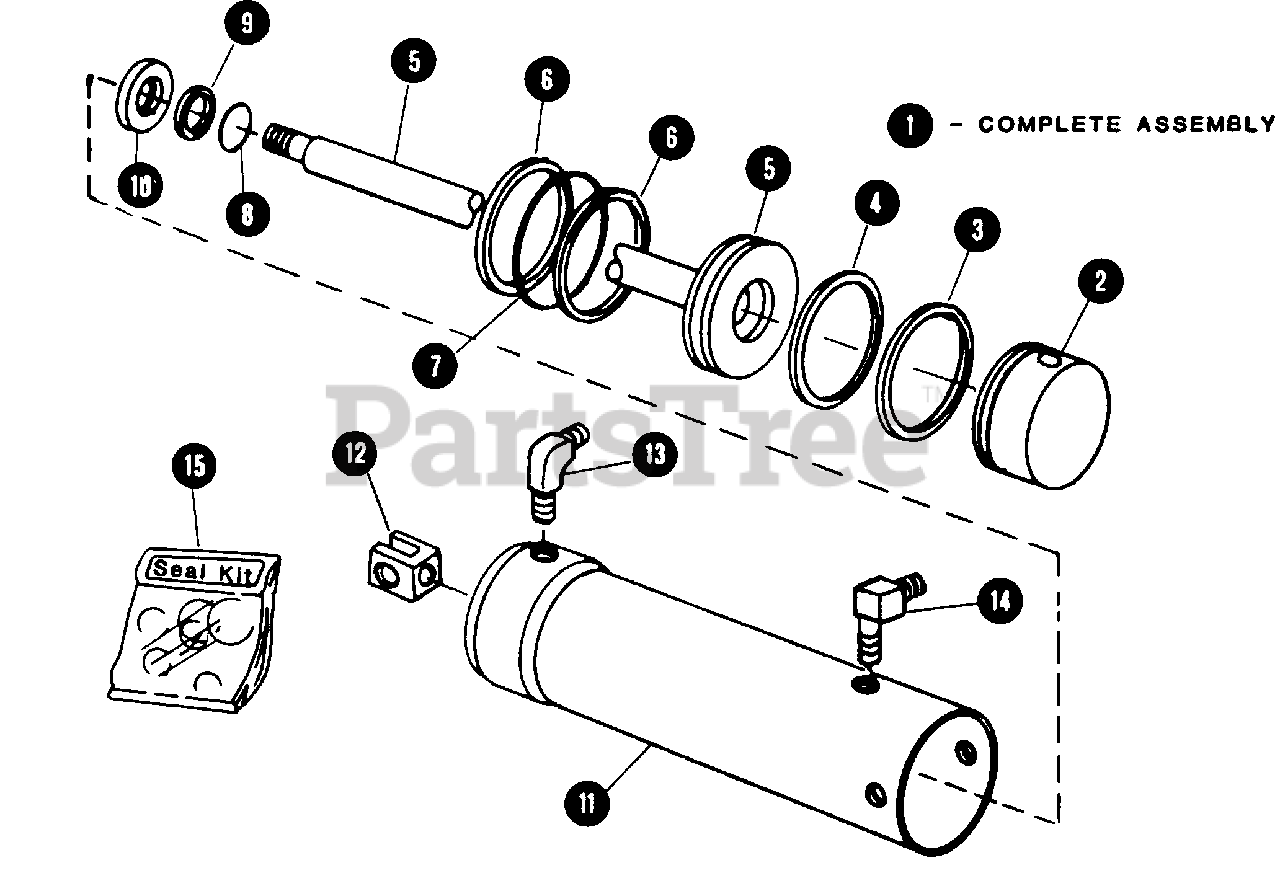

1855 A (80928) - Snapper Garden Tractor, 18hp Hydraulic Cylinder - Rear Lift Type B - Victor Parts Diagram

Garden Tractor, 18hp

Hydraulic Cylinder - Rear Lift Type B - Victor Parts Diagram

  • Title

1

Snapper 7019611

CYLINDER, REAR LIFT ASSEMBLY

Note: (INCLUDES ITEMS 2 THRU 11)

$

$

Currently unavailable

2

Snapper 12979

HEAD, CYLINDER

$

$

Currently unavailable

3

WASHER, HEAD O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 15)

$

$

Not available

4

O-RING, CYLINDER HEAD

Note: (PART OF SEAL KIT ITEM 15)

$

$

Not available

5

Snapper 13839

PISTON-ROD ASSEMBLY

$

$

Currently unavailable

6

WASHER, PISTON O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 15)

$

$

Not available

7

O-RING, PISTON

Note: (PART OF SEAL KIT ITEM 15)

$

$

Not available

8

O-RING, PISTON ROD SEAL

Note: (PART OF SEAL KIT ITEM 15)

$

$

Not available

9

WASHER, SEAL O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 15)

$

$

Not available

10

WIPER, PISTON ROD

Note: (PART OF SEAL KIT ITEM 15)

$

$

Not available

11

Snapper 12980

TUBE CYLINDER

$

$

Currently unavailable

12

Snapper 27583

FITTING, PISTON ROD END

$

$

Currently unavailable

13

Snapper 12754

ELBOW, 1/4-18 NPTF x 9/16-18 NF - 90°.

$

$

Currently unavailable

14

Snapper 18364

ELBOW, 1/4-18 NPTF x 9/16-18 NF - 90° (LONG)

$

$

Currently unavailable

15

Snapper 13914

KIT, SEAL REPLACEMENT

Note: (INCLUDES ITEMS 3,4,6,7,8,9,10)

$

$

Currently unavailable
