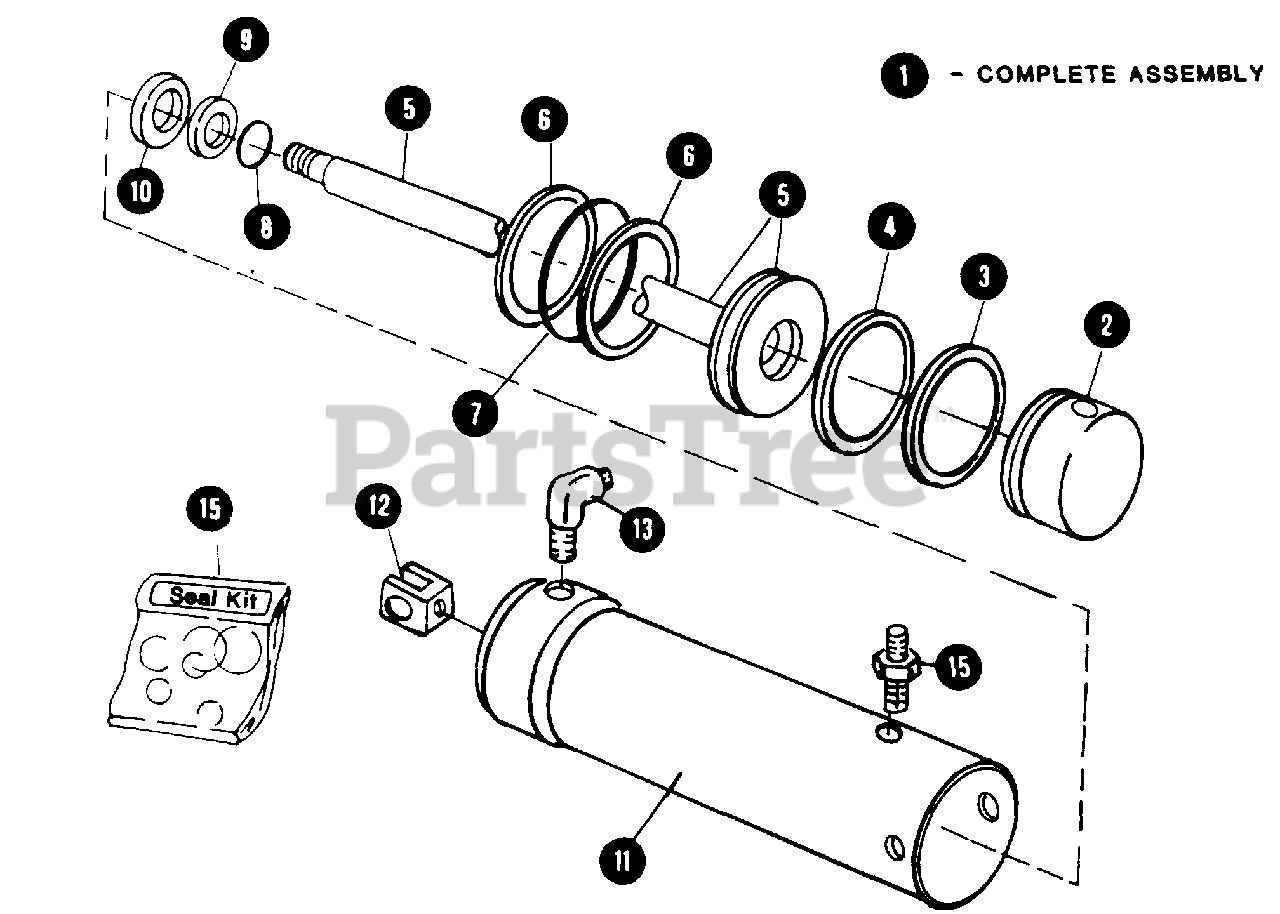

1855 A (80928) - Snapper Garden Tractor, 18hp Hydraulic Cylinder, Mid-Mount - Type B - Victor Parts Diagram

Garden Tractor, 18hp

Hydraulic Cylinder, Mid-Mount - Type B - Victor Parts Diagram

  • Title

1

Snapper 7019565

CYLINDER, REAR LIFT ASSEMBLY

Note: (INCLUDES ITEMS 2 THRU 12)

$

$

Currently unavailable

2

Snapper 7029544

HEAD, CYLINDER

Note: Was 12909

$

$

Not available

3

WASHER, HEAD O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

4

O-RING, CYLINDER HEAD

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

5

Snapper 12910

PISTON-ROD ASSEMBLY

$

$

Currently unavailable

6

WASHER, PISTON O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

7

O-RING, PISTON

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

8

O-RING, PISTON ROD SEAL

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

9

WASHER, SEAL O-RING BACK-UP

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

10

WIPER, PISTON ROD

Note: (PART OF SEAL KIT ITEM 14)

$

$

Not available

11

Snapper 7019565

TUBE CYLINDER

Note: Was 13911

$

$

Currently unavailable

12

Snapper 13836

FITTING, PISTON ROD END

$

$

Currently unavailable

13

Snapper 12754

ELBOW, 1/4 P.T. 90°

$

$

Currently unavailable

?14

Snapper 13912

KIT, SEAL REPLACEMENT

Note: (INCLUDES ITEMS 3,4,6,7,8,9,10)

$

$

Currently unavailable

15

Snapper 12753

FITTING, CONNECTOR 1/4 P, T. x 9/16-18 STRAIGHT THREAD

$

$

Currently unavailable
