1855 A (80928) - Snapper Garden Tractor, 18hp Fuel Tank & Lines Parts Diagram

Garden Tractor, 18hp

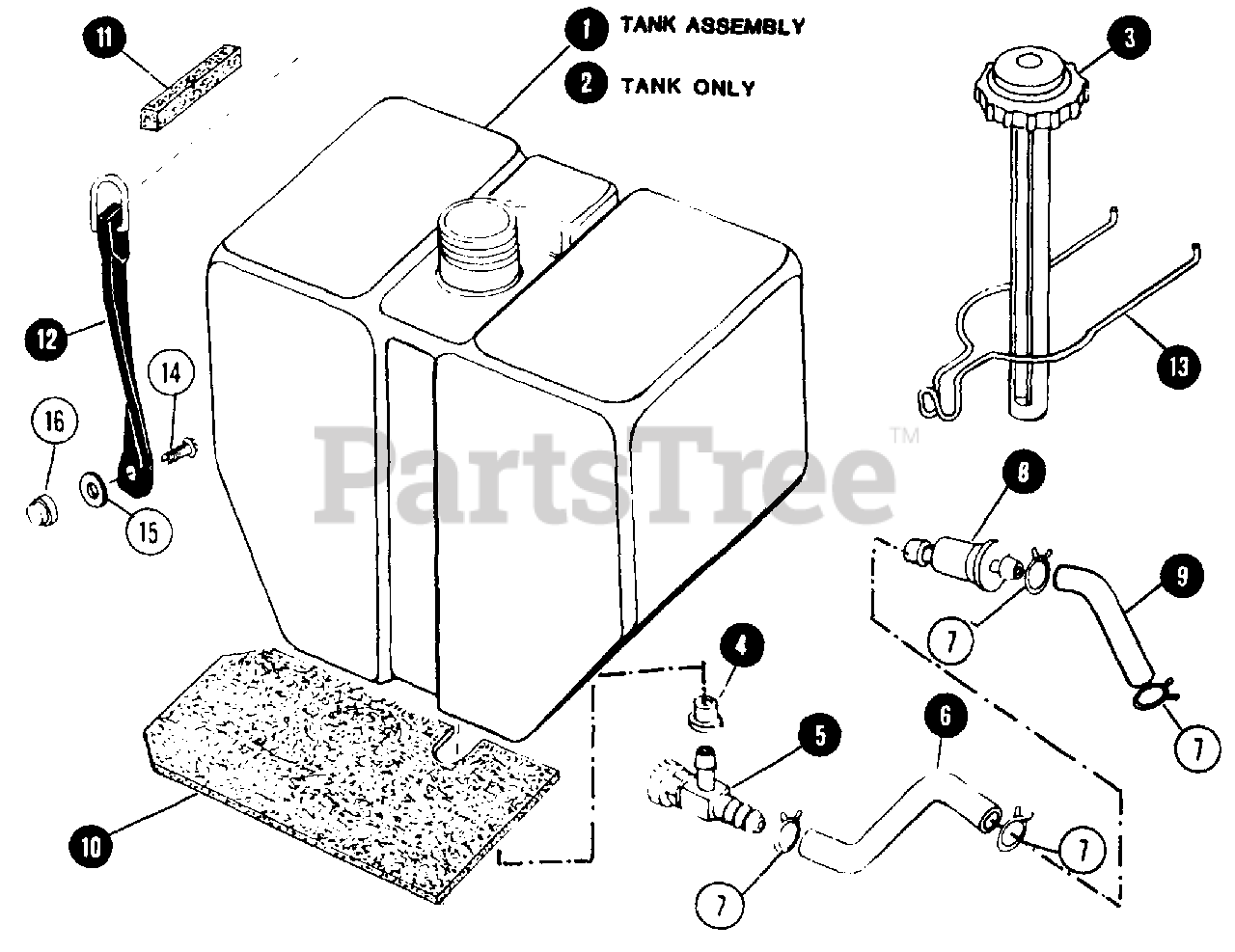

Fuel Tank & Lines Parts Diagram

  • Title

1

Snapper 57271

FUEL TANK ASSEMBLY

Note: (INCLUDES ITEMS 2, 3, 4, 5)

$

$

Currently unavailable

2

Snapper 19838

TANK, FUEL

$

$

Currently unavailable

3

Snapper 7019552

CAP & GAUGE ASSEMBLY

$

$

Not available

4

Snapper 7012337

BUSHING, VALVE TO TANK
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7018248

VALVE, FUEL SHUT-OFF

$

$

Not available

6

Snapper 7073240

LINE FUEL - 5" LONG
(Superseded to 7073240SM)

Note: Was 32039

$24.99

$

Usually ships in 2-12 days

0

7

Snapper 7029900

CLAMP, FUEL LINE
(Superseded to 791850)

Note: Was 11137

$3.49

$

In Stock, Qty 20+

0

8

Snapper 18247

FILTER, IN-LINE FUEL

$

$

Currently unavailable

9

Snapper 7073240

LINE, FUEL - 3" LONG
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

10

Snapper 19837

PAD, FUEL TANK- LOWER

$

$

Currently unavailable

11

Snapper 7012917

PAD FUEL TANK- UPPER

$

$

Not available

12

Snapper 18403

RETAINER STRAP - ASSEMBLY

$

$

Currently unavailable

13

Snapper 7019553

CLAMP, TANK RETAINER
(Superseded to 7019553YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 90640

SCREW, #10C x 1-1/4 ROUND HEAD

$

$

Currently unavailable

15

Snapper 7032037

WASHER, 7/32 x 1 x 5/64"

$

$

Currently unavailable

16

Snapper 7090594

RING, TANK RETAINER
(Superseded to 7090594YP)

$2.99

$

Usually ships in 2-12 days

0
