1855 A (80928) - Snapper Garden Tractor, 18hp Front Wheels Parts Diagram

Garden Tractor, 18hp

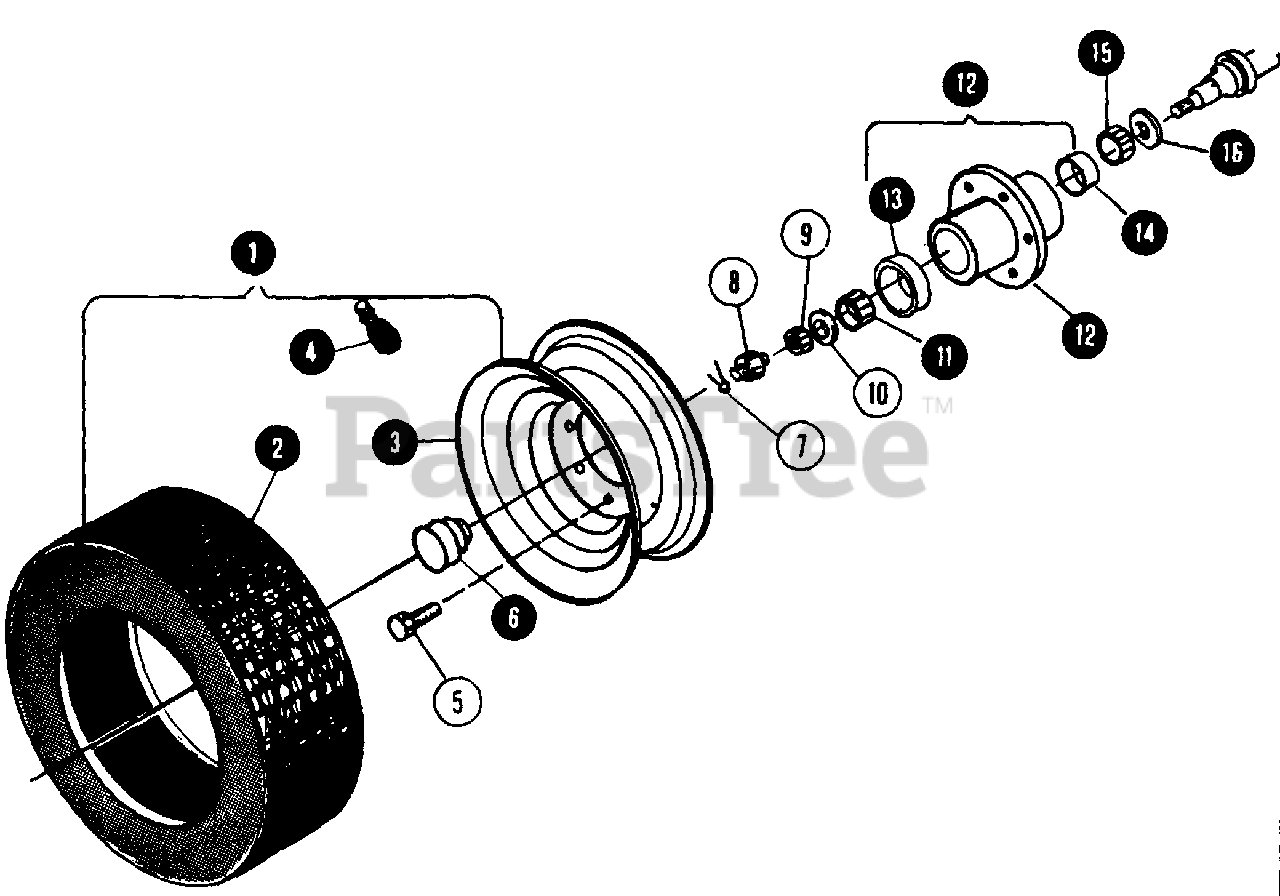

Front Wheels Parts Diagram

  • Title

1

Snapper 59560

WHEEL ASSEMBLY

Note: (INCLUDES ITEMS 2, 3, 4)

$

$

Currently unavailable

2

Snapper 7019685

TIRE, TUBELESS

$

$

Currently unavailable

3

Snapper 7016742

RIM

Note: Was 19686 (INCLUDES ITEM 4)

$

$

Not available

4

Snapper 7012234

VALVE, AIR
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 12683

BOLT, 3/8NF x 23/32 HEX SPACIAL LUG

$

$

Currently unavailable

6

Snapper 18314

CAP, WHEEL HUB GREASE

$

$

Currently unavailable

7

Snapper 7090654

COTTER-PIN, 5/32 x 1-1/4

$

$

Currently unavailable

8

Snapper 18313

RETAINER, HUB TO SPINDLE NUT

$

$

Currently unavailable

9

Snapper 12884

NUT, 3/4 NF HEX

$

$

Currently unavailable

10

Snapper 7032027

WASHER, 49/64" FLAT
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

11

Snapper 18315

BEARING, CONE HUB TO SPINDLE

$

$

Currently unavailable

12

Snapper 57256

HUB, FRONT WHEEL-ASSEMBLY

Note: (INCLUDES ITEMS 13, 14)

$

$

Currently unavailable

13

Snapper 12931

CUP, OUTER HUB

$

$

Currently unavailable

14

Snapper 12932

CUP, INNER HUB

$

$

Currently unavailable

15

Snapper 7012759

BEARING, HUB TO SPINDLE - INNER

$

$

Currently unavailable

16

Snapper 12760

SEAL, HUB TO SPINDLE

$

$

Currently unavailable
