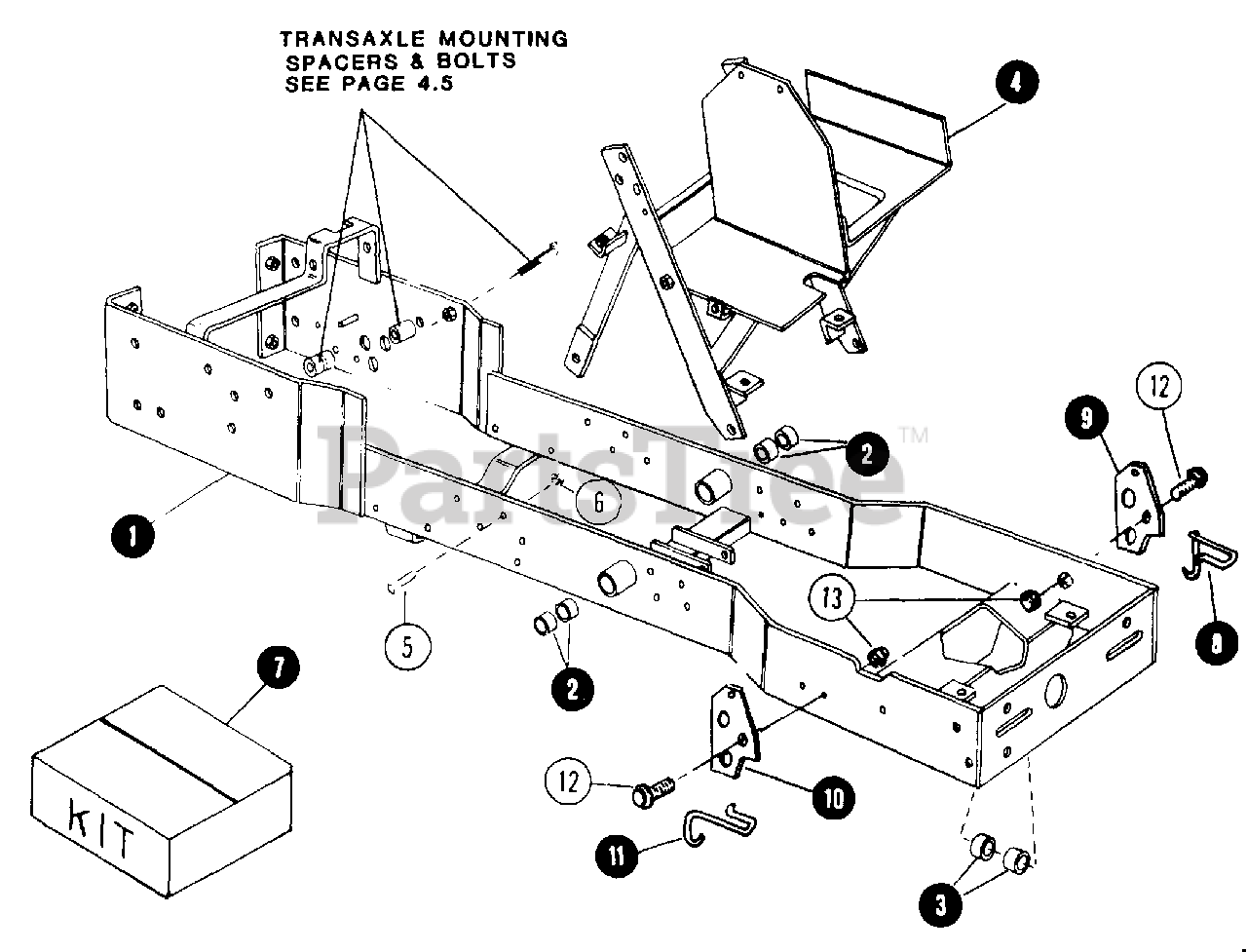

1855 A (80928) - Snapper Garden Tractor, 18hp Frame Parts Diagram

Garden Tractor, 18hp

Frame Parts Diagram

  • Title

1

Snapper 59804

MAIN FRAME ASSEMBLY

Note: (INCLUDES ITEMS 2 & 3)

$

$

Currently unavailable

2

Snapper 7012706

BUSHING, FRAME
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

3

Snapper 7012746

BUSHING, FRAME
(Superseded to 7012746YP)

$4.99

$

Usually ships in 2-12 days

0

4

Snapper 49838

PEDESTAL FRAME
(Superseded to 49838MA)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7027198

BOLT 3/8C x 1 HEX FLANGE
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

6

Snapper 7091619

NUT 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

7

Snapper 60453

KIT, IMPLEMENT MTG. BRACKET

Note: (INCLUDES ITEMS 8 THRU 13)

$

$

Currently unavailable

8

Snapper 7059549

BRACKET, LEFT SIDE

$

$

Currently unavailable

9

Snapper 7019599

SPRING, LEFT SIDE
(Superseded to 7019599YP)

$7.99

$

In Stock, only 1 left!

0

10

Snapper 7059550

BRACKET, RIGHT SIDE

$

$

Currently unavailable

11

Snapper 7019600

SPRING, RIGHT SIDE

$

$

Currently unavailable

12

Snapper 7091328

BOLT, 3/8-16 x 1-1/4 HEX
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 7091619

NUT 3/8-16 HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0
