1855 (80828) - Snapper Garden Tractor, 18hp Hydraulic Cylinder - Mid-Mount Lift - Type A - Benton Parts Diagram

Garden Tractor, 18hp

Hydraulic Cylinder - Mid-Mount Lift - Type A - Benton Parts Diagram

  • Title

1

Snapper 7019565

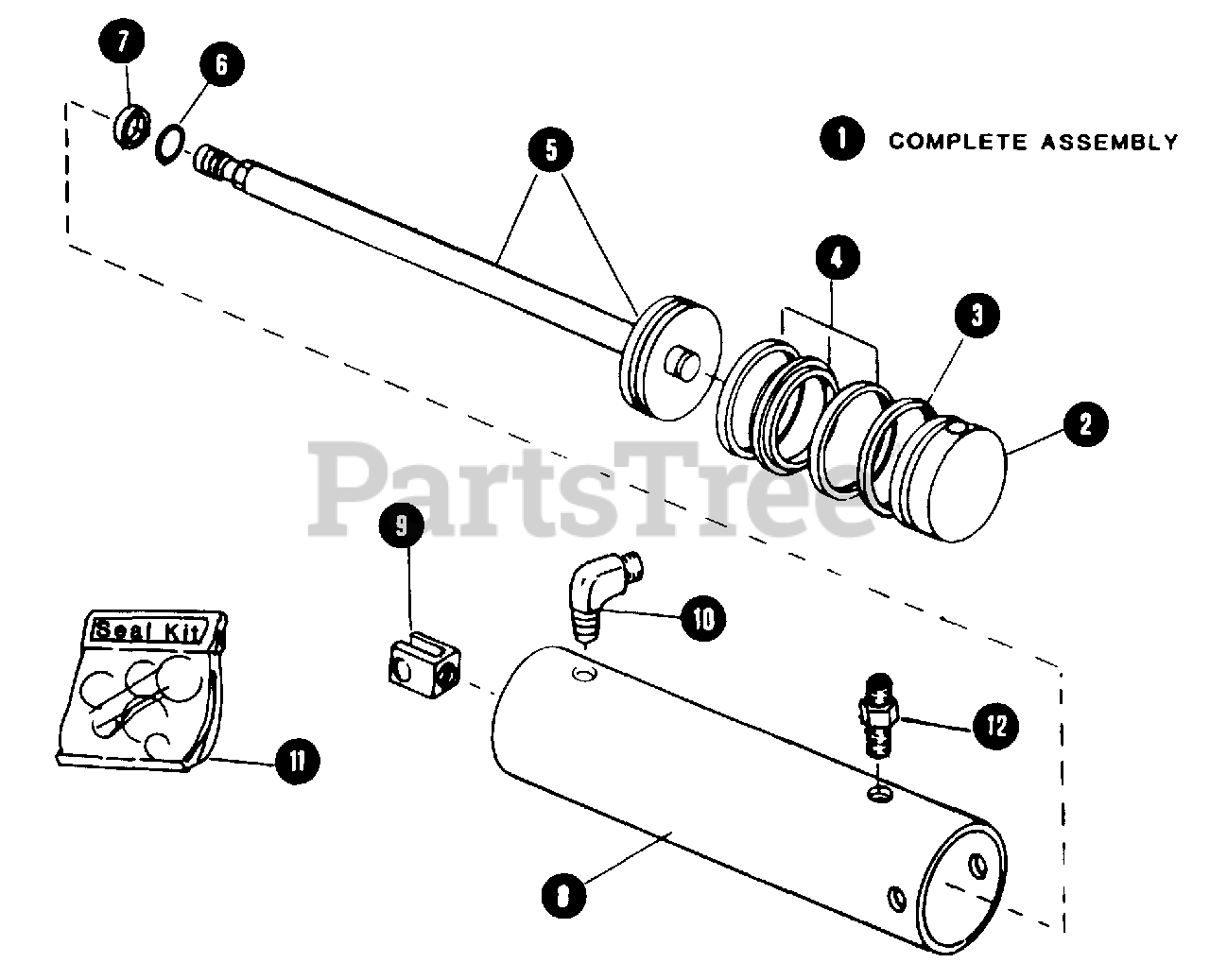

CYLINDER MID-MOUNT LIFT ASSEMBLY

Note: (INCL. ITEMS 2 thru 9)

$

$

Currently unavailable

2

Snapper 13045

HEAD, CYLINDER

$

$

Currently unavailable

3

PACKING, CYLINDER HEAD

Note: (PART OF SEAL KIT ITEM 11)

$

$

Not available

4

SEAL-RING ASSEMBLY, PISTON BACK-UP

Note: (PART OF SEAL KIT ITEM 11)

$

$

Not available

5

Snapper 13840

PISTON-ROD ASSEMBLY

$

$

Currently unavailable

6

O-RING, PISTON ROD

Note: (PART OF SEAL KIT ITEM 11)

$

$

Not available

7

SEAL, PISTON

Note: (PART OF SEAL KIT ITEM 11)

$

$

Not available

8

Snapper 13044

TUBE, CYLINDER

$

$

Currently unavailable

9

Snapper 27583

FITTING, PISTON ROD END

$

$

Currently unavailable

10

Snapper 12754

ELBOW, 1/4P.T. - 90 Degree

$

$

Currently unavailable

11

Snapper 13913

KIT, SEAL REPLACEMENT

Note: (INCLUDES ITEMS 3, 4, 6, 7)

$

$

Currently unavailable

12

Snapper 12753

FITTING, CONNECTOR 1/4P.T. x 9/16-18 STRAIGHT THREAD

$

$

Currently unavailable
