1855 (80828) - Snapper Garden Tractor, 18hp Hood, Grille, Side Panels Parts Diagram

Garden Tractor, 18hp

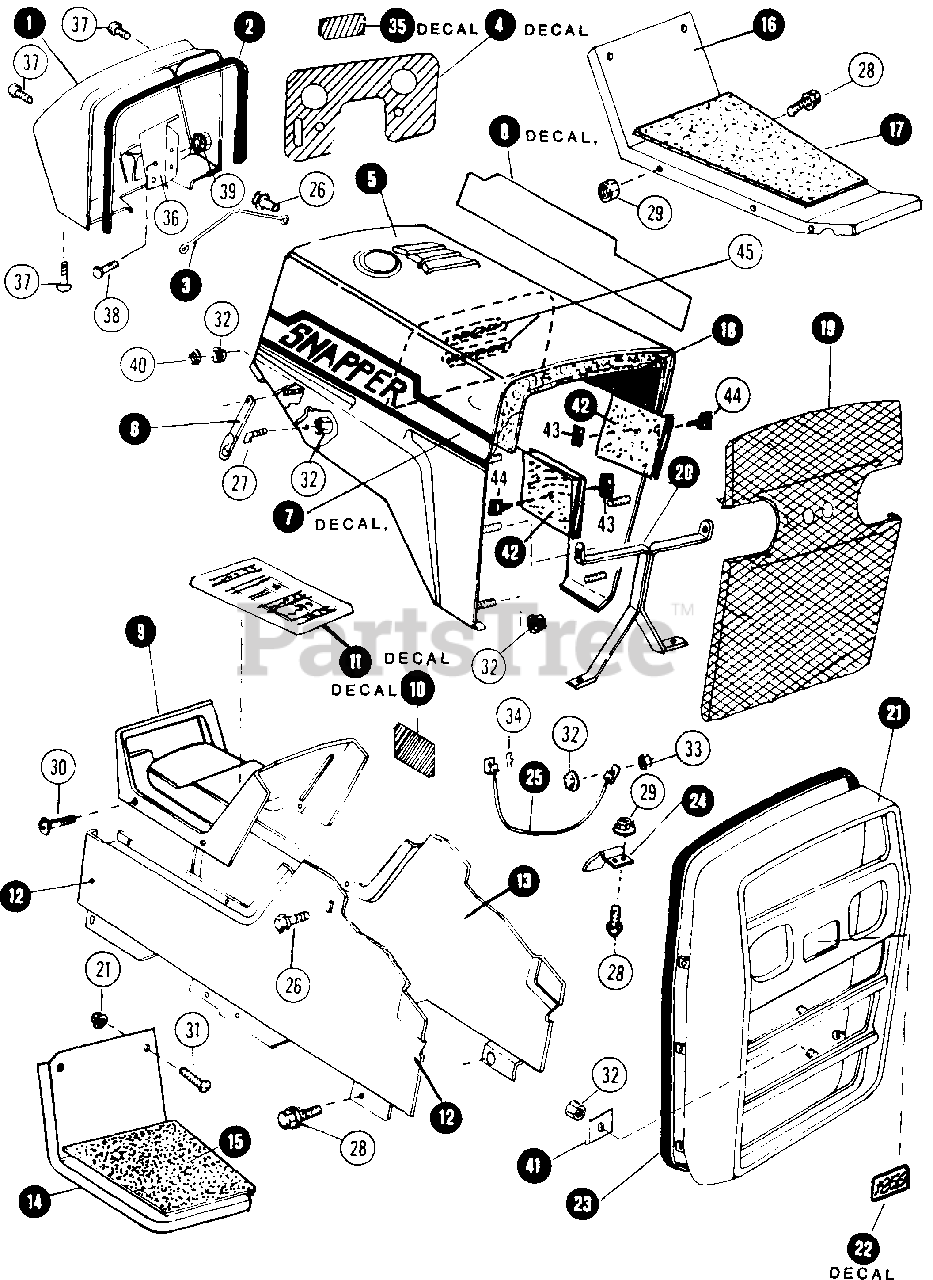

Hood, Grille, Side Panels Parts Diagram

  • Title
1

Snapper 7019823

COWL, INSTRUMENT DASH

$

$

Not available

2

Snapper 7012732

TRIM, COWL MOLDING

$

$

Not available

3

Snapper 19549

REINFORCEMENT, COWL

$211.99

$

Usually ships in 2-12 days

0

4

Snapper 7019826

DECAL, INSTRUMENT DASH

$

$

Not available

5

Snapper 51241

HOOD-PANEL

Note: (INCLUDES ITEMS 7,8,18,42,43,44)

$

$

Currently unavailable

6

Snapper 7018254

STRAP, HOOD RETAINER
(Superseded to 7018254YP)

$16.99

$

Usually ships in 2-12 days

0

7

Snapper 7019930

DECAL, SNAPPER RIGHT SIDE HOOD

$

$

Not available

8

Snapper 7019931

DECAL, SNAPPER LEFT SIDE HOOD

$

$

Not available

9

Snapper 39850

PANEL, CENTER ACCESS CONSOLE

$

$

Currently unavailable

10

Snapper 7018255

DECAL, CAUTION

$

$

Not available

11

Snapper 7019559

DECAL, CONSOLE - OPERATING INSTRUCTION

$

$

Not available

12

Snapper 7014061

PANEL, RIGHT SIDE

Note: Was 49830 (Now 14061 + 39866)

$3.49

$

In Stock, Qty 5

0

13

Snapper 7014061

PANEL, LEFT SIDE

Note: Was 49829

$3.49

$

In Stock, Qty 5

0

14

Snapper 39849

PLATE, RIGHT STEP

$

$

Currently unavailable

15

Snapper 7019557

TREAD, RIGHT PLATE
(Superseded to 7019557YP)

$7.49

$

Usually ships in 2-12 days

0

16

Snapper 39848

PLATE, LEFT STEP

$

$

Currently unavailable

17

Snapper 7019536

TREAD, LEFT STEP PLATE

$

$

Not available

18

Snapper 19558

INSULATION, HOOD - PANEL

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7049817

GRILLE - SCREEN ASSEMBLY

$

$

Currently unavailable

20

Snapper 49818

BRACE, HOOD

$

$

Currently unavailable

21

Snapper 7049816

GRILLE - PANEL ASSEMBLY

$

$

Currently unavailable

22

Snapper 7012925

DECAL, 1855 SERIES IDENTIFICATION

$

$

Currently unavailable

23

Snapper 18253

TRIM, HOOD - GRILLE MOLDING

$

$

Currently unavailable

24

Snapper 7032023

HINGE, HOOD TILT
(Superseded to 7032023YP)

$12.99

$

Usually ships in 2-12 days

0

25

Snapper 7012674

CABLE, HOLD TILT STOP
(Superseded to 7012674YP)

$8.99

$

In Stock, only 2 left!

0

26

Snapper 7090606

BOLT, 5/16F x 5/8 HEX FLANGE
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

27

Snapper 12675

LATCH, HOOD RETAINER STRAP

$13.99

$

Usually ships in 2-12 days

0

28

Snapper 7090595

BOLT, 5/16C x 3/4 HEX FLANGE LOCK
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

29

Snapper 7091601

NUT, 5/16C HEX FLANGE LOCK
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

30

Snapper 7090727

SCREW, PAN HEAD 5/16C x 1/2

$

$

Currently unavailable

31

Snapper 7090316

SCREW, 5/16C x 5/8 ROUND HEAD
(Superseded to 703225)

Note: Was 90605

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7091584

NUT, 1/4C HEX FLANGE LOCK
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

33

Snapper 7090372

NUT, 1/4C HEX LOCK
(Superseded to 703954)

$

$

Not available

34

Snapper 7012431

PIN, HAIR
(Superseded to 7012431SM)

Note: Was 12671

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 7018257

DECAL, REFUEL CAUTION

$

$

Not available

36

Snapper 47743

BRACKET, COWL MOUNTING L.H.
(Superseded to 5047743)

Note: (RIGHT HAND - SEE "CONTROLS: THROTTLE & CHOKE" ILLUSTRATION & PARTS LIST)

$503.99

$

Usually ships in 2-12 days

0

37

Snapper 7090599

SCREW, 5/16C x 3/4 ROUND HEAD
(Superseded to 7091613YP)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper 7027198

BOLT, 3/8C x 3/4 HEX
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

39

Snapper 7091619

NUT, 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

40

Snapper 7091098

WASHER, 1/4 FLAT
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

41

Snapper 32024

WASHER, GRILLE SCREEN PLATE

$

$

Currently unavailable

42

Snapper 18296

INSULATION, HOOD SIDE

$

$

Currently unavailable

43

Snapper 18298

WASHER, SELF-LOCKING

$

$

Currently unavailable

44

Snapper 18297

ANCHOR, INSULATION

$

$

Currently unavailable

45

Snapper 12729

CUSHION, GAS TANK

$

$

Currently unavailable
