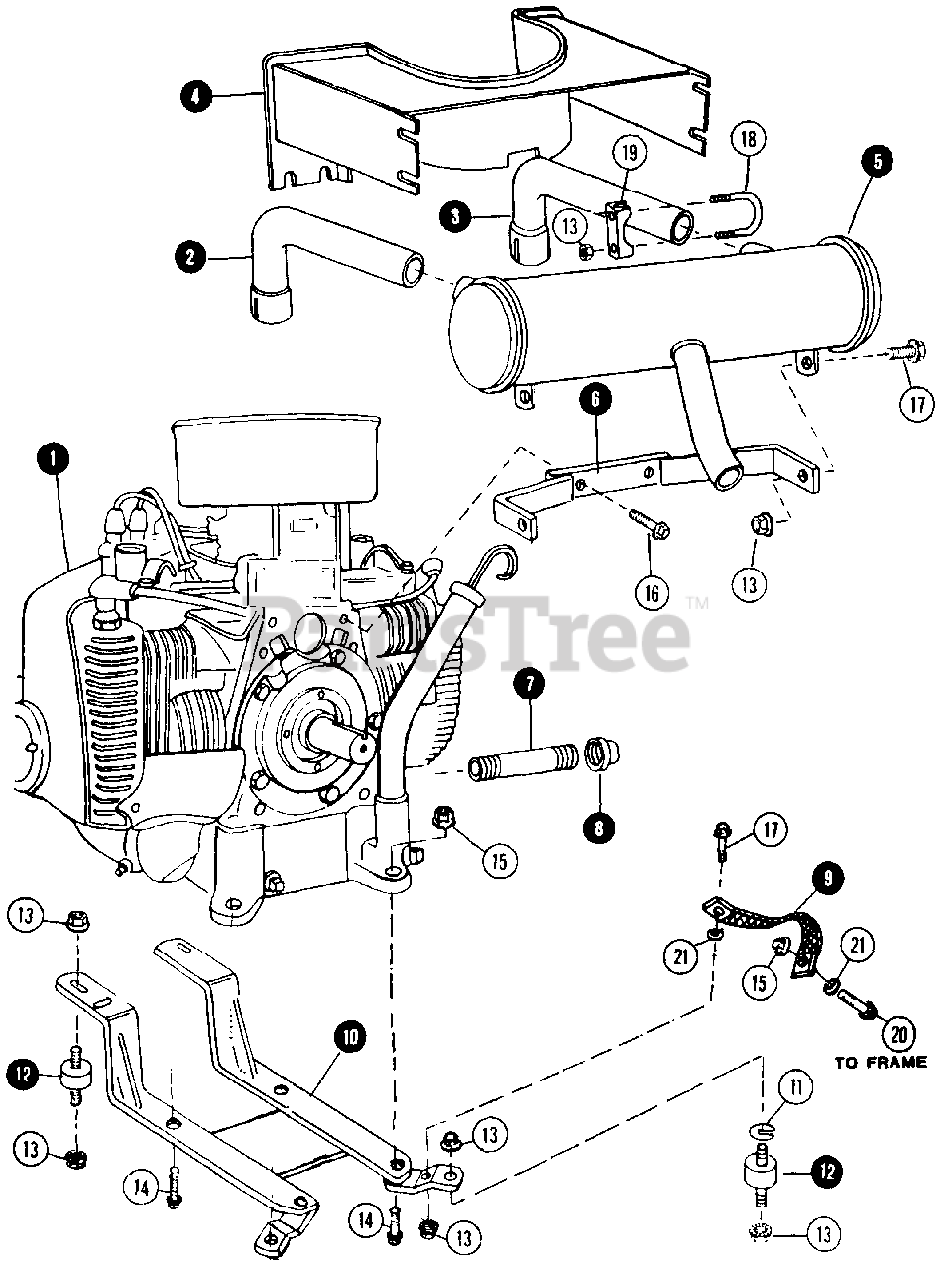

1855 (80828) - Snapper Garden Tractor, 18hp Engine & Mounting Parts Diagram

Garden Tractor, 18hp

Engine & Mounting Parts Diagram

  • Title
1

ENGINE, 18 HP (Onan B48M-GA018-3421A)

Note: (ONAN TWO CYLINDER MODEL B48M-GA018. PURCHASE ENGINE PARTS FROM ONAN DEALER)

$

$

Not available

2

Snapper 7019555

PIPE, RIGHT SIDE EXHAUST

$

$

Not available

3

Snapper 7019554

PIPE, LEFT SIDE EXHAUST
(Superseded to 7019554YP)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 49825

SHIELD HEAT

$

$

Currently unavailable

5

Snapper 7019909

MUFFLER, STANDARD EXHAUST

$

$

Currently unavailable

?5A

Snapper 60383

MUFFLER, SPARK ARRESTOR

Note: (ACCESSORY KIT)

$

$

Currently unavailable

6

Snapper 49826

BRACKET, MUFFLER MOUNTING

$

$

Currently unavailable

7

Snapper 18307

NIPPLE, OIL DRAIN PIPE

$

$

Currently unavailable

8

Snapper 12738

CAP, DRAIN - 3/8 SQUARE HEAD PIPE

$

$

Currently unavailable

9

Snapper 18261

STRAP, ENGINE GROUND

$

$

Currently unavailable

10

Snapper 49831

BRACKET, ENGINE MOUNTING
(Superseded to 5049831B)

$34.99

$

Usually ships in 2-12 days

0

11

Snapper 37770

C-WASHER

Note: (USE AS SHIMS - AS REQUIRED)

$

$

Currently unavailable

12

Snapper 7018301

DAMPENER, ENGINE VIBRATION MOUNT

$

$

Not available

13

Snapper 7091601

NUT, 5/16C HEX FLANGE LOCK
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7090614

BOLT, 3/8C x 1-1/2 HEX FLANGE
(Superseded to 7090614YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7091619

NUT, 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

16

Snapper 7027198

BOLT, 3/8C x 1" HEX FLANGE
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

17

Snapper 7090595

BOLT, 5/16C x 3/4 HEX FLANGE
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

18

Snapper 7012657

U-BOLT EXHAUST PIPE

$

$

Not available

19

Snapper 7032017

CLAMP, U-BOLT

$

$

Currently unavailable

20

Snapper 7090645

BOLT, 3/8C x 1" CARRIAGE

$

$

Currently unavailable

21

Snapper 90742

WASHER, 3/8 EXTERNAL TOOTH LOCK

$

$

Currently unavailable
