1855 (80828) - Snapper Garden Tractor, 18hp Clutch & Mid-Power Take Off Parts Diagram

Garden Tractor, 18hp

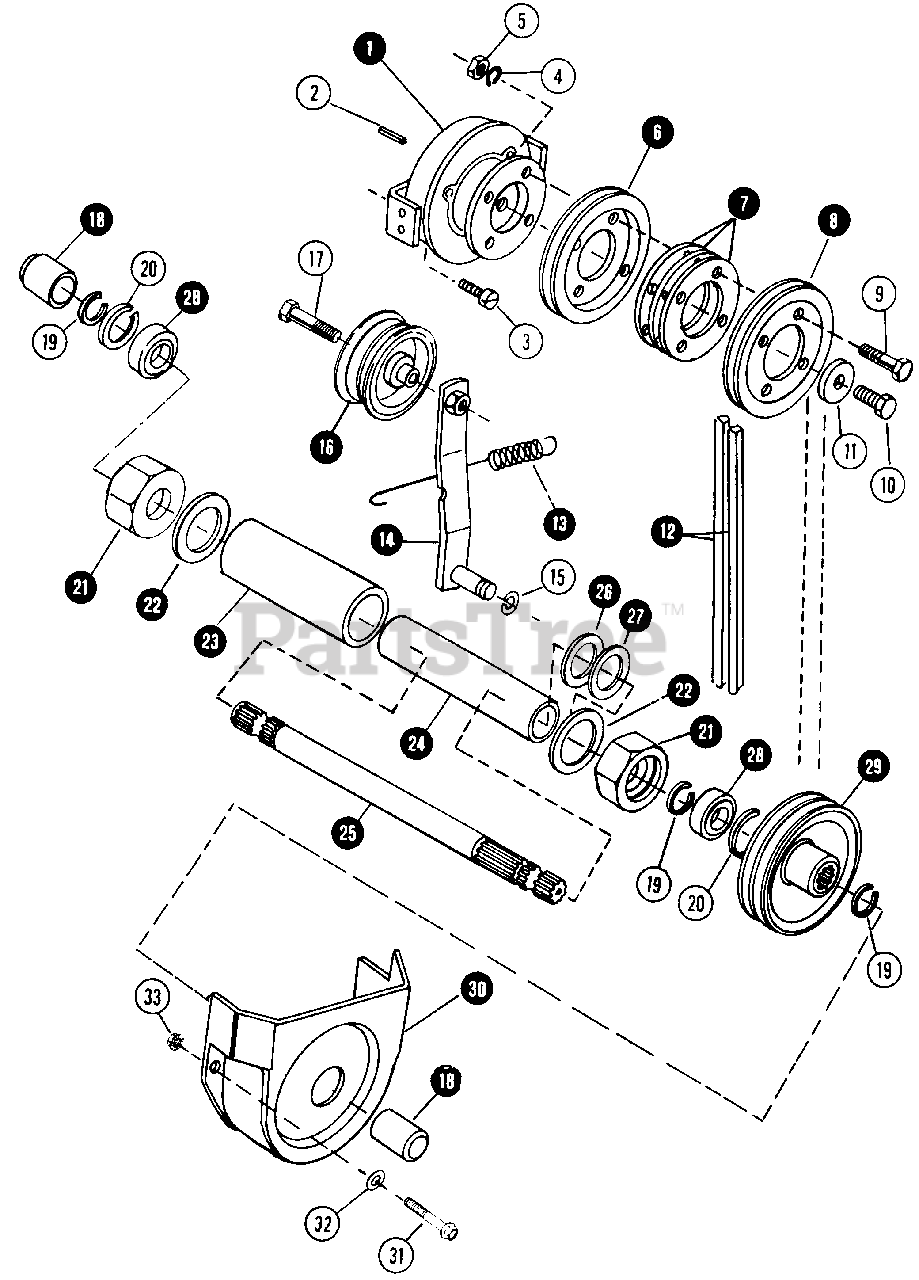

Clutch & Mid-Power Take Off Parts Diagram

  • Title

1

Snapper 7019836

CLUTCH, ELECTRIC - ASSEMBLY (Warner # 5208-752-010)(NLA)

Note: (INCLUDES ITEMS 1A & 1B)

$

$

Currently unavailable

1A

Snapper 7013722

ROTOR & ARMATURE ASSEMBLY (Warner # I-5208-13)(NLA)

Note: (NOT SHOWN)

$

$

Currently unavailable

1B

Snapper 7013825

FIELD ASSEMBLY (Warner # I-5208-34)(NLA)

Note: (NOT SHOWN)

$

$

Currently unavailable

2

Snapper 7018293

KEY, CLUTCH TO CRANKSHAFT

$

$

Currently unavailable

3

Snapper 7090024

SCREW, #10-32 x 1/2 FILLISTER HEAD SLOTTED (NLA, use 90955)

$

$

Currently unavailable

4

Snapper 7090052

WASHER 1/4" LOCK
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

5

Snapper 7091576

NUT, 1/4C HEX
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7018292

PULLEY, CLUTCH DRIVER

Note: (SAME AS ITEM 8)

$

$

Currently unavailable

7

Snapper 7037810

SPACER, PULLEY

$

$

Currently unavailable

9

Snapper 7090639

BOLT, 1/4C x 1-1/2 HEX HEAD
(Superseded to 7090639YP)

$3.49

$

In Stock, only 1 left!

0

10

Snapper 7091328

BOLT, 3/8C x 1-1/4 HEX HEAD
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7018295

WASHER, CLUTCH RETAINER

$

$

Not available

12

Snapper 7019551

V-BELTS, (MATCHED SET)

$

$

Not available

13

Snapper 7019564

SPRING, IDLER PULLEY
(Superseded to 7019564YP)

$35.99

$

Usually ships in 2-12 days

0

14

Snapper 7049596

ARM, IDLER
(Superseded to 7049596YP)

$83.99

$

Usually ships in 2-12 days

0

15

Snapper 7012744

RING, IDLER ARM RETAINING

$

$

Not available

16

Snapper 7018326

PULLEY IDLER, 3/8" ID, 4.0" OD, 1.25" Wide

$26.99

$

Usually ships in 2-12 days

0

17

Snapper 7090730

BOLT, 3/8C x 1-3/4 HEX HEAD

$

$

Not available

18

Snapper 7018294

CAP, MID P.T.O. VINYL

$

$

Currently unavailable

19

Snapper 7012748

RING, RETAINING

Note: (PULLEY TO SHAFT)

$

$

Not available

20

Snapper 7012800

RING, RETAINING

Note: (BEARING TO AXLE SLEEVE)

$4.49

$

In Stock, only 3 left!

0

21

Snapper 7019573

RETAINER, BEARING & AXLE SLEEVE
(Superseded to 7019573YP)

$42.99

$

Usually ships in 2-12 days

0

22

Snapper 7037814

WASHER, FRONT AXLE THRUST

$

$

Not available

23

Snapper 7037529

SPACER, AXLE PIVOT

$

$

Currently unavailable

24

Snapper 7029518

SLEEVE, AXLE MOUNTING

$

$

Currently unavailable

25

Snapper 7029811

SHAFT, MID POWER TAKE-OFF

$

$

Currently unavailable

26

Snapper 7012755

SHIM, .030"

$

$

Not available

27

Snapper 7012752

SHIM, .015"

$

$

Not available

28

Snapper 7019572

BEARING, BALL, .98" ID, 2.04" OD, .59" Wide
(Superseded to 7019572YP)

Note: 6205-2RS-J

$30.99

$

Usually ships in 2-12 days

0

29

Snapper 7049595

PULLEY, P.T.O.
(Superseded to 7049595YP)

$113.99

$

Usually ships in 2-12 days

0

30

Snapper 7019835

GUARD, BELT

$

$

Currently unavailable

31

Snapper 7091328

BOLT, 3/8C x 1 HEX FLANGE
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7091619

NUT, 3/8C HEX FLANGE
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0
