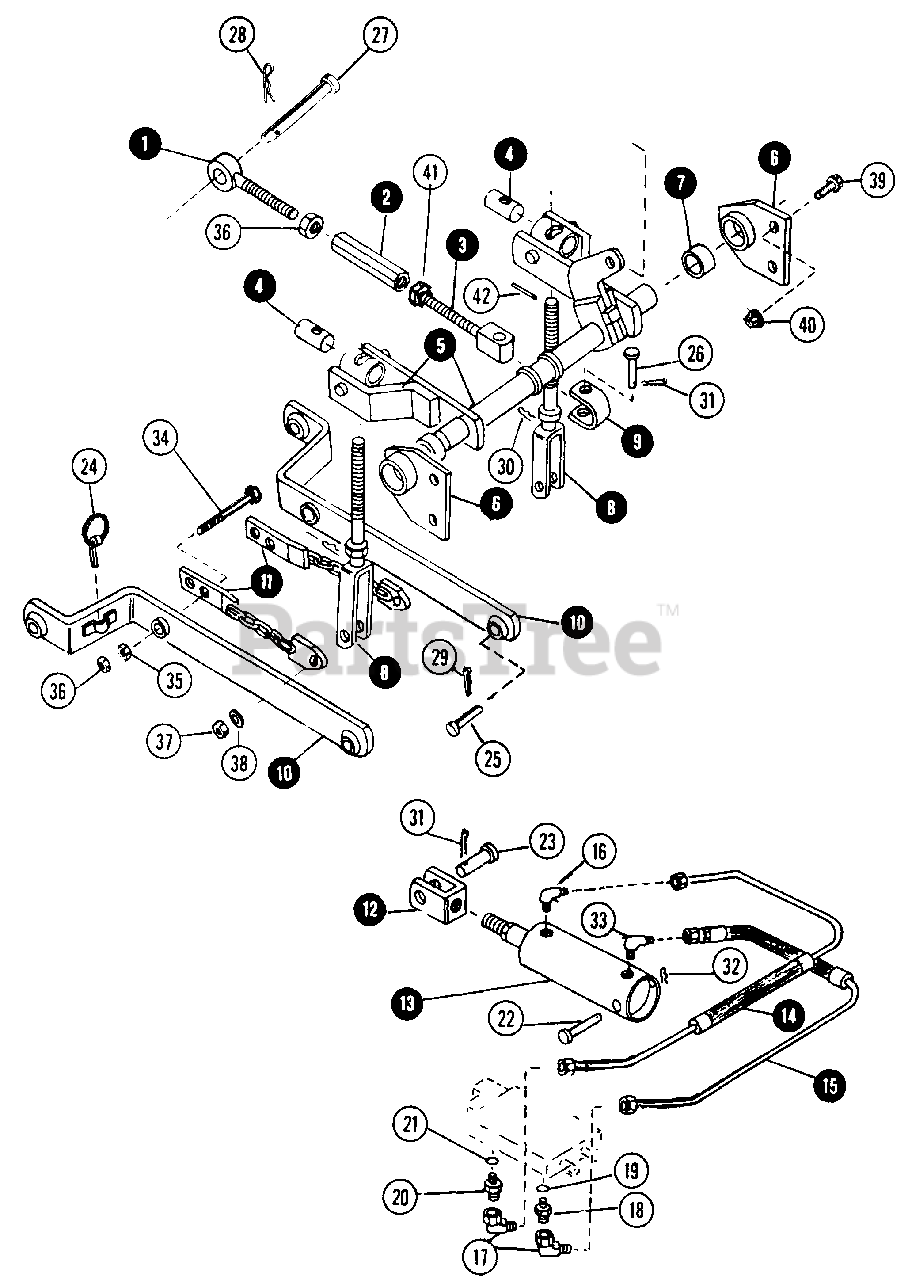

1855 (80828) - Snapper Garden Tractor, 18hp 3-Point Hitch Parts Diagram

Garden Tractor, 18hp

3-Point Hitch Parts Diagram

  • Title

1

Snapper 7049616

CLEVIS, LINK ADJUSTER
(Superseded to 7049616YP)

$78.99

$

Usually ships in 2-12 days

0

2

Snapper 27576

ADJUSTER, UPPER LINK

$

$

Currently unavailable

3

Snapper 49615

CLEVIS, UPPER

$

$

Currently unavailable

4

Snapper 27575

SWIVEL, LOWER LINK

$

$

Currently unavailable

5

Snapper 49840

ROCKER - SHAFT,

Note: (ASSEMBLY)

$

$

Currently unavailable

6

Snapper 57257

PIVOT, ROCKERSHAFT

Note: (ASSEMBLY INCLUDES ITEM 7)

$2.49

$

Usually ships in 2-12 days

0

7

Snapper 12868

BUSHING, PIVOT

$

$

Currently unavailable

8

Snapper 49609

LINK, LOWER ADJUSTER

$

$

Currently unavailable

9

Snapper 7037866

STRAP, CLEVIS TO SHAFT
(Superseded to 7037866YP)

$

$

Not available

10

Snapper 49852

LINK, LOWER LIFT

$

$

Currently unavailable

11

Snapper 49608

CHAIN, CHECK

Note: (ASSEMBLY)

$

$

Currently unavailable

12

Snapper 27583

END, CYLINDER ROD

$

$

Currently unavailable

13

Snapper 7019611

CYLINDER, HYDRAULIC LIFT

Note: (SEE "HYDRAULIC CYLINDER - REAR LIFT" ILLUSTRATIONS & PARTS LISTS FOR PARTS)

$

$

Currently unavailable

14

Snapper 19891

TUBE & HOSE ASSEMBLY - VALVE TO CYLINDER

$

$

Currently unavailable

15

Snapper 7019890

TUBE & HOSE ASSEMBLY - VALVE TO CYLINDER
(Superseded to 7019890YP)

$50.99

$

Usually ships in 2-12 days

0

16

Snapper 12754

ELBOW, 1/4-18

$

$

Currently unavailable

17

Snapper 18365

ELBOW, 90 DEGREE SWIVEL

$

$

Currently unavailable

18

Snapper 12773

CONNECTOR, ELBOW TO VALVE

Note: (INCLUDES ITEM 19)

$

$

Currently unavailable

19

Snapper 7013906

O-RING, 906 (.08 x .47 I.D.)

$

$

Currently unavailable

20

Snapper 12869

CONNECTOR

Note: (INCLUDES ITEM 21)

$

$

Currently unavailable

21

Snapper 13907

O-RING, 908 (.09 x .64 I.D.)

$

$

Currently unavailable

22

Snapper 12866

PIN, CLEVIS - CYLINDER TO FRAME

$

$

Currently unavailable

23

Snapper 7012859

PIN, CLEVIS - LINK TO FRAME

$

$

Currently unavailable

24

Snapper 7012864

PIN,
(Superseded to 1679697SM)

$9.49

$

In Stock, only 2 left!

0

25

Snapper 12861

PIN, CLEVIS - LINK TO FRAME

$

$

Currently unavailable

26

Snapper 12860

PIN, CLEVIS - CLEVIS TO SHAFT

$

$

Currently unavailable

27

Snapper 13774

PIN, CLEVIS - 5/8 x 3"

$

$

Currently unavailable

28

Snapper 7091596

PIN, HAIR
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 90649

COTTER-PIN, 3/16 x 1-1/4

$

$

Currently unavailable

30

Snapper 12863

PIN, HAIR - CLEVIS TO SHAFT

$

$

Currently unavailable

31

Snapper 7091516

COTTER-PIN, 5/32 x 1
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

32

Snapper 7012867

PIN, HAIR - CYLINDER to FRAME
(Superseded to 7012867YP)

$2.99

$

Usually ships in 2-12 days

0

33

Snapper 18364

ELBOW, 1/4-18 Extra Long

$

$

Currently unavailable

34

Snapper 7090684

BOLT, 5/8C x 3-1/2 HEX HEAD

$

$

Currently unavailable

35

Snapper 7090537

NUT, 5/8C HEX
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

36

Snapper 90686

NUT, 5/8C HALF HEX
(Superseded to 90686GS)

$14.99

$

Usually ships in 2-12 days

0

37

Snapper 7091585

NUT, 3/8C HEX LOCK
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

38

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7090622

BOLT, 1/2C x 1-1/4 HEX WASHER HEAD
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

40

Snapper 7090619

NUT, 1/2C HEX FLANGE
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7090685

JAM-NUT, 5/8C LEFT HAND THREAD

$13.99

$

In Stock, Qty 6

0

42

Snapper 12862

PIN, 1/4 x 2-1/2 GROOVE

$

$

Currently unavailable
