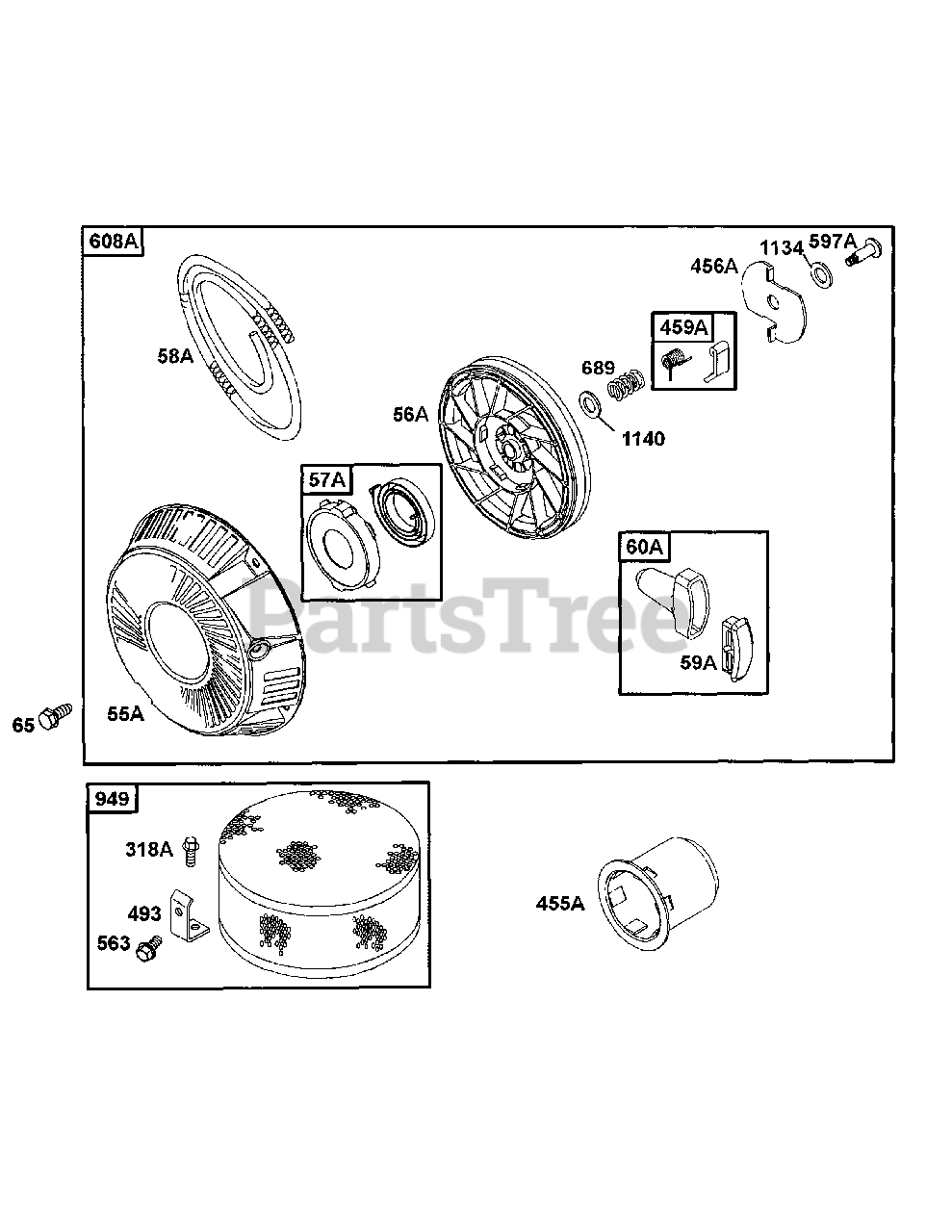

1852H (55AF3C5T195) - MTD Pro Walk-Behind Mower B&S Rewind Starter Assembly (Part 2) Parts Diagram

Pro Walk-Behind Mower

B&S Rewind Starter Assembly (Part 2) Parts Diagram

  • Title

55A

MTD BS-492193

Housing-Rewind Starter

Note: NLA

$52.99

$

Usually ships in 2-12 days

0

56A

MTD BS-281235

Pulley-Starter

Note: NLA

$33.99

$

Usually ships in 2-12 days

0

57A

MTD BS-492194

Spring-Rewind Starter
(Superseded to BS-692102)

$142.99

$

In Stock, only 3 left!

0

58A

MTD BS-695002

Rope-Starter

$8.49

$

Usually ships in 2-12 days

0

59A

MTD BS-490653

Insert-Grip

Note: NLA

$5.49

$

In Stock, Qty 12

0

60A

MTD BS-490652

Grip-Starter Rope

$5.49

$

In Stock, Qty 12

0

65

MTD BS-692539

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

318A

MTD BS-692539

Screw (Mounting Bracket)

$3.49

$

In Stock, Qty 20+

0

455A

MTD BS-807881

Cup-Flywheel

Note: NLA

$36.99

$

Usually ships in 2-12 days

0

456A

MTD BS-224228

Plate-Pawl Friction

Note: NLA

$5.99

$

In Stock, only 1 left!

0

459A

MTD BS-492431

Pawl-Ratchet

Note: NLA

$10.99

$

Usually ships in 2-12 days

0

493

MTD BS-691503

Bracket-Mounting

$17.99

$

In Stock, only 1 left!

0

563

MTD BS-692539

Screw (Debris Screen)

$3.49

$

In Stock, Qty 20+

0

597A

MTD BS-94463

Screw (Pawl Friction Plate)

Note: NLA

$6.99

$

Usually ships in 2-12 days

0

608A

MTD BS-494926

Starter-Rewind

$

$

Not available

689

MTD BS-262564

Spring-Friction (Rewind Starter)

Note: NLA

$4.99

$

In Stock, only 1 left!

0

689

MTD BS-691272

Spring-Friction

Note: NLA

$13.99

$

In Stock, only 1 left!

0

949

MTD BS-808030

Guard-Debris Screen

Note: NLA

$130.99

$

Usually ships in 2-12 days

0

1134

MTD BS-94462

Washer (Pawl Friction Plate)

Note: NLA

$13.99

$

Usually ships in 2-12 days

0

1140

MTD BS-94464

Washer (Rewind Starter)

Note: NLA

$4.49

$

Usually ships in 2-12 days

0
