1852H (55AF3C5T195) - MTD Pro Walk-Behind Mower B&S Electric Starter (Part 2) Parts Diagram

Pro Walk-Behind Mower

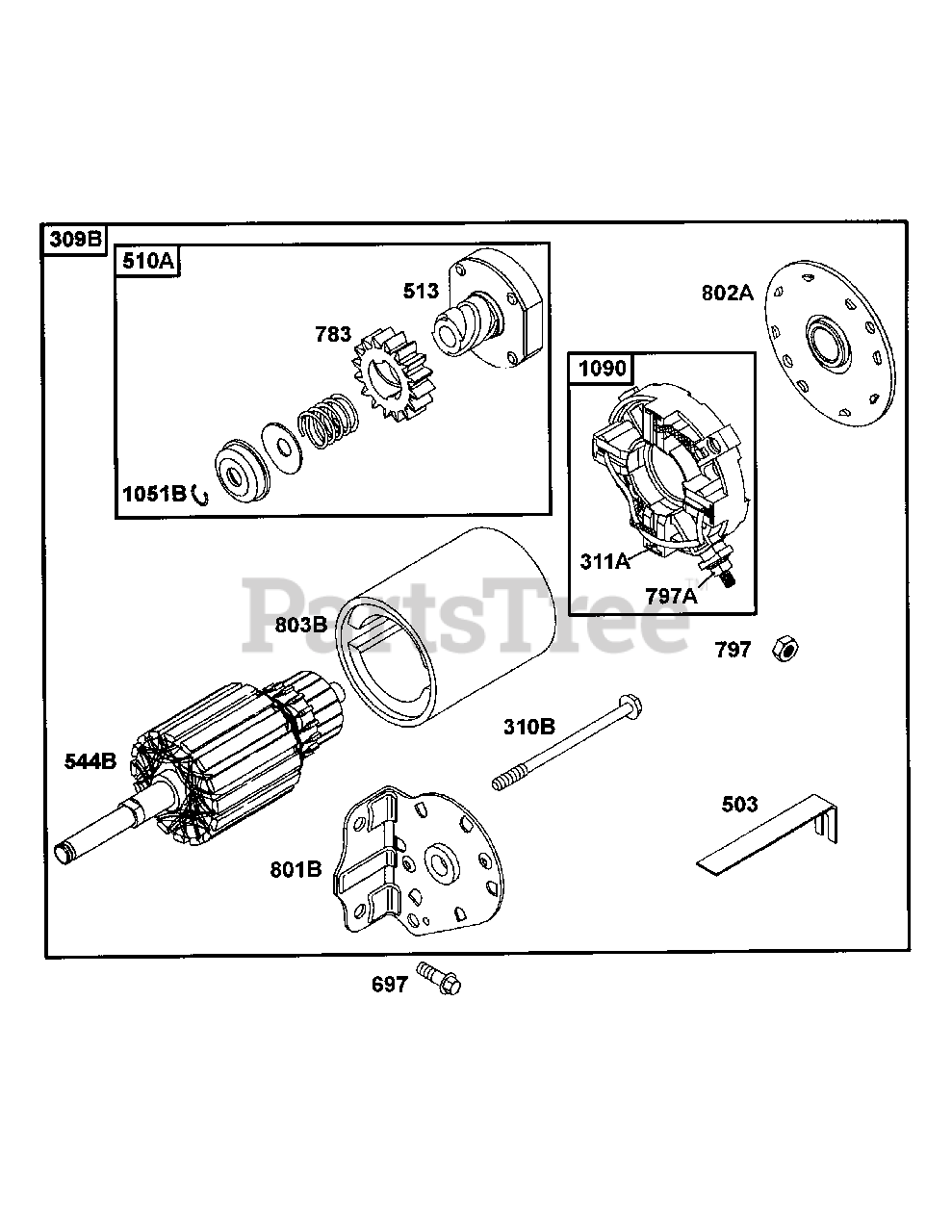

B&S Electric Starter (Part 2) Parts Diagram

  • Title

309B

MTD BS-795121

Motor Starter

$143.99

$

In Stock, Qty 20+

0

310B

MTD BS-691263

Screw (Starter Motor)

$

$

Not available

311A

MTD BS-497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

503

MTD BS-691532

Strap-Starter

$6.49

$

Usually ships in 2-12 days

0

510A

MTD BS-696541

Drive-Starter

$

$

Not available

513

MTD BS-692024

Clutch-Drive

$21.99

$

In Stock, only 2 left!

0

544B

MTD n/a

Armature-Starter

$

$

Currently unavailable

697

MTD BS-805247

Screw (Drive Cap)

$

$

Not available

783

MTD BS-695708

Gear-Pinion

$6.99

$

In Stock, only 3 left!

0

797A

MTD BS-693167

Nut (Brush Retained)

$4.49

$

Usually ships in 2-12 days

0

797

MTD 912-0121

Nut (Brush Retained)
(Superseded to 712-0121)

$4.49

$

In Stock, Qty 20+

0

801B

MTD BS-691429

Cap-Drive
(Superseded to BS-691283)

$83.99

$

Usually ships in 2-12 days

0

802A

MTD BS-497607

Cap-End

Note: NLA

$

$

Not available

803B

MTD BS-795121

Housing-Starter

$143.99

$

In Stock, Qty 20+

0

1051B

MTD BS-691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

1090

MTD BS-691293

Retainer-Brush

$29.99

$

In Stock, Qty 6

0
