1852H (55AF3C5T195) - MTD Pro Walk-Behind Mower B&S Carburetor Group (Part 3) Parts Diagram

Pro Walk-Behind Mower

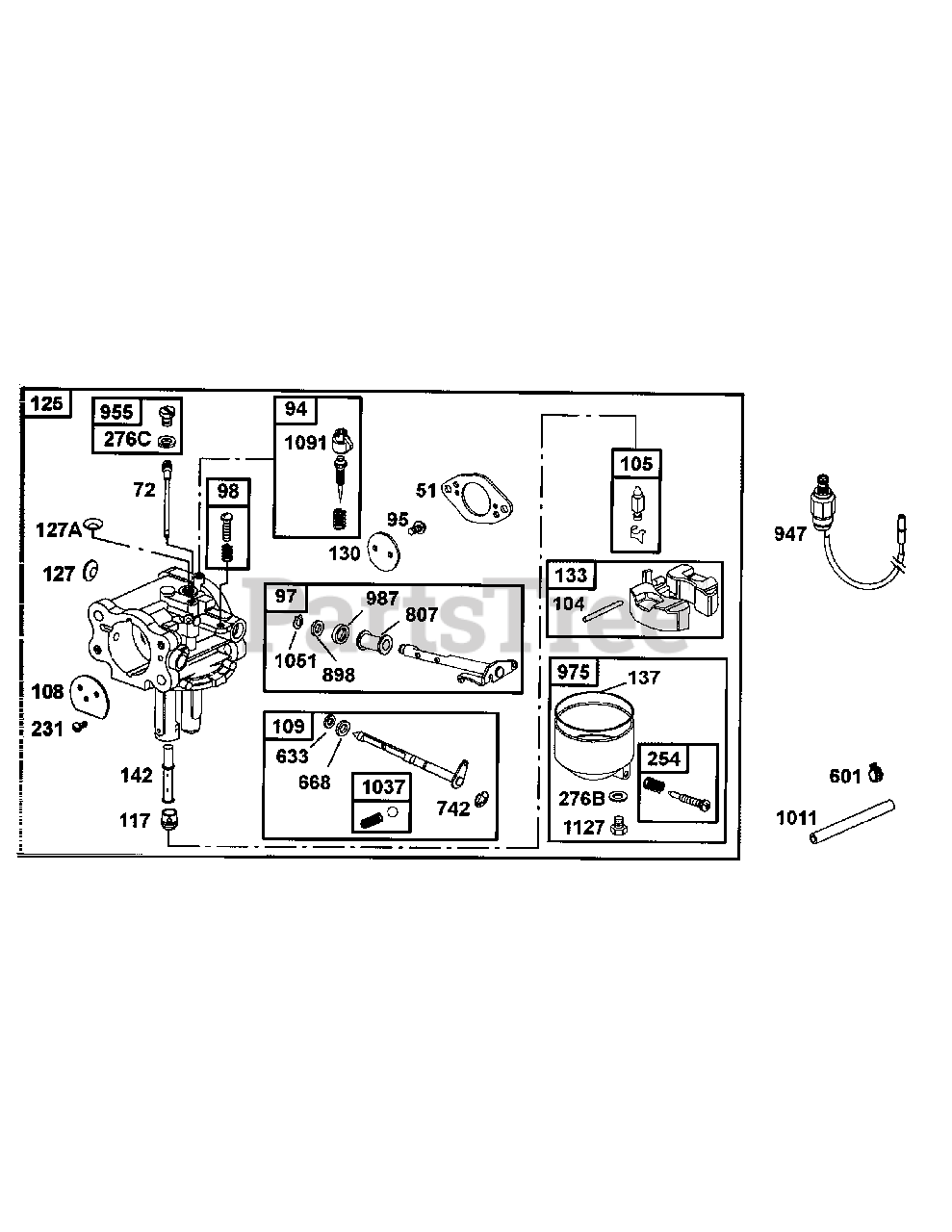

B&S Carburetor Group (Part 3) Parts Diagram

  • Title

51

MTD BS-691694

Gasket-Intake

$2.99

$

In Stock, Qty 20+

0

72

MTD BS-694072

Tube-Jet

Note: NLA

$

$

Currently unavailable

72

MTD BS-694069

Tube-Jet

Note: NLA

$21.99

$

Usually ships in 3-6 days

0

94

MTD BS-808374

Kit-Idle Mixture

Note: NLA

$

$

Not available

94

MTD BS-808258

Kit-Idle Mixture

Note: NLA

$32.99

$

Usually ships in 2-12 days

0

95

MTD BS-690728

Screw (Throttle Valve)

Note: NLA

$

$

Not available

97

MTD BS-808375

Shaft-Throttle

Note: NLA

$52.99

$

Usually ships in 2-12 days

0

98

MTD BS-807705

Kit-Idle Speed

Note: NLA

$13.99

$

In Stock, only 1 left!

0

104

MTD BS-690739

Pin-Float Hinge

Note: NLA

$6.49

$

In Stock, only 1 left!

0

105

MTD BS-807706

Valve-Float Needle

$41.99

$

In Stock, Qty 6

0

108

MTD BS-690729

Valve-Choke

Note: NLA

$8.49

$

Usually ships in 2-12 days

0

109

MTD BS-807711

Shaft-Choke

Note: NLA

$32.99

$

Usually ships in 2-12 days

0

117

MTD BS-806471

Jet-Main

Note: NLA

$18.99

$

Usually ships in 3-6 days

0

117

MTD BS-691554

Jet-Main

Note: NLA

$18.99

$

Usually ships in 2-12 days

0

125

MTD BS-808725

Carburetor
(Superseded to BS-847395)

$321.99

$

Usually ships in 2-12 days

0

127

MTD BS-690730

Plug-Welch

Note: NLA

$7.99

$

Usually ships in 2-12 days

0

127A

MTD BS-690731

Plug-Welch

Note: NLA

$7.99

$

Usually ships in 2-12 days

0

130

MTD BS-806470

Valve-Throttle

Note: NLA

$10.99

$

Usually ships in 3-6 days

0

130

MTD BS-690732

Valve-Throttle

Note: NLA

$22.99

$

Usually ships in 2-12 days

0

133

MTD BS-807710

Float-Carburetor

Note: NLA

$41.99

$

In Stock, only 1 left!

0

137

MTD BS-806481

Gasket-Float Bowl

Note: NLA

$13.99

$

In Stock, Qty 10

0

142

MTD BS-691555

Nozzle-Carburetor

$39.99

$

Usually ships in 2-12 days

0

231

MTD BS-690728

Screw (Choke Valve)

Note: NLA

$

$

Not available

254

MTD BS-807713

Drain-Carburetor Bowl

$

$

Not available

?276

MTD BS-690704

Washer-Sealing

$5.99

$

In Stock, only 2 left!

0

276B

MTD BS-806476

Washer-Sealing (Float Bowl)

Note: NLA

$6.99

$

In Stock, only 2 left!

0

601

MTD BS-94171

Clamp-Hose

Note: NLA

$

$

Not available

633

MTD BS-690738

Seal-Choke/throttle Shaft

Note: NLA

$11.99

$

Usually ships in 2-12 days

0

668

MTD BS-690737

Spacer (Choke Shaft)

Note: NLA

$8.49

$

Usually ships in 2-12 days

0

668

MTD BS-691500

Spacer (Rotating Screen)

$7.49

$

Usually ships in 2-12 days

0

742

MTD BS-805578

Retainer-E Ring

$4.99

$

Usually ships in 2-12 days

0

807

MTD BS-690733

Spacer-Throttle

Note: NLA

$15.99

$

Usually ships in 2-12 days

0

898

MTD BS-690735

Washer

Note: NLA

$4.99

$

Usually ships in 2-12 days

0

947

MTD BS-690924

Solenoid-Fuel
(Superseded to BS-807744)

$

$

Not available

947

MTD BS-806472

Solenoid-Fuel

Note: NLA

$166.99

$

Usually ships in 3-6 days

0

955

MTD BS-807714

Plug-Carburetor

Note: NLA

$7.99

$

Usually ships in 2-12 days

0

975

MTD BS-807715

Bowl-Float

Note: NLA

$100.99

$

In Stock, only 1 left!

0

987

MTD BS-691548

Seal-Throttle Shaft

Note: NLA

$5.99

$

Usually ships in 2-12 days

0

1011

MTD BS-692929

Tube-Vent

Note: NLA

$8.99

$

Usually ships in 3-6 days

0

1037

MTD BS-807717

Bail-Choke Locator

$

$

Not available

1051

MTD BS-690736

Ring-Retaining

Note: NLA

$6.99

$

Usually ships in 2-12 days

0

1091

MTD BS-691515

Cap-Limiter

Note: NLA

$8.99

$

Usually ships in 2-12 days

0

1127

MTD BS-691511

Screw (Float Bowl)

Note: NLA

$10.99

$

In Stock, only 2 left!

0
