1852H (55AF3C5T195) - MTD Pro Walk-Behind Mower Accessories WT Parts Diagram

Pro Walk-Behind Mower

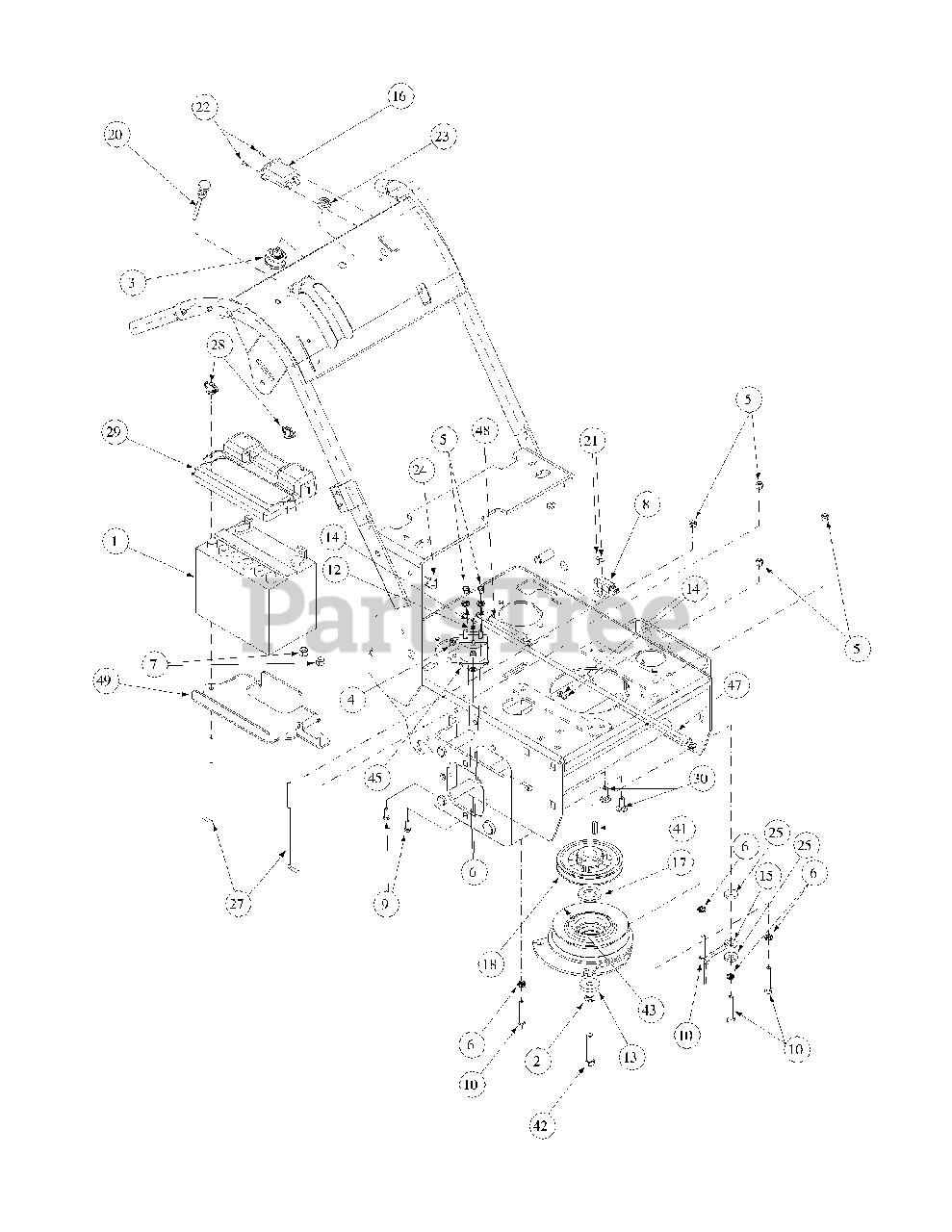

Accessories WT Parts Diagram

  • Title

1

MTD 925-0453G

Battery, 12V, 225CCA

$

$

Not available

2

MTD 00012062

Lock Washer M10

$

$

Not available

3

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

4

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

5

MTD 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

6

MTD 00012168

Lock Washer, 5/16

$

$

Not available

7

MTD 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 00012242

Switch, Delta
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

9

MTD 00013131

Cap Screw, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

10

MTD 00013198

Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

12

MTD 00013671

Lock Washer, #10

$

$

Not available

13

MTD 00013675

Washer Clutch

$9.49

$

Usually ships in 3-6 days

0

14

MTD 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

15

MTD 01005114

Guide, Track Drive Belt

$13.99

$

Usually ships in 3-6 days

0

16

MTD 00023709P

Hour Meter

$

$

Not available

17

MTD 00023822

Washer, Special
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

18

MTD 00023886

Sheave 1" Bore w/2 Set Screws

$

$

Not available

20

MTD 00030466

Choke Cable

$

$

Not available

21

MTD 00030906

Phil. Hd. Mach. Screw, #10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

22

MTD 00031635

Rivet

$

$

Not available

23

MTD 00032097

Nut, w/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

24

MTD 00060807

Support Clamp 3/8 OD

$

$

Not available

25

MTD 00083192

Washer, Idler
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

27

MTD 911-0222A

Hold Down Rod, Battery

$11.99

$

In Stock, only 1 left!

0

28

MTD 912-0397

Wing Nut, 1/4-20 w/Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

29

MTD 01000204

Battery Cover, Large

$11.99

$

Usually ships in 3-6 days

0

30

MTD 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 7

0

41

MTD 01001393

Key, 1/4 x 1/4 x 1

$

$

Not available

42

MTD 01001394

Capscrew, M10-1.5 x 60 mm

$

$

Not available

43

MTD 01003479P

Brake Clutch

$

$

Not available

45

MTD 925-3001

Solenoid Magnetic Switch

$58.99

$

Usually ships in 3-6 days

0

47

MTD 01002252

Battery Cable, Red 24"

$38.99

$

Usually ships in 3-6 days

0

48

MTD 01002253

Battery Cable, Red 5"

$

$

Not available

49

MTD 01002664

Battery Bracket

$

$

Not available

MTD 00013528

Boot, Battery Post Red

Note: NLA (not shown)

$

$

Currently unavailable

MTD 00023887

Belt, Hydro Pump

Note: (not shown)

$51.99

$

In Stock, only 2 left!

0

MTD 00095784

Battery Cable, 10" Black

Note: (not shown)

$

$

Not available

MTD BS-350777-1034

Engine, 18hp Vertical

Note: (not shown)

$

$

Not available

MTD 01000981

Capscrew, w/Lockwasher

Note: (not shown)

$

$

Not available

MTD 01000982

Manifold

Note: NLA (not shown)

$

$

Not available

MTD 01000983

Muffler Clamp Assembly

Note: NLA (not shown)

$

$

Not available

MTD 01000984

Bracket, Muffler

Note: (not shown)

$

$

Not available

MTD 01001042

Screw, M6 x 1.0 x 12mm

Note: (not shown)

$

$

Not available

MTD 01001043

Screw, Hex Flange, M5 x 1.0 x 8mm

Note: (not shown)

$

$

Not available

MTD 01001044

Bracket Debris Guard

Note: NLA (not shown)

$

$

Not available

MTD 01001045

Electric Debris Guard

Note: (not shown)

$

$

Not available

MTD 01002142

Harness

Note: (not shown)

$

$

Not available

MTD 01002231

Harness Adapter Assy

Note: (not shown)

$

$

Not available
