185 - International Harvester Cub Lo-Boy Tractor Two Pedal Brake Parts Diagram

Cub Lo-Boy Tractor

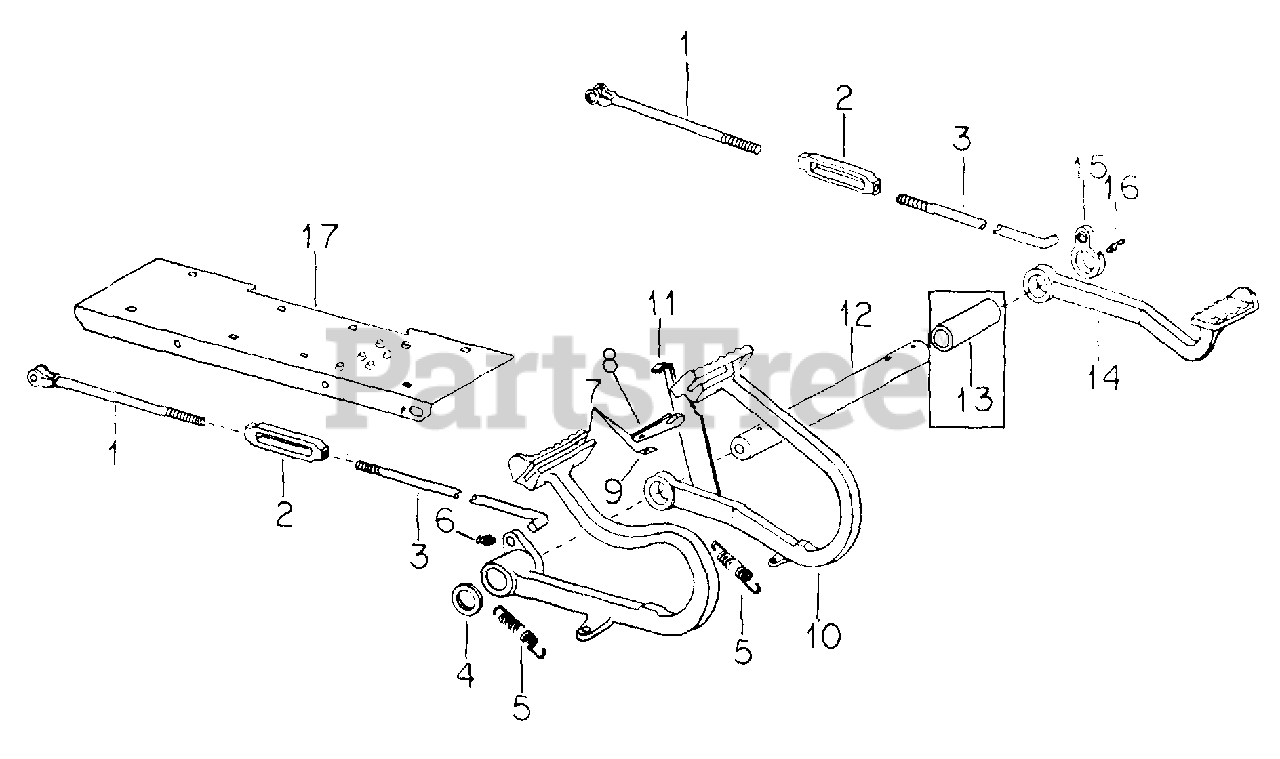

Two Pedal Brake Parts Diagram

  • Title

Cub Cadet IH-545419-R91

PARTS ACCESSORY, TWO PEDAL BRAKE

Note: CONSISTS OF REF. NOS. 1-17 ATTACHING HARDWARE AND INSTRUCTIONS.

$

$

Currently unavailable

Cub Cadet IH-64758-C91

PARTS ACCESSORY, TWO PEDAL BRAKE 184 TRACTOR

Note: CONSISTS OF REF NOS. 1-12, 14-17, ATTACHING HARDWARE AND INSTRUCTIONS.

$

$

Currently unavailable

1

Cub Cadet IH-545427-R1

ROD ASSY, BRAKE REAR

$

$

Currently unavailable

2

Cub Cadet IH-545426-R1

TURNBUCKLE BRAKE ROD

$

$

Not available

3

Cub Cadet IH-545425-R1

ROD, BRAKE FRONT

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8 TYPE 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-121222

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

Cub Cadet IH-21872-R1

WASHER, .406 X .625 X .054

$

$

Currently unavailable

4

Cub Cadet IH-477589-R1

WASHER, 13/32 X 1-1/2 X .12
(Superseded to 936-0227)

$

$

Not available

Cub Cadet IH-22521-R1

BOLT, 3/8 X 3/4 CAD TYPE 5

$

$

Currently unavailable

5

Cub Cadet IH-545433-R1

SPRING, BRAKE RETURN

$

$

Not available

6

Cub Cadet IH-443566

FITTING, 3/16 STR DRIVE TYPE LUB
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet IH-545424-R11

PEDAL ASSY, BRAKE RH

$

$

Currently unavailable

8

Cub Cadet IH-43751DB

PLATE, BRAKE PEDAL LOCK

$

$

Currently unavailable

Cub Cadet IH-14256-R1

RIVET 1/4 X 1-1/16 RD HD

$

$

Currently unavailable

9

Cub Cadet IH-51293D

SPRING

$

$

Not available

10

Cub Cadet IH-545420-R12

PEDAL ASSY, BRAKE LH

$

$

Currently unavailable

11

Cub Cadet IH-126223-C1

STOP, PEDAL RATCHET

Note: REPLACES 545421-R1

$

$

Currently unavailable

Cub Cadet IH-378341-R1

WASHER, SPRING

$

$

Not available

Cub Cadet IH-104253

RIVET, 1/4 X F-HD SOLID

$

$

Currently unavailable

12

Cub Cadet IH-545422-R1

SHAFT, BRAKE PEDAL

$

$

Currently unavailable

Cub Cadet IH-19716-R1

PIN, 3/16 X 1-3/4 HV COILED SPRING

$

$

Not available

13

Cub Cadet IH-545432-R1

BUSHING, CLUTCH PEDAL - PART OF 545419-R91

$

$

Not available

14

Cub Cadet IH-545431-R1

PEDAL, CLUTCH

$

$

Currently unavailable

Cub Cadet IH-27767-R1

SCREW, 3/8 X 7/8 PLN CO/PT HDL/HS SET

$

$

Currently unavailable

Cub Cadet IH-124829

NUT, 3/8-16 ZND HEX JAM
(Superseded to 912-3008)

Note: 2 USED W/545419-R93, 1 USED W/64758-C91

$4.99

$

In Stock, Qty 19

0

15

Cub Cadet IH-545423-R1

LEVER, BRAKE LH

$

$

Currently unavailable

16

Cub Cadet IH-109461

FITTING, 1/8-27 PTF SPECIAL SHORT STR LUBRICATION

$

$

Not available

17

Cub Cadet IH-545429-R91

PLATFORM, ASSY, RH

$

$

Currently unavailable
