185 - International Harvester Cub Lo-Boy Tractor Pulley & Generator Brace Parts Diagram

Cub Lo-Boy Tractor

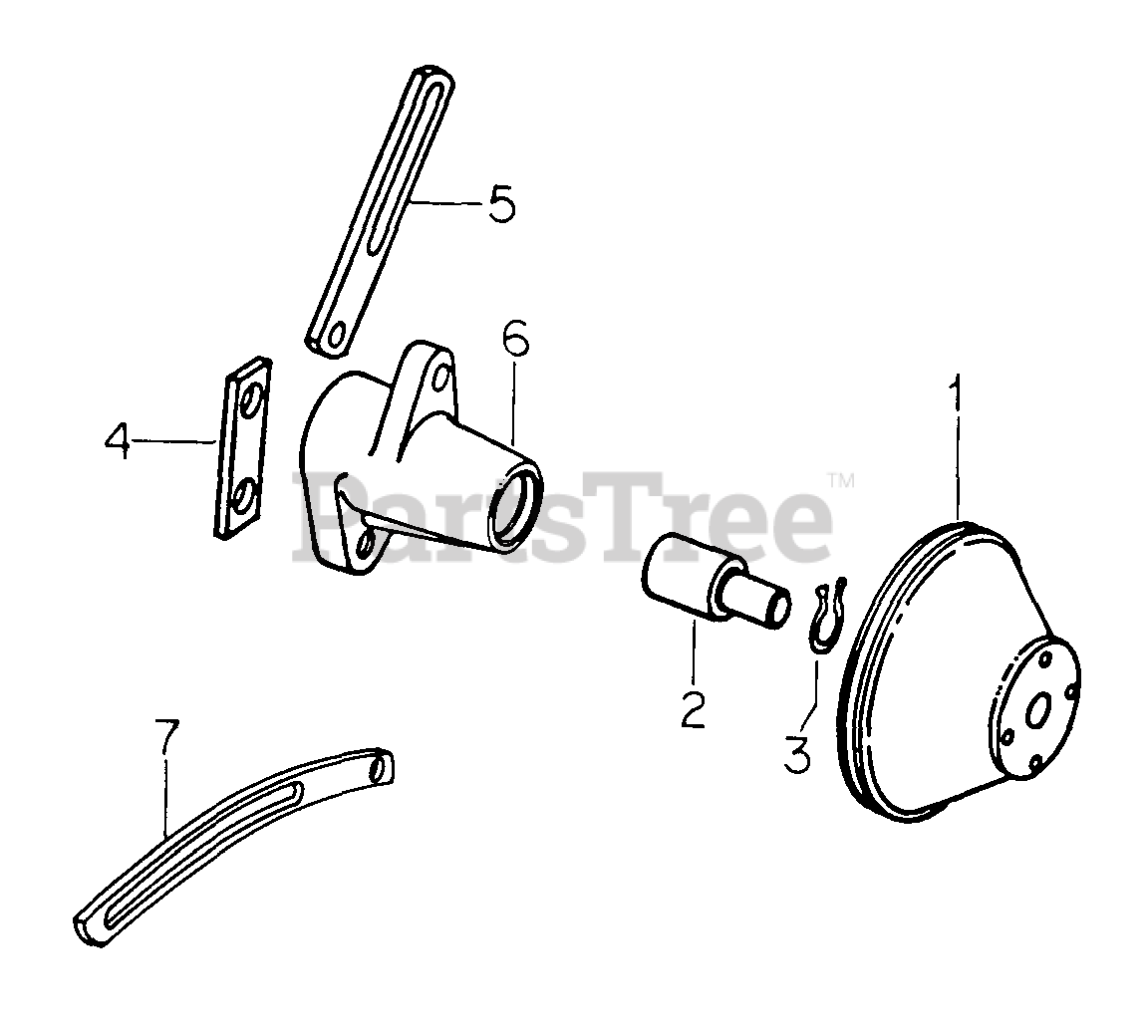

Pulley & Generator Brace Parts Diagram

  • Title

1

Cub Cadet IH-404965-R1

PULLEY, FAN

Note: CUB 154 LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-254954-C92

PULLEY, FAN

Note: 184 TRACTORS AND CUB 185 LO-BOY TRACTORS

$

$

Currently unavailable

2

Cub Cadet IH-491956-R91

SHAFT AND BEARING ASSY

$

$

Currently unavailable

3

Cub Cadet IH-102069H

RETAINER, BEARING

$

$

Not available

4

Cub Cadet IH-405015-R1

BAR, ADAPTER

$

$

Currently unavailable

5

Cub Cadet IH-168130-R1

BRACE, MOTOR-GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179838

SCREW, 3/8-16 X 7/8 HEX-HD CAP
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

6

Cub Cadet IH-405014-R1

BRACKET, FAN PULLEY MOUNTING

$

$

Currently unavailable

Cub Cadet IH-271562

SCREW, 5/8-11 X 2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

7

Cub Cadet IH-532418-R1

BRACE, ALTERNATOR-GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179818

BOLT, 5/16 X 1 PLN TYPE 5

$

$

Not available

Cub Cadet IH-103340

WASHER, .344 X .688 X .051 PLN

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 PLN LOCK

$

$

Currently unavailable

Cub Cadet IH-179841

BOLT, 3/8 X 1-1/4 PLN TYPE 5

$

$

Currently unavailable
