185 - International Harvester Cub Lo-Boy Tractor Motor Generator Parts Diagram

Cub Lo-Boy Tractor

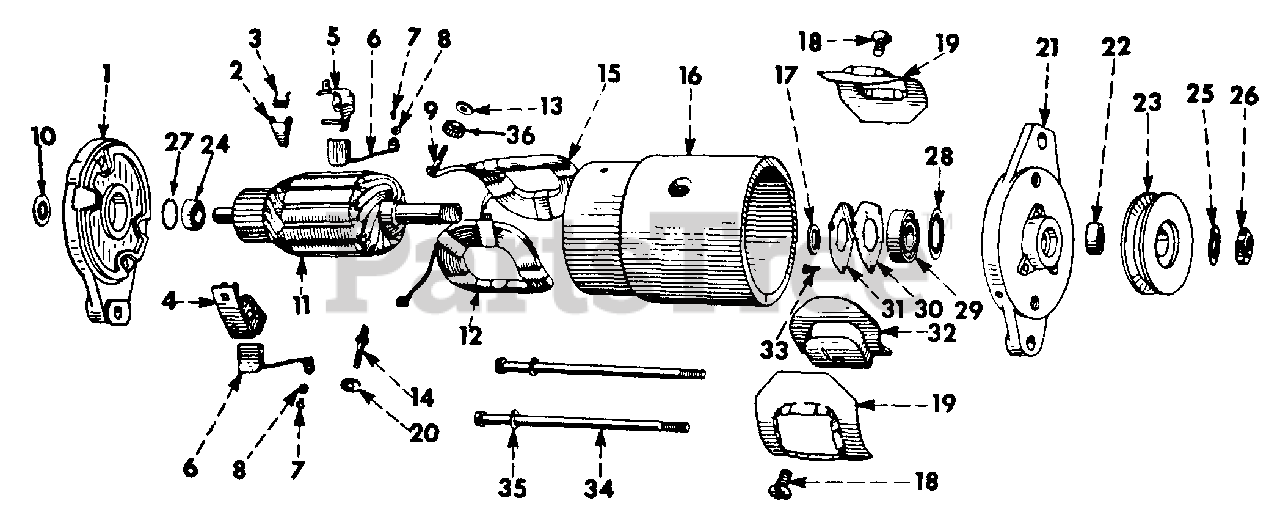

Motor Generator Parts Diagram

  • Title

Cub Cadet IH-1101693

MOTOR GENERATOR ASSY

Note: ORDER MOTOR GENERATOR, IH-1101432

$

$

Not available

Cub Cadet IH-1101698

MOTOR GENERATOR ASSY

Note: ORDER MOTOR GENERATOR, IH-1101432

$

$

Not available

Cub Cadet IH-1101432

MOTOR GENERATOR ASSY

$

$

Not available

1

Cub Cadet IH-1939907

FRAME ASSY, COMMUTATOR END

Note: FOR MOTOR GENERATORS, IH-1101693 & IH-1101698 - COMPOSED OF THE FOLLOWING 4 ITEMS

$

$

Not available

Cub Cadet IH-1929959

CLAMP

$

$

Currently unavailable

FRAME

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Cub Cadet IH-809062

PIN

$

$

Currently unavailable

Cub Cadet IH-1948326

PLUG

$

$

Not available

1

Cub Cadet IH-1800213

FRAME ASSY, COMMUTATOR END-FOR MOTOR GENERATOR, IH-1101432

$

$

Currently unavailable

2

Cub Cadet IH-1944373

ARM, BRUSH

$

$

Currently unavailable

3

Cub Cadet IH-1916324

SPRING, BRUSH

$

$

Currently unavailable

4

Cub Cadet IH-1940422

HOLDER, BRUSH INSULATED

$

$

Currently unavailable

5

Cub Cadet IH-1940421

HOLDER, BRUSH GROUND

$

$

Currently unavailable

6

Cub Cadet IH-1946427

BRUSH
(Superseded to IH-1946427P)

$

$

Not available

7

Cub Cadet IH-454329

SCREW, NO. 6 X 5/16 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

8

Cub Cadet IH-1914816

WASHER, BRUSH LEAD ATTACHING SCREW LOCK

$

$

Currently unavailable

9

Cub Cadet IH-1858749

STUD, TERMINAL FIELD

$

$

Currently unavailable

10

Cub Cadet IH-1948326

PLUG, COMMUTATOR END BEARING WELL

Note: PART OF FRAME IH-1939907

$

$

Not available

11

Cub Cadet IH-1939904

ARMATURE

Note: FOR MOTOR GENERATORS IH-1101693 & IH-1101698

$

$

Not available

11

Cub Cadet IH-800212

ARMATURE

Note: FOR MOTOR GENERATOR IH-1101432

$

$

Not available

12

Cub Cadet IH-1939889

COIL, FIELD RH -SHUNT

$

$

Not available

13

Cub Cadet IH-1858753

WASHER, TERMINAL STUD INSULATING

$

$

Not available

14

Cub Cadet IH-1858749

STUD, TERMINAL ARMATURE

$

$

Currently unavailable

15

Cub Cadet IH-1939890

COIL, FIELD LH

$

$

Not available

16

FRAME

Note: ORDER MOTOR GENERATOR ASSY

$

$

Not available

17

Cub Cadet IH-1861591

COLLAR, DRIVE END SPACE -INSIDE-

$

$

Currently unavailable

18

Cub Cadet IH-1968396

SCREW, POLE SHOE

$

$

Not available

19

Cub Cadet IH-1912073

INSULATOR, FIELD COIL

$

$

Not available

20

Cub Cadet IH-1939894

BUSHING, FIELD TERMINAL INSULATING -INSIDE-

$

$

Currently unavailable

21

Cub Cadet IH-1962410

FRAME, DRIVE END

$

$

Currently unavailable

22

Cub Cadet IH-1959991

COLLAR, DRIVE END SPACE

$

$

Not available

23

Cub Cadet IH-404964-R1

PULLEY, MOTOR GENERATOR

Note: NOT INCLUDED IN MOTOR GENERATOR ASSY

$

$

Not available

24

Cub Cadet IH-443919-R91

BALL BEARING, COMUTATOR END

$

$

Not available

25

Cub Cadet IH-1941978

WASHER, DRIVE END SHAFT NUT LOCK

$

$

Not available

26

Cub Cadet IH-1915172

NUT, DRIVE END SHAFT

$

$

Currently unavailable

27

Cub Cadet IH-1929959

CLAMP, COMMUTATOR END BEARING

Note: PART OF FRAME, IH-1939907

$

$

Currently unavailable

28

Cub Cadet IH-1947344

PLATE, DRIVE END GREASE SLINGER

$

$

Not available

29

Cub Cadet IH-ST262

BALL BEARING, DRIVE END
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

30

Cub Cadet IH-1912008

GASKET, DRIVE END RETAINER PLATE

$

$

Not available

31

Cub Cadet IH-1955494

PLATE, DRIVE END RETAINER

$

$

Currently unavailable

32

Cub Cadet IH-1939902

SHOE, POLE

$

$

Currently unavailable

33

Cub Cadet IH-1914580

SCREW, DRIVE END RETAINER PLATE

$

$

Currently unavailable

34

Cub Cadet IH-809763

BOLT, THRU

$

$

Currently unavailable

35

Cub Cadet IH-9421424

WASHER, THRU BOLT

$

$

Currently unavailable

36

Cub Cadet IH-1921362

BUSHING, ARMATURE TERMINAL INSULATING

$

$

Currently unavailable
