185 - International Harvester Cub Lo-Boy Tractor Main Frame And Supports - Cub 154 (S/N 21492-Up) & All Cub 185 Parts Diagram

Cub Lo-Boy Tractor

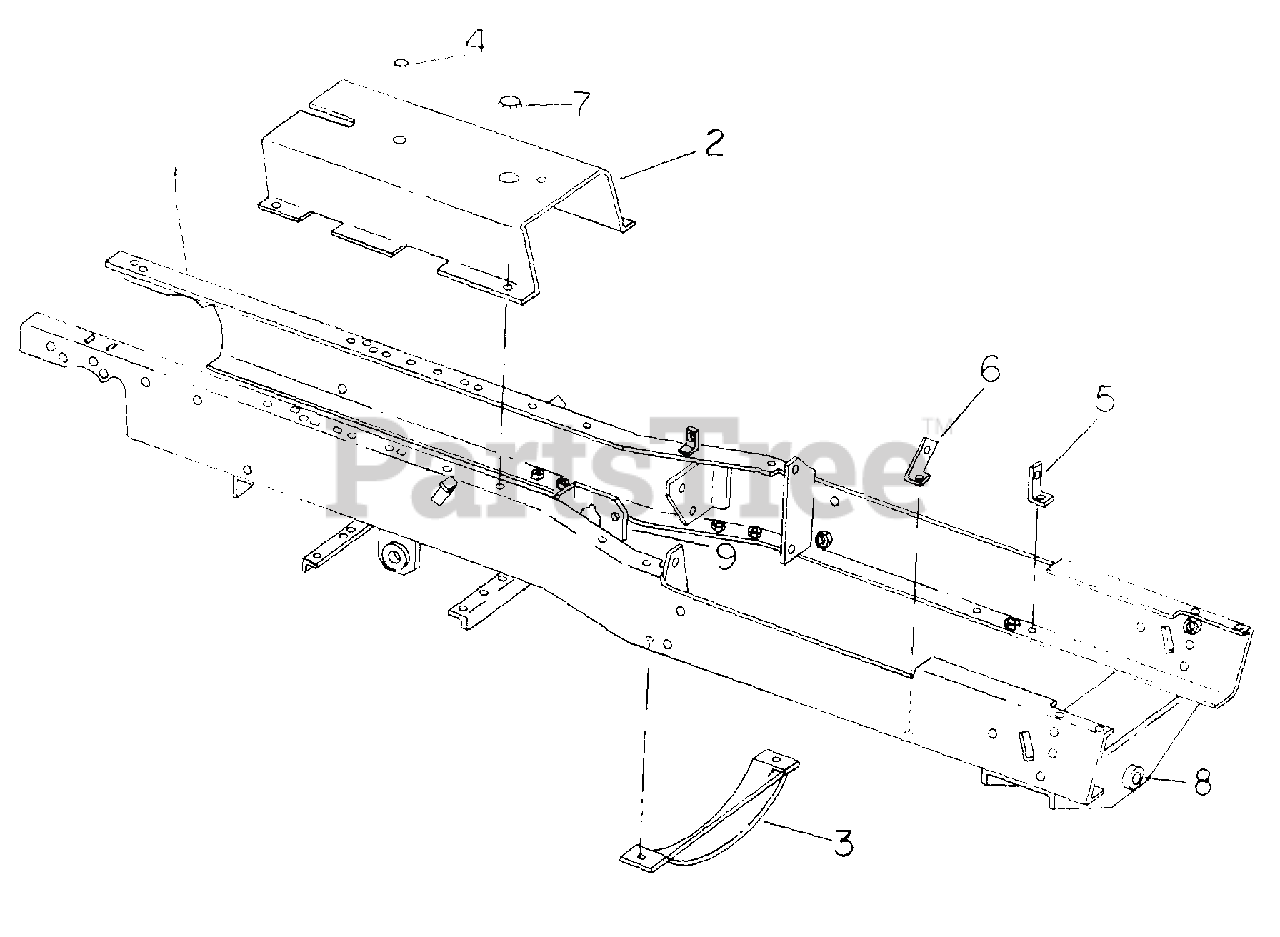

Main Frame And Supports - Cub 154 (S/N 21492-Up) & All Cub 185 Parts Diagram

  • Title

1

Cub Cadet IH-543947-R5

FRAME ASSY

$

$

Currently unavailable

Cub Cadet IH-519998-R1

SPACER, REAR FRAME

$

$

Not available

Cub Cadet IH-180128

SCREW, 3/8-16 X 1-3/4 HEX-HD CAP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet IH-24509-R1

SCREW, 3/8-16 X 2-7/8 ZND HEX-HD CAP TYPE 8

$

$

Currently unavailable

Cub Cadet IH-180175

SCREW, 1/2-13 X 1-1/4 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-58657-C1

SCREW, 1/2-13 X 3-1/4 ZND HEX-HD CAP TYPE 8

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 C-2 MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-455150-R1

WASHER, 17/32 X 1-1/14 X 1/4 ZND

$

$

Currently unavailable

Cub Cadet IH-180149

SCREW, 7/16-14 X 1-1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-180151

SCREW, 7/16-14 X 1-3/4 2ND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-271501

NUT, 7/16-14 C-Z HEX.
(Superseded to 912-3019)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120383

WASHER, 7/16 C-Z MED LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

2

Cub Cadet IH-404627-R2

COVER, FRAME TOP

$

$

Currently unavailable

Cub Cadet IH-172415

SCREW, 12-24 X 1/2 C-Z HEX-HD TAP
(Superseded to 710-1189)

$

$

Not available

3

Cub Cadet IH-404624-R2

SHIELD ASSY, FLYWHEEL

$

$

Currently unavailable

Cub Cadet IH-172427

SCREW, 1/4-20 X 1/2 HEX-HD CAP

$

$

Not available

4

Cub Cadet IH-142126

PLUG, 7/8 IN. BUTTON

$

$

Currently unavailable

5

Cub Cadet IH-126293-C1

ANGLE ASSY, ENGINE BRACKET LH

Note: REPLACES IH-404620-R1

$

$

Currently unavailable

Cub Cadet IH-404916-R1

BOLT, CAP FRONT ENGINE MOUNTING

$

$

Currently unavailable

Cub Cadet IH-124589

NUT, 5/8 TYPE 5

$

$

Currently unavailable

6

Cub Cadet IH-126294-C1

ANGLE ASSY, ENGINE BRACKET RH

Note: REPLACES IH-404622-R1

$

$

Currently unavailable

Cub Cadet IH-404916-R1

BOLT, CAP FRONT ENGINE MOUNTING

$

$

Currently unavailable

7

Cub Cadet IH-142095

PLUG, 1-1/4 IN. BUTTON

$

$

Currently unavailable

8

Cub Cadet IH-404618-R1

HUB, FRONT AXLE PIVOT PIN FRONT

$

$

Currently unavailable

8

Cub Cadet IH-404619-R1

HUB, FRONT AXLE PIVOT PIN REAR

$

$

Not available

9

Cub Cadet IH-404616-R1

SUPPORT, STEERING GEAR

$

$

Currently unavailable
