185 - International Harvester Cub Lo-Boy Tractor Independent Power Take-Off Cub 154 (S/N 18709-Up) & All Cub 185 Parts Diagram

Cub Lo-Boy Tractor

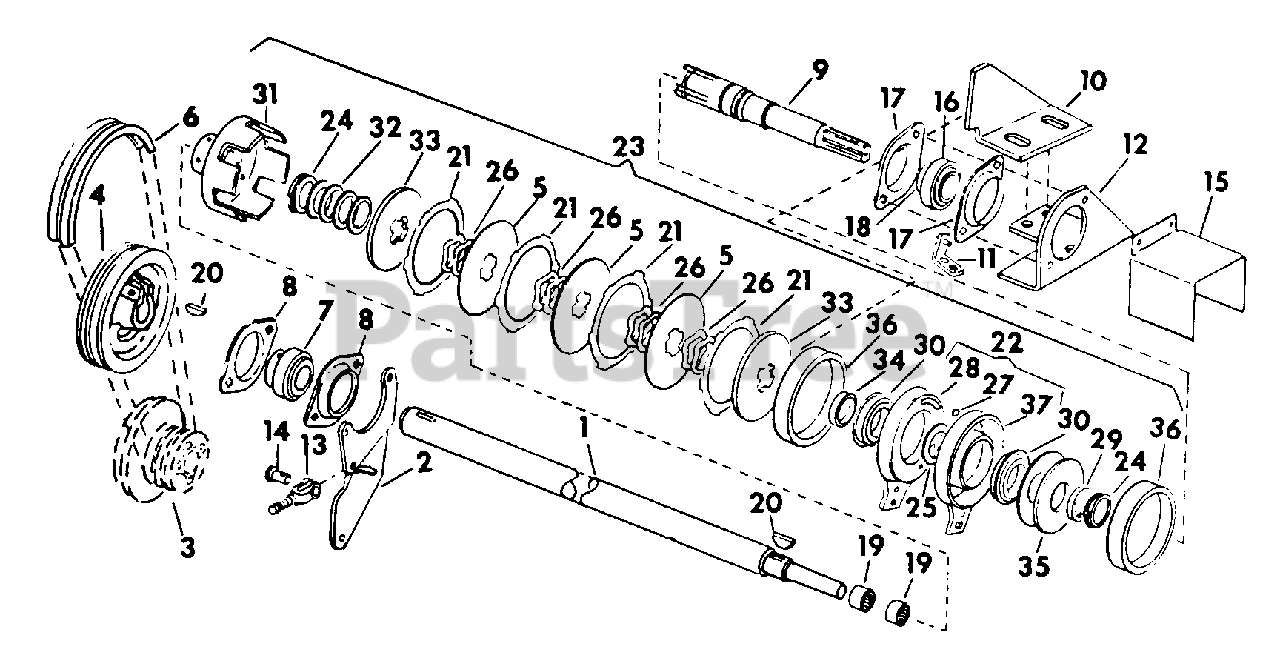

Independent Power Take-Off Cub 154 (S/N 18709-Up) & All Cub 185 Parts Diagram

  • Title

1

Cub Cadet IH-543602-R1

SHAFT, PTO DRIVE

$

$

Not available

2

Cub Cadet IH-404935-R1

ADJUSTER, PTO SHAFT & PULLEY

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

Cub Cadet IH-180124

SCREW, 3/8-16 X 1-1/4 HEX-HD CAP
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER, 13/32 X 13/16 X .051

$

$

Not available

3

FLYWHEEL AND DRIVE PULLEY

Note: ILLUSTRATED WITH C-60 ENGINE IN ENG-1 PARTS CATALOG

$

$

Not available

4

Cub Cadet IH-545341-R1

PULLEY, PTO DRIVEN

$

$

Currently unavailable

Cub Cadet IH-21333-R1

NUT, 3/8-16 ZND HEX.

$

$

Currently unavailable

Cub Cadet IH-23458-R1

SCREW, 3/8-16 X 2 ZND HEX-HD CAP TYPE 8

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 ZND MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

5

DISC SEPARATOR

Note: ORDER KIT, IH-527245-R92

$

$

Not available

6

Cub Cadet IH-527382-R91

BELTS, MATCHED SET PTO DRIVE V

$124.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-549165-R91

BEARING, PTO SHAFT FRONT BALL
(Superseded to IH-549165-R92)

$82.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-581469-R1

FLANGE, BRG

$

$

Currently unavailable

Cub Cadet IH-15008-R1

BOLT, 3/8-16 X 1 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-55616-C1

SCREW, HDLS SOC-SET

$

$

Currently unavailable

9

Cub Cadet IH-546651-R11

SHAFT

Note: W/TWO BEARINGS, IH-276574-R91, PTO CLUTCH

$

$

Not available

Cub Cadet IH-443566

FITTING, 3/16 DRIVE TYPE STR LUB-PTO CLUTCH SHAFT
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet IH-404921-R1

SUPPORT ASSY, INDEPENDENT PTO BRAKE BRACKET

$

$

Not available

Cub Cadet IH-180017

SCREW, 1/4-20 X 9/16 2ND HEX-HD CAP

$

$

Not available

Cub Cadet IH-180174

SCREW 1/2-13 X 1-1/8 2ND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-16558-R1

WASHER, 17/64 X 5/8 X .036
(Superseded to 936-3020)

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 X 1-1/16 X .074 C-Z
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet IH-404925-R2

BRACKET, CLUTCH CLEAT

$

$

Not available

Cub Cadet IH-548962-R1

SHIM, CLUTCH CLEAT .059

Note: 1 OR AS REQUIRED

$

$

Currently unavailable

Cub Cadet IH-180022

SCREW, 1/4-20 X 1 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120392

WASHER, 9/32 X 5/8 X .065 C-Z
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet IH-404939-R1

SUPPORT, PTO SHAFT BRG MTG BRACKET

$

$

Currently unavailable

13

Cub Cadet IH-404936-R1

YOKE ASSY, ADJUSTABLE

$

$

Currently unavailable

Cub Cadet IH-124925

NUT, 3/8-24 C-Z HEX. JAM

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER, 13/32 X 13/16 X .051

$

$

Not available

14

Cub Cadet IH-103496

PIN, 3/8 X 1-3/32 ROD END
(Superseded to 911-3010)

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT.
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

15

Cub Cadet IH-404940-R1

GUARD, PTO SHAFT

$

$

Currently unavailable

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 2ND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 C-2 MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-66740-C1

SPACER, IPTO SAFETY SWITCH

$

$

Currently unavailable

16

Cub Cadet IH-528343-R91

BEARING, PTO SHAFT REAR BALL
(Superseded to IH-528343-R93)

$

$

Not available

17

Cub Cadet IH-581469-R1

FLANGE, BRG

$

$

Currently unavailable

Cub Cadet IH-15008-R1

BOLT, 3/8-16 X 1 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

18

Cub Cadet IH-557115-R11

COLLAR W/SET SCREW, LOCKING

$

$

Not available

19

Cub Cadet IH-276574-R91

BEARING, PTO IDLER SHAFT NEEDLE

$

$

Not available

20

Cub Cadet IH-124552

KEY, 3/16 X 1 WOODRUFF 13

$

$

Not available

21

DISC FRICTION

Note: ORDER KIT, IH-527245-R92

$

$

Not available

22

Cub Cadet IH-545394-R92

KIT, ACTUATOR REBUILD
(Superseded to IH-545394-R93)

Note: CONSISTS OF REF NOS 27, 28, 32 AND 37

$

$

Not available

23

Cub Cadet IH-404938-R94

CLUTCH ASSY, INDEPENDENT PTO

Note: CONSISTS OF REF NOS 5, 9, 19, 21, 22 AND 24-37

$

$

Not available

24

Cub Cadet IH-406986-R1

RING, SNAP

$

$

Not available

25

Cub Cadet IH-659380-R1

RING, SNAP

$

$

Not available

26

Cub Cadet IH-527246-R1

SPRING, WAVE

$

$

Currently unavailable

27

Cub Cadet IH-16014-R1

BALL, 7/16 CR-STL

$

$

Currently unavailable

28

CAM, ACTUATING

Note: ORDER KIT, IH-545394-R92

$

$

Not available

29

Cub Cadet IH-527233-R1

RETAINER

$

$

Not available

30

Cub Cadet IH-59769-C91

BEARING, CAM
(Superseded to IH-59769-C92)

$

$

Not available

31

Cub Cadet IH-547292-R1

CUP ASSY, DRIVE

Note: REPLACES IH-527240-R1

$

$

Not available

Cub Cadet IH-102571

SCREW, 1/4 X 5/16 HEX-SOC-HD CUP-PT SET

$

$

Not available

32

Cub Cadet IH-527247-R1

SHIM

$

$

Not available

33

Cub Cadet IH-527244-R1

PLATE, PRESSURE

$

$

Not available

34

Cub Cadet IH-530168-R1

SPACER

$

$

Not available

35

Cub Cadet IH-527236-R1

SPRING, LOAD

$

$

Not available

Cub Cadet IH-527243-R1

SPRING

$

$

Not available

36

Cub Cadet IH-527241-R1

COVER, CAM

$

$

Not available

37

CAM, STATIONARY

Note: ORDER KIT, IH-545394-R92

$

$

Not available

Cub Cadet IH-527245-R92

KIT, DISC PACK REPAIR

Note: CONSISTS OF THE FOLLOWING 7 ITEMS

$499.99

$

Usually ships in 3-6 days

0

DISC, FRICTION

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

DISC, SEPARATOR

Note: NOT AVALIABLE SEPARATELY

$

$

Not available

Cub Cadet IH-527239-R1

NUT

$

$

Currently unavailable

Cub Cadet IH-406986-R1

RING

$

$

Not available

Cub Cadet IH-531973-R1

SCREW

$

$

Currently unavailable

Cub Cadet IH-527247-R1

SHIM

$

$

Not available

Cub Cadet IH-527246-R1

SPRING

$

$

Currently unavailable
