185 - International Harvester Cub Lo-Boy Tractor Hydraulic Pump Parts Diagram

Cub Lo-Boy Tractor

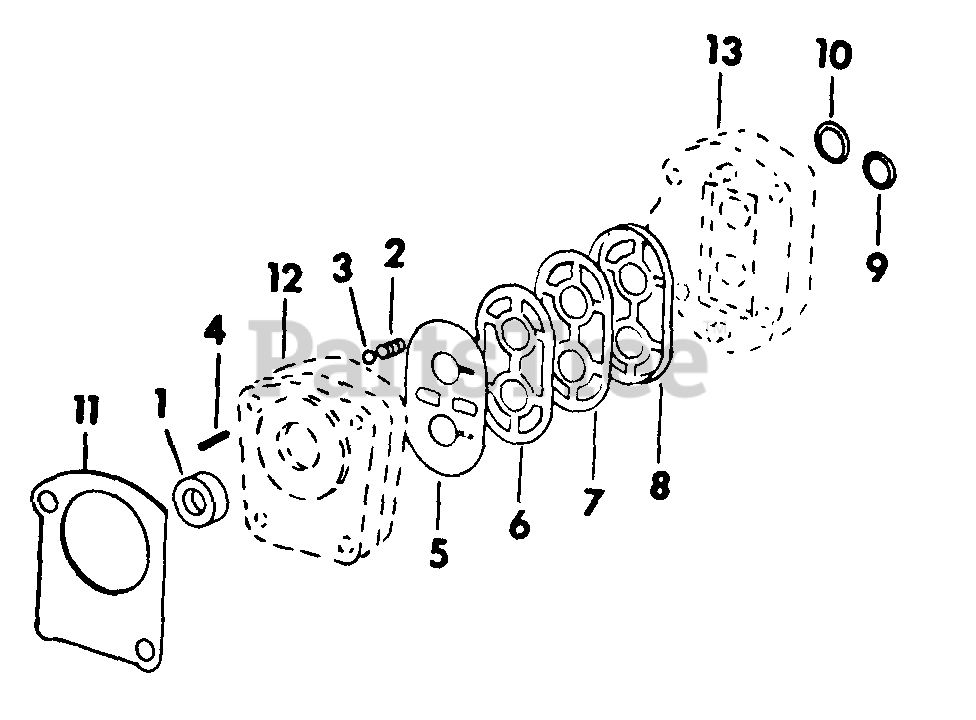

Hydraulic Pump Parts Diagram

  • Title

Cub Cadet IH-544017-R91

PUMP ASSY, HYDRAULIC

Note: OPTIONAL W/547135-R91

$

$

Currently unavailable

1

Cub Cadet IH-202996-C91

SEAL, PUMP SHAFT OIL

$

$

Currently unavailable

2

Cub Cadet IH-668391-R1

SPRING, BALL CHECK

$

$

Currently unavailable

Cub Cadet IH-58930-C1

RING, SNAP RETAINER

$

$

Currently unavailable

3

Cub Cadet IH-16006-R1

BALL, 3/16 CR-STL

$

$

Not available

4

Cub Cadet IH-529449-R1

KEY, 1/8 X 1/2 SQ PARALLEL - DRIVE GEAR

$

$

Currently unavailable

5

Cub Cadet IH-668385-R1

DIAPHRAGM, PUMP COVER

$

$

Currently unavailable

6

Cub Cadet IH-668384-R1

GASKET, BACKUP

$

$

Not available

7

Cub Cadet IH-668383-R1

GASKET, PROTECTOR

$

$

Not available

8

Cub Cadet IH-668386-R1

SEAL DIAPHRAGM

$

$

Not available

9

Cub Cadet IH-364839-R1

O-RING, 3/8 OD TUBE - PRESSURE PORT
(Superseded to 721-3001)

$3.49

$

In Stock, Qty 6

0

10

Cub Cadet IH-364885-R1

O-RING, 5/8 OD TUBE - SUCTION PORT
(Superseded to 921-3005)

$

$

Not available

11

Cub Cadet IH-351677-R1

GASKET, PUMP MTG

$

$

Not available

12

BODY

Note: NOT SERVICED SEPARATELY, ORDER PUMP ASSY 544017-R91

$

$

Not available

13

BODY

Note: NOT SERVICED SEPARATELY, ORDER PUMP ASSY 544017-R91

$

$

Not available

Cub Cadet IH-544024-R91

PACKAGE, O-RING AND GASKET

Note: CONSISTS OF THE FOLLOWING 8 ITEMS

$

$

Currently unavailable

Cub Cadet IH-204287-C1

DIAPHRAGM

$

$

Currently unavailable

Cub Cadet IH-668385-R1

DIAPHRAGM

$

$

Currently unavailable

Cub Cadet IH-668384-R1

GASKET

$

$

Not available

Cub Cadet IH-668383-R1

GASKET

$

$

Not available

Cub Cadet IH-351677-R1

GASKET

$

$

Not available

Cub Cadet IH-364839-R1

O-RING
(Superseded to 721-3001)

$3.49

$

In Stock, Qty 6

0

Cub Cadet IH-364885-R1

O-RING
(Superseded to 921-3005)

$

$

Not available

Cub Cadet IH-668386-R1

SEAL

$

$

Not available
