185 - International Harvester Cub Lo-Boy Tractor Cranking Motor - Delco Remy - 12 Volt Parts Diagram

Cub Lo-Boy Tractor

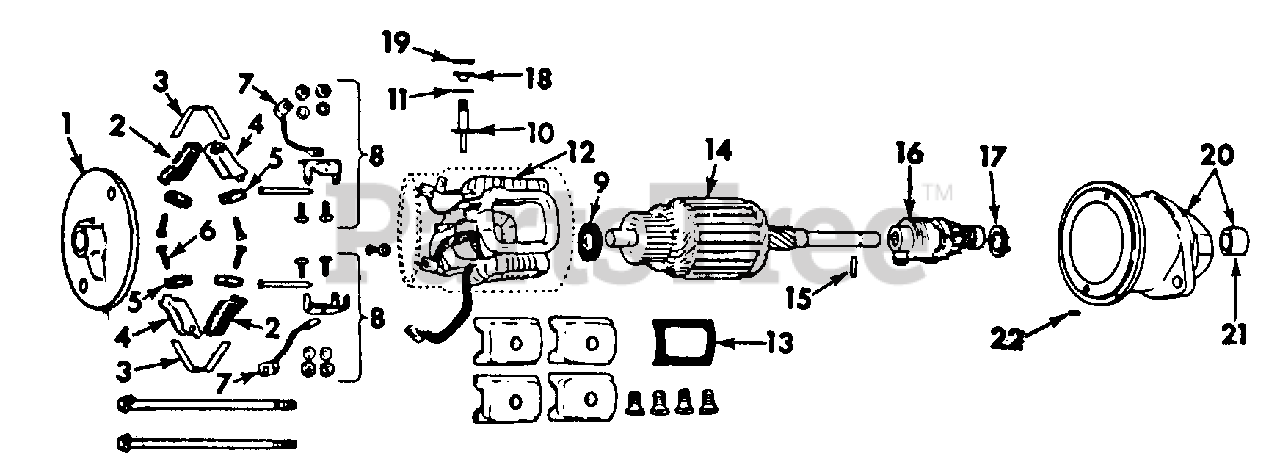

Cranking Motor - Delco Remy - 12 Volt Parts Diagram

  • Title
1

Cub Cadet IH-109352

MOTOR ASSY, CRANKING IH-131174-C91

$

$

Currently unavailable

Cub Cadet IH-179839

BOLT, 3/8 X 1 PLN TYPE 5

$

$

Not available

Cub Cadet IH-120394

WASHER, .406 X .812 X .051
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 PLN LOCK

$

$

Currently unavailable

1

Cub Cadet IH-1977457

FRAME, COMMUTATOR END

$

$

Currently unavailable

2

Cub Cadet IH-1926618

HOLDER, INSULATED BRUSH

$

$

Currently unavailable

3

Cub Cadet IH-1926622

SPRING, BRUSH

$

$

Currently unavailable

4

Cub Cadet IH-1940477

HOLDER, GROUND BRUSH

$

$

Currently unavailable

$

$

Not available

6

Cub Cadet IH-1967747

SCREW, COMMUTATOR BRUSH HOLDER

$

$

Currently unavailable

Cub Cadet IH-443527

SCREW, COMMUTATOR BRUSH GROUND HOLDER

$

$

Currently unavailable

7

Cub Cadet IH-1960864

LEAD, GROUND BRUSH

$

$

Currently unavailable

8

Cub Cadet IH-1928015

KIT, BRUSH HOLDER SUPPORT

$

$

Currently unavailable

9

Cub Cadet IH-1914842

WASHER, COMMUTATOR END BRAKE

$

$

Currently unavailable

10

Cub Cadet IH-1956246

STUD, TERMINAL

$

$

Currently unavailable

11

Cub Cadet IH-1961386

WASHER, INSULATED TERMINAL STUD

$

$

Currently unavailable

12

Cub Cadet IH-1974435

COIL ASSY, FIELD 4 COILS

$

$

Currently unavailable

13

Cub Cadet IH-1927853

INSULATION, FIELD COIL

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Cub Cadet IH-1963637

PIN, ARMATURE SHAFT

$

$

Currently unavailable

16

Cub Cadet IH-1963642

DRIVE ASSY, MOTOR

$

$

Currently unavailable

17

Cub Cadet IH-1853917

WASHER, DRIVE END SPACE

$

$

Currently unavailable

18

Cub Cadet IH-1961387

BUSHING, INSULATED TERMINAL STUD

$

$

Currently unavailable

19

Cub Cadet IH-805613

WASHER, INSULATED TERMINAL STUD

$

$

Currently unavailable

20

Cub Cadet IH-1963640

HOUSING ASSY, DRIVE END

$

$

Currently unavailable

21

Cub Cadet IH-810620

BUSHING, DRIVE END HOUSING

$

$

Currently unavailable

22

Cub Cadet IH-809593

PIN, DRIVE END DOWEL

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable
