185 - International Harvester Cub Lo-Boy Tractor Crankcase & Related Parts Parts Diagram

Cub Lo-Boy Tractor

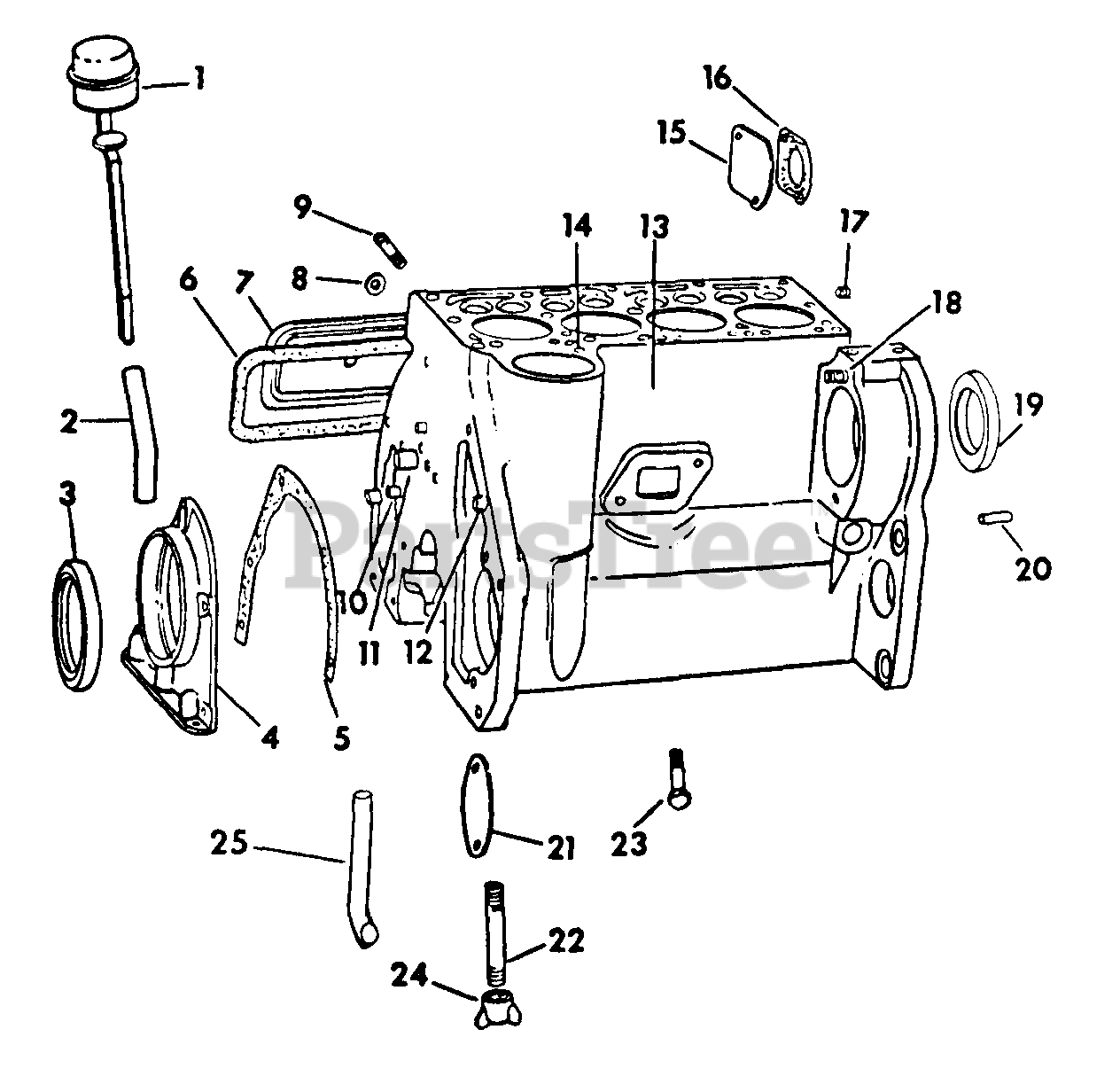

Crankcase & Related Parts Parts Diagram

  • Title

1

Cub Cadet IH-366697-R91

GAUGE W/BREATHER CAP, OIL LEVEL

$

$

Currently unavailable

2

Cub Cadet IH-366696-R1

TUBE OIL FILLER AND BREATHER

$

$

Currently unavailable

3

Cub Cadet IH-364692-R91

SEAL, CRANKSHAFT REAR OIL
(Superseded to IH-364692-R92)

$

$

Not available

4

Cub Cadet IH-251363-R21

RETAINER W/SEAL

Note: IH-364692-R91, CRANKSHAFT REAR OIL SEAL

$591.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-364692-R91

CRANKSHAFT REAR OIL SEAL
(Superseded to IH-364692-R92)

$

$

Not available

Cub Cadet IH-179817

SCREW, 5/16-18 X 7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

5

Cub Cadet IH-251364-R1

GASKET, CRANKSHAFT REAR OIL SEAL RETAINER

$

$

Not available

6

Cub Cadet IH-251371-R1

GASKET, VALVE TAPPET COVER

$

$

Not available

7

Cub Cadet IH-251372-R1

COVER, VALVE TAPPET

$

$

Currently unavailable

Cub Cadet IH-179830

SCREW, 5/16-18 X 3 HEX-HD CAP

$

$

Currently unavailable

8

Cub Cadet IH-251373-R1

WASHER, VALVE TAPPET COVER BOLT

$

$

Not available

9

Cub Cadet IH-351678-R1

STUD, MANIFOLD

$

$

Not available

10

Cub Cadet IH-58981D

DOWEL, OIL PUMP BODY

$

$

Currently unavailable

11

Cub Cadet IH-251389-R1

SHAFT, OIL PUMP IDLER

$

$

Currently unavailable

12

Cub Cadet IH-25597D

DOWEL, CLUTCH HOUSING

$

$

Currently unavailable

13

Cub Cadet IH-405031-R92

CRANKCASE W/PISTONS AND RINGS ASSY

Note: COMPOSED OF THE FOLLOWING 24 ITEMS

$

$

Currently unavailable

Cub Cadet IH-358247-R1

BOLT

$

$

Currently unavailable

Cub Cadet IH-110675

CAP

$

$

Not available

Cub Cadet IH-251357-R2

CAP

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-251358-R2

CAP

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-251341-R8

CRANKCASE

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-25597D

DOWEL

$

$

Currently unavailable

Cub Cadet IH-58981D

DOWEL

$

$

Currently unavailable

Cub Cadet IH-352973-R3

GUIDE

$

$

Currently unavailable

Cub Cadet IH-251391-R1

NIPPLE

$

$

Currently unavailable

Cub Cadet IH-58981D

PIN

$

$

Currently unavailable

Cub Cadet IH-251241-R1

PIN

$

$

Currently unavailable

Cub Cadet IH-405007-R1

PISTON

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Cub Cadet IH-444654

PLUG

$

$

Currently unavailable

Cub Cadet IH-444687

PLUG

$

$

Currently unavailable

Cub Cadet IH-444697

PLUG

$

$

Currently unavailable

Cub Cadet IH-251242-R1

RETAINER

$

$

Not available

Cub Cadet IH-251243-R1

RING

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-251244-R1

RING

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-251245-R1

RING

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-251379-R91

SEAL

$

$

Not available

Cub Cadet IH-251389-R1

SHAFT

$

$

Currently unavailable

Cub Cadet IH-351678-R1

STUD

$

$

Not available

Cub Cadet IH-353946-R1

STUD

$

$

Currently unavailable

Cub Cadet IH-366696-R1

TUBE

$

$

Currently unavailable

Cub Cadet IH-180149

SCREW, 7/16-14 X 1-1/2 ZND HEX-HD CAP

Note: THRU RH REAR ENGINE FLANGE INTO RH ENGINE MTG SUPPORT

$

$

Currently unavailable

Cub Cadet IH-180151

SCREW, 7/16-14 X 1-3/4 ZND HEX-HD CAP

Note: THRU LH REAR ENGINE FLANGE INTO LH ENGINE MTG SUPPORT

$

$

Currently unavailable

14

Cub Cadet IH-444687

PLUG, 1/8-27 AUTO SQ-HD PIPE CRANKCASE OIL HOLE

$

$

Currently unavailable

15

Cub Cadet IH-351676-R1

COVER, HYD LIFT PUMP OPENING

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

16

Cub Cadet IH-351677-R1

GASKET, HYD LIFT PUMP OPENING COVER

$

$

Not available

17

Cub Cadet IH-444654

PLUG, 1/4-18 AUTO SQ-SOC PIPE CRANKCASE OIL HOLE

$

$

Currently unavailable

18

Cub Cadet IH-353946-R1

STUD, MOUNTING DISTRIBUTOR DRIVE HOUSING

$

$

Currently unavailable

19

Cub Cadet IH-251379-R91

SEAL, MAGNETO DRIVE OIL

$

$

Not available

20

Cub Cadet IH-58981D

PIN, IDLER GEAR SHAFT LOCATING

Note: WILL WORK FOR IH-17847D

$

$

Currently unavailable

21

Cub Cadet IH-48554D

COVER, STARTER PAD TRACTOR W/MOTOR - GENERATOR

$

$

Currently unavailable

Cub Cadet IH-179834

SCREW, 3/8-16 X 9/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER, 13/32 X 13/16 X 16 GA

$

$

Not available

22

Cub Cadet IH-251391-R1

NIPPLE, 3/8 X 5-7/8 PIPE OIL FILTER DRAIN

$

$

Currently unavailable

23

Cub Cadet IH-358247-R1

BOLT, CRANKCASE BEARING CAP

$

$

Currently unavailable

24

Cub Cadet IH-110675

CAP, OIL FILTER DRAIN PIPE NIPPLE

$

$

Not available

25

NOT USED IN THIS APPLICATION

$

$

Not available
