185 - International Harvester Cub Lo-Boy Tractor Crankcase Front Cover & Idler Gear Parts Diagram

Cub Lo-Boy Tractor

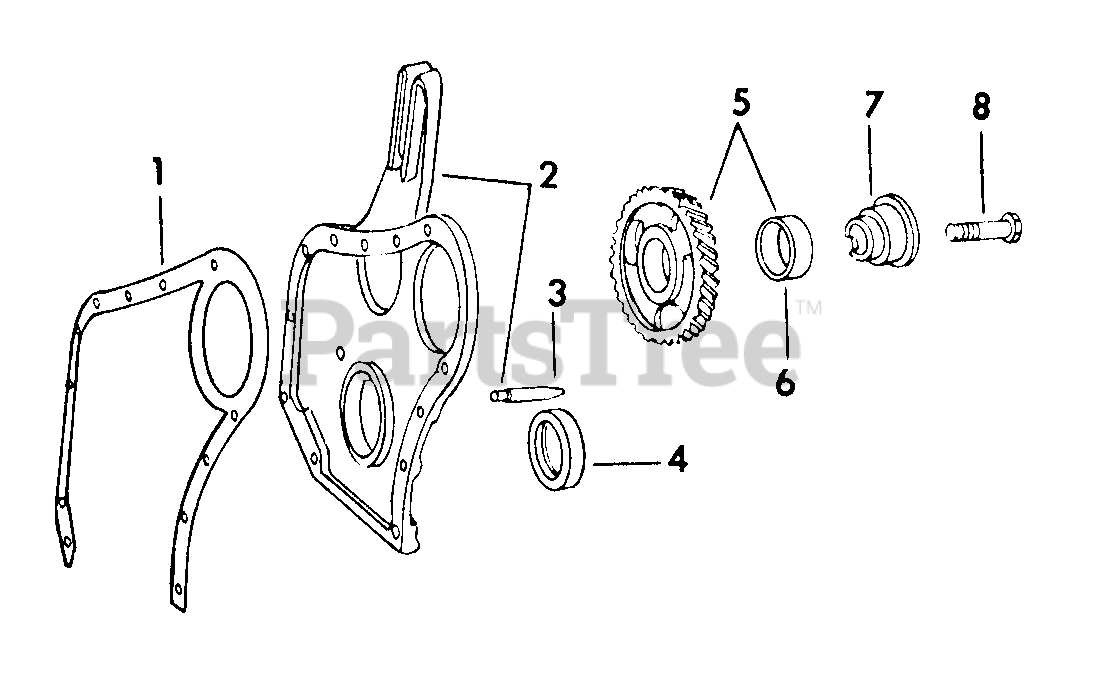

Crankcase Front Cover & Idler Gear Parts Diagram

  • Title

1

Cub Cadet IH-355945-R1

GASKET CRANKCASE FRONT COVER

$

$

Not available

2

Cub Cadet IH-351674-R12

COVER ASSY, CRANKCASE FRONT

Note: ALSO ORDER SEAL ASSY, IH-378193-R91

$

$

Currently unavailable

Cub Cadet IH-179818

SCREW, 5/16-18 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-179824

SCREW, 5/16-18 X 1-3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

3

Cub Cadet IH-251367-R1

POINTER, TIMING

$

$

Currently unavailable

4

Cub Cadet IH-378193-R91

SEAL W/RING, CRANKCASE FRONT COVER OIL

Note: REPLACES IH-49177D

$

$

Not available

5

Cub Cadet IH-251374-R11

GEAR W/BUSHING, IDLER

$

$

Currently unavailable

6

Cub Cadet IH-251375-R1

BUSHING, IDLER GEAR

$

$

Not available

7

Cub Cadet IH-251376-R1

SHAFT, IDLER GEAR

$

$

Not available

8

Cub Cadet IH-358248-R1

BOLT, IDLER GEAR SHAFT

$

$

Currently unavailable
