185 - International Harvester Cub Lo-Boy Tractor Control Valve Parts Diagram

Cub Lo-Boy Tractor

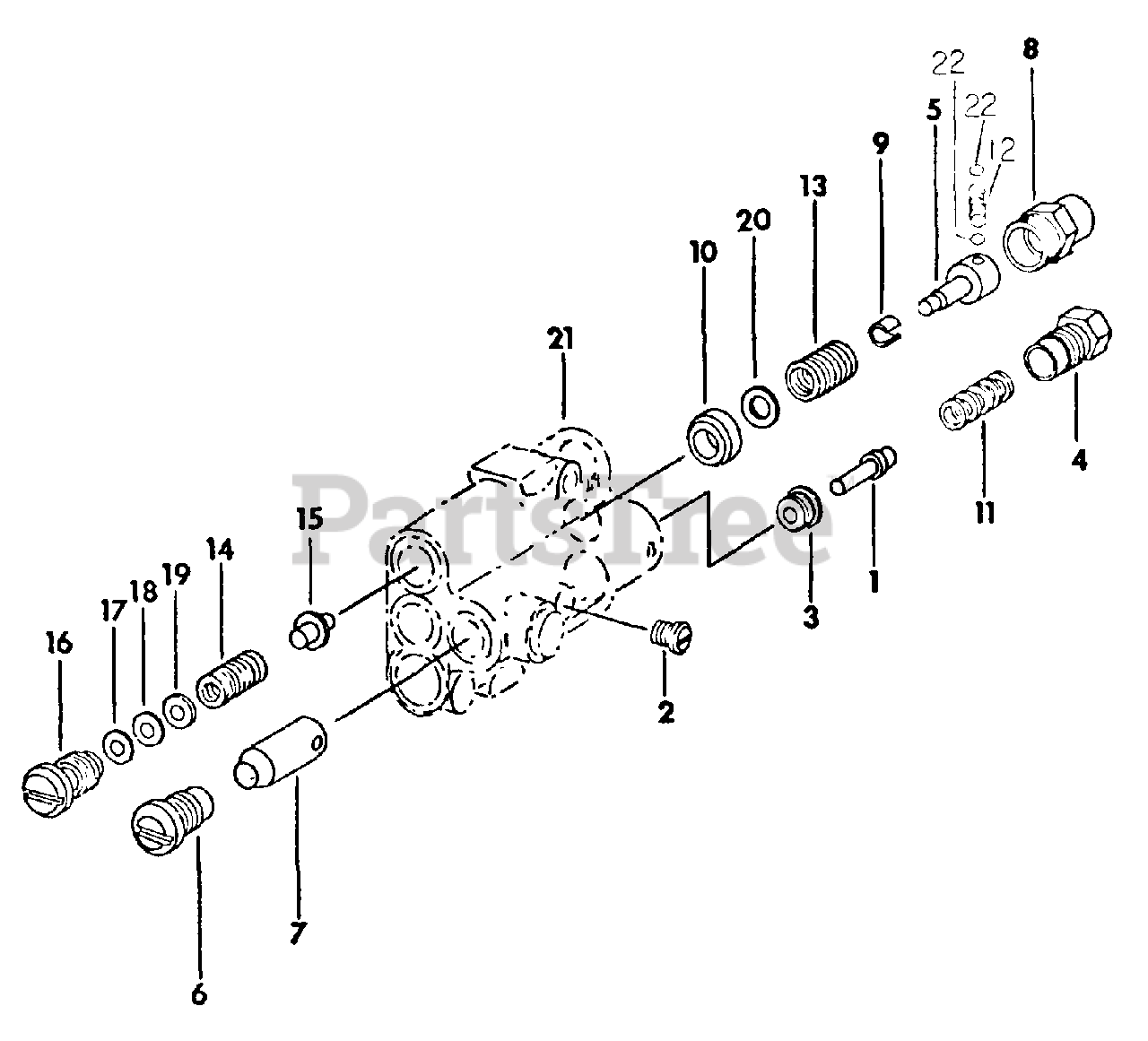

Control Valve Parts Diagram

  • Title

Cub Cadet IH-546545-R91

VALVE ASSY, CONTROL

Note: CONSISTS OF THE FOLLOWING ITEMS

$

$

Currently unavailable

$

$

Not available

$

$

Currently unavailable

3

Cub Cadet IH-546783-R1

SEAT, WASHER

$

$

Currently unavailable

4

Cub Cadet IH-546784-R1

PLUG, ADAPTER

$

$

Currently unavailable

5

Cub Cadet IH-674498-R1

SCREW, DETENT

$

$

Currently unavailable

6

Cub Cadet IH-546785-R1

PLUG, PLUNGER

$

$

Currently unavailable

$

$

Currently unavailable

8

$

$

Currently unavailable

$

$

Currently unavailable

10

Cub Cadet IH-674775-R1

BUSHING, DETENT

$

$

Currently unavailable

11

Cub Cadet IH-674517-R1

SPRING, LOCKOUT

$

$

Currently unavailable

12

Cub Cadet IH-201737-C1

SPRING, DETENT

$

$

Currently unavailable

13

Cub Cadet IH-598883-R1

SPRING, SPOOL CENTERING

$

$

Currently unavailable

14

Cub Cadet IH-632843-R1

SPRING, POPPET

$

$

Currently unavailable

15

Cub Cadet IH-674501-R1

POPPET

Note: REPLACES IH-668377-R91

$

$

Currently unavailable

16

Cub Cadet IH-547183-R1

PLUG, POPPET

$

$

Currently unavailable

17

Cub Cadet IH-674504-R1

WASHER, .015

$

$

Currently unavailable

18

Cub Cadet IH-394655-R1

WASHER, .010

$

$

Currently unavailable

19

Cub Cadet IH-673647-R1

WASHER, .035

$

$

Currently unavailable

20

Cub Cadet IH-202649-C1

WASHER, .046

$

$

Not available

Cub Cadet IH-824545-C1

WASHER, .020

$

$

Currently unavailable

21

BODY

Note: NOT SERVICED SEPARATELY ORDER VALVE ASSY IH-546545-R91

$

$

Not available

22

Cub Cadet IH-16005-R1

BALL, 5/32 CR-STL

$

$

Not available

Cub Cadet IH-546781-R91

PACKAGE O-RING AND GASKET

Note: CONSISTS OF THE FOLLOWING 6 ITEMS

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Not available

$

$

Not available

$

$

Currently unavailable

Cub Cadet IH-370920-R1

O-RING
(Superseded to 721-0184)

$

$

Not available

$

$

Currently unavailable
