185-707-372 - MTD Walk-Behind Mower, Electric (1995) (Hechinger) General Assembly Parts Diagram

Walk-Behind Mower, Electric

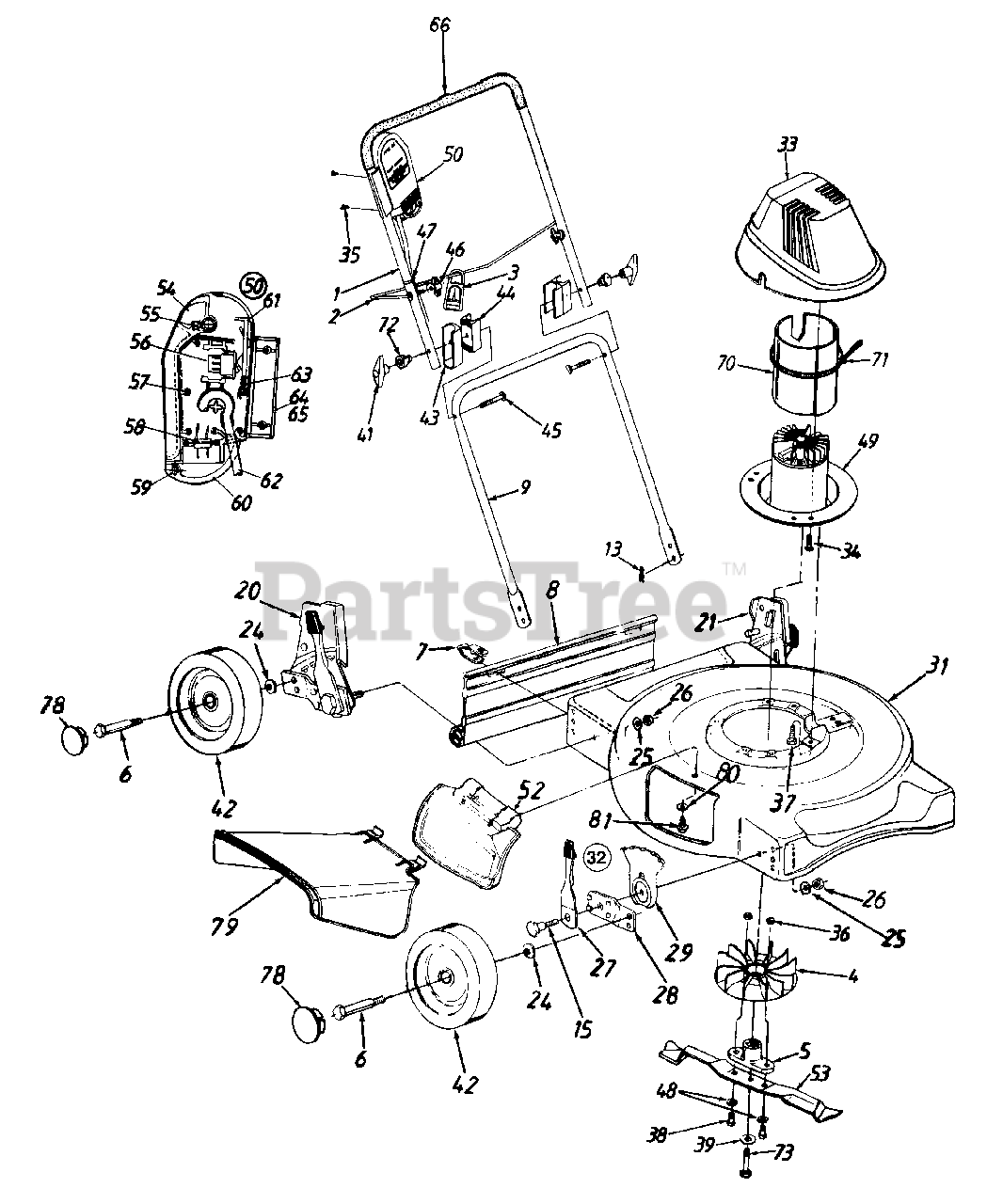

General Assembly Parts Diagram

  • Title

1

MTD 749-0883

Upper Handle

Variations

MTD 749-0883-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 747-0790

Cord Control Rod
(Superseded to 747-1094)

$

$

Not available

3

MTD 725-1590

Strain Relief-Cord

$

$

Not available

4

MTD 731-1270

Fan

$

$

Not available

5

MTD 748-0356

Blade Adapter

$

$

Not available

6

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

7

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

8

MTD 731-1028

Rear Flap

$34.99

$

In Stock, only 1 left!

0

9

MTD 749-0885

Lower Handle

Variations

MTD 749-0885-0637

Lower Handle - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

15

MTD 738-0507B

Shld. Bolt .5" Dia. x .434"

$4.49

$

In Stock, only 4 left!

0

20

MTD 682-3024

Handle Brkt. Ass'y.-R.H.
(Superseded to 987-02106A)

Variations

MTD 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

21

MTD 682-3025

Handle Brkt. Ass'y.-L.H.
(Superseded to 987-02107A)

Variations

MTD 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

24

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

26

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

27

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

28

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

29

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

?30

MTD 782-5025

Front Baffle
(Superseded to 782-5025-0637)

Variations

MTD 782-5025-0637

BAFFLE-FR - POWDER BLACK (0637)

$

$

Not available

MTD 782-5025-0638

BAFFLE-FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

31

MTD 682-0018

18" Deck Ass'y.

Variations

MTD 682-0018-0483

No Longer Available DECK-ASSY- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0018-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0018-0499

No Longer Available DECK-ASSY- - CUB BEIGE (0499)

$

$

Not available

MTD 682-0018-0638

No Longer Available DECK-ASSY- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0018-0662

18" Deck Assy. - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0018-0665

No Longer Available DECK-ASSY- - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0018-0691

No Longer Available DECK-ASSY- - BLACK JACK (0691)

$

$

Not available

$

$

32

MTD 14578

Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

33

MTD 731-1263

Motor Cover

$

$

Not available

34

MTD 710-1128

Scr. #10-16 x .75" Lg.

$

$

Not available

35

MTD 710-1150

Self-Tap. Scr. #7 x 1" Lg.

$

$

Not available

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

37

MTD 710-1006

Hex L-Wash. TT-Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

38

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

39

MTD 736-0452

Bell-Wash. .396" I.D. x 1.14"

$4.99

$

In Stock, Qty 5

0

41

MTD 720-0241

Plastic Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

42

MTD 734-1781

Wheel Ass'y. Comp. (8" x 1.75")

$32.99

$

In Stock, Qty 7

0

MTD 734-1699

Wheel Ass'y. Comp. (7" x 1.5")

$

$

Not available

43

MTD 731-1268

Upper Handle Insulator

$16.99

$

Usually ships in 3-6 days

0

44

MTD 731-1267

Lower Handle Insulator

$

$

Not available

45

MTD 710-0450

Carriage Bolt 5/16-18 x 3" Lg.

$6.49

$

Usually ships in 3-6 days

0

46

MTD 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

47

MTD 726-0303

Cable Tie

$

$

Not available

48

MTD 736-0331

Bell-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 818-60013

Motor, Cord & Switch Ass'y.

$

$

Not available

50

MTD 624-0032

Cord & Switch Ass'y. Comp.

$

$

Not available

52

MTD 682-7002

Mulching Plug

$

$

Not available

53

MTD 742-0718

18" Blade
(Superseded to 942-0718)

$

$

Not available

54

MTD 731-1210

Handle-Switch Actuator

$

$

Not available

55

MTD 732-0679

Spring-Switch Handle

$

$

Not available

56

MTD 725-1565

Switch
(Superseded to 925-1565)

$

$

Not available

57

MTD 710-1147

Screw #6-32 x .5" Lg.

$

$

Not available

58

MTD 729-0304

Plug Ass'y.
(Superseded to 929-0304)

$

$

Not available

59

MTD 732-0680

Retainer Plug Spring
(Superseded to 932-0680)

$

$

Not available

60

MTD 731-1211

Retainer Plug

$

$

Not available

61

MTD 731-1198

Latch

$

$

Not available

62

MTD 624-0053

Cord Ass'y.

Note: (Incl. Ref. #58)

$

$

Not available

63

MTD 732-0681

Spring Latch

$

$

Not available

64

MTD 731-1208

Housing-Upper Half

$

$

Not available

65

MTD 731-1209

Housing-Lower Half

Note: (Not Shown)

$

$

Not available

66

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

70

MTD 721-0311

Insulator

$

$

Not available

71

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

72

MTD 731-1388

Insulator Knob

$

$

Not available

73

MTD 710-1251

Hex Bolt 3/8-24 x 2.5" Lg.

$

$

Not available

78

MTD 720-0258

Hub Cap

Note: (Optional)

$

$

Not available

79

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

80

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

81

MTD 710-0599

Hex Wash. Hd. Tt-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0
