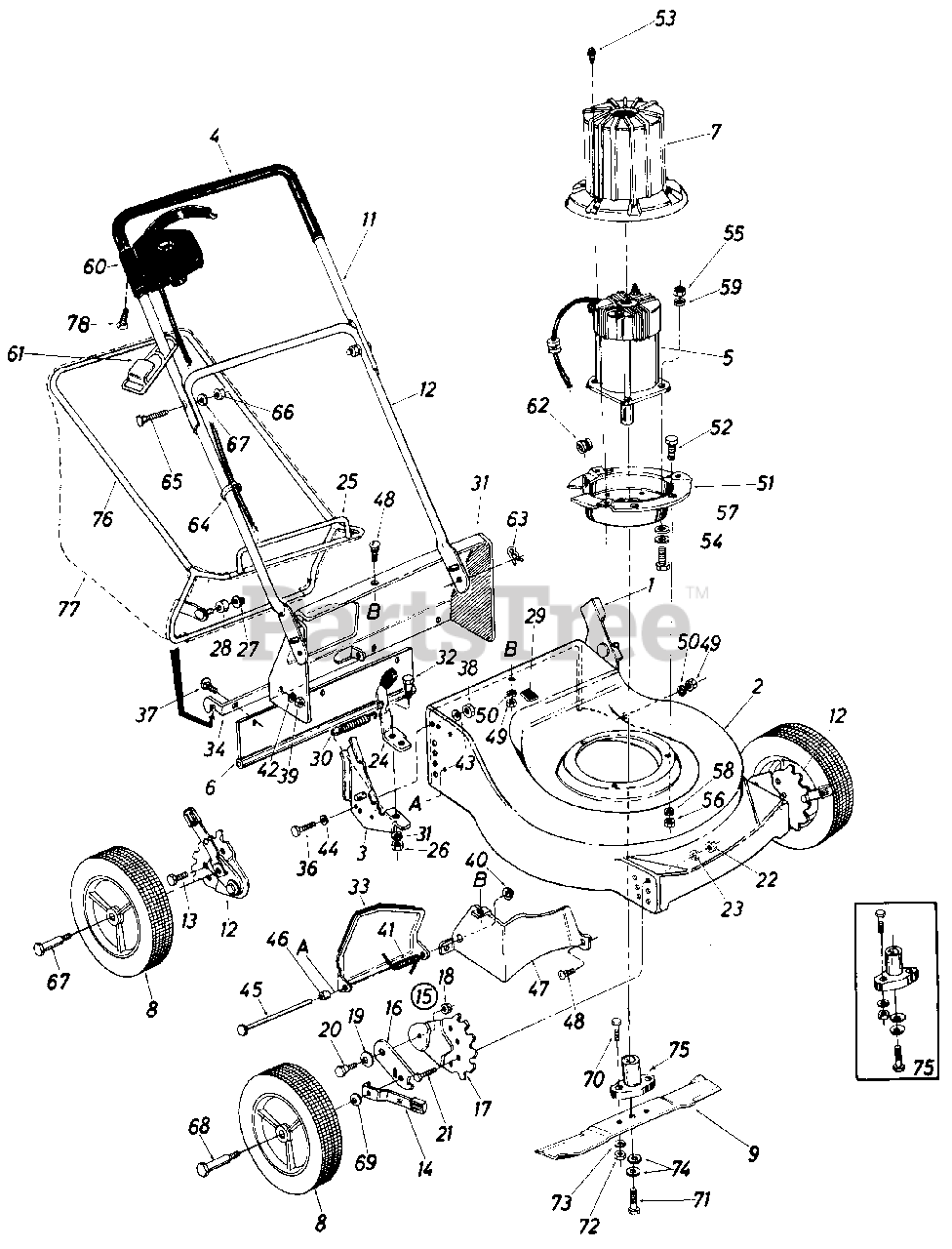

185-312-000 - MTD Walk-Behind Mower, Electric (1985) Parts Parts Diagram

Walk-Behind Mower, Electric

Parts Parts Diagram

  • Title

1

MTD 12297

Handle Brkt. Ass'y.-L.H.

$

$

Not available

2

MTD 15864

20" Deck Ass'y.

$

$

Currently unavailable

3

MTD 14592

Handle Brkt. Ass'y.-R.H.

$

$

Currently unavailable

4

MTD 718-0145

Grip

$

$

Currently unavailable

5

120V Electric Motor-B&S 101120

$

$

Not available

6

MTD 731-0581

Rear Flap Ass'y.
(Superseded to 731-0665)

$

$

Not available

7

MTD 731-0655

Shroud

$

$

Not available

8

MTD 734-0841

Plastic Wheel 8 x 1.75

$

$

Not available

9

MTD 742-0123

20" Blade

$

$

Not available

MTD 749-0505

Lower Handle (Chrome)
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

11

MTD 749-0569

Upper Handle (Chrome)

$

$

Currently unavailable

12

MTD 12321

Height Adjust. Ass'y.-L.H.

$

$

Not available

13

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 12

0

14

MTD 10531

Spring Lever Ass'y. w/Knob

$

$

Not available

15

MTD 12322

Height Adjust. Ass'y.-R.H.

$

$

Not available

16

MTD 10619

Pivot Bar

$

$

Not available

17

MTD 12323

Index Plate

$

$

Not available

18

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

19

MTD 736-0255

Bell-Wash. .515" I.D. x 1.14" O.D.

$4.99

$

In Stock, only 3 left!

0

20

MTD 738-0269

Shld. Bolt .500" Dia. x .295"

$

$

Not available

21

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 12

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

24

MTD 14845

Grass Catcher Lock Lever w/ Knob

$

$

Not available

25

MTD 14582

Grass Catcher Lower Frame Ass'y.

Variations

MTD 14582-0637

No Longer Available FRAME-LOWE - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 17

0

28

MTD 731-0430

Plastic Roller

$

$

Not available

29

MTD 731-0564

Plug

$

$

Not available

30

MTD 732-0357

Extension Spring
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

31

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

33

MTD 13407

Chute Door

$

$

Not available

34

MTD 14012

Grass Catcher Hitch Brkt.

$

$

Not available

MTD 14585

Rear Deck Section

$

$

Currently unavailable

36

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

37

MTD 710-0703

Carr. Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

38

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

39

MTD 712-0271

Sems Nuts 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

40

MTD 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

41

MTD 732-0346

Torsion Spring

$

$

Not available

42

MTD 736-0211

Fl-Wash. .285" I.D. x 1.25"O.D.

$6.99

$

In Stock, only 3 left!

0

43

MTD 736-0270

Bell-Wash. 1/4" I.D. x .88"O.D.

$3.99

$

In Stock, Qty 20+

0

44

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

45

MTD 738-0386

Hinge Pin

$

$

Not available

46

MTD 750-0218

Spacer
(Superseded to 950-0218)

$

$

Not available

47

MTD 14586

Rear Baffle

$

$

Currently unavailable

48

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

49

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

50

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

51

MTD 15549

Adapter Plate

$

$

Not available

52

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0901

Hex Wash. Hd. F-Tap Scr. #10-32 x .314" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

54

MTD 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 13

0

55

MTD 712-0298

Hex Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

56

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

57

MTD 736-0206

Fl-Wash. 3/8 I.D. x 1.0" O.D.
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

58

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

59

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

60

MTD 725-0898

Control w/Cord

$

$

Currently unavailable

61

MTD 725-0899

Restraint

$

$

Not available

62

MTD 725-0908

Cord Restraint

$

$

Not available

63

MTD 714-0104

Inter. Cot-Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

64

MTD 726-0223

Cable Tie

$

$

Not available

65

MTD 710-0671

Curve Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

66

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

67

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

68

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

69

MTD 738-0102

Shld. Bolt .498" Dia. x 1.450"

$9.99

$

In Stock, Qty 10

0

70

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

71

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

72

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

73

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

74

MTD 736-0242

Bell-Wash. .345" I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

75

MTD 753-0351

Blade Adapter Kit

$

$

Not available

76

MTD 749-0278

Grass Catcher Upper Frame

$

$

Not available

77

MTD 764-0171

Grass Bag
(Superseded to 964-0171B)

$

$

Not available

78

MTD 710-0725

Truss Mach. AB-Tap Scr.

$

$

Currently unavailable
